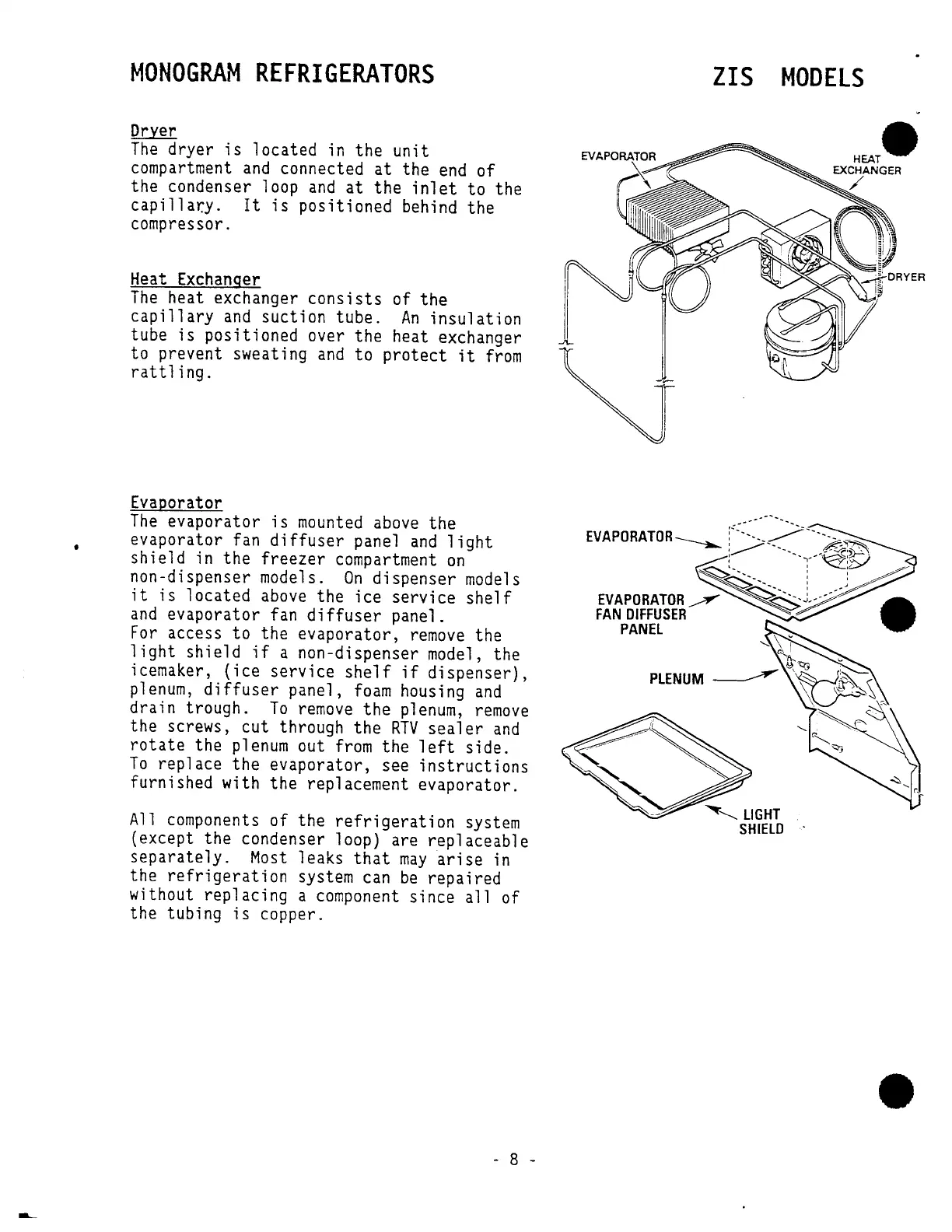

MONOGRAM REFRIGERATORS
Dryer
The dryer is located in the unit
compartment and connected at the end of
the condenser loop
and at the inlet to the
capillary. It is positioned behind the
compressor.
Heat Exchanger
The heat exchanger consists of the
capillary and suction tube. An insulation
tube is positioned over the heat exchanger
to prevent sweating
and to protect it from
rattling.
Evaporator
The evaporator is mounted above the
evaporator fan
diffuser panel and light
shield in the freezer compartment on
non-dispenser models. On dispenser models
it is located above the ice service shelf
and evaporator fan diffuser panel.
For access to the evaporator, remove the
light shield if a non-dispenser model, the
icemaker,
(ice service shelf if dispenser),
plenum, diffuser panel, foam housing and
drain trough. To remove the plenum, remove
the screws, cut through the RTV sealer and
rotate the plenum out from the left side.
To replace the evaporator, see instructions
furnished with the replacement evaporator.
All components of the refrigeration system
(except the condenser loop) are replaceable
separately. Most leaks that may arise in
the
refrigeration system can be repaired
without replacing a
component since all of
the tubing
is copper.
- 8 -
ZIS MODELS
HEAT-
EXCHANGER
/
RVER
EVAPORATOR~ !<:--_?---~~
:-- ---- ----<.f:''P~
<""'...'- ;-~~' ~
~-- "~
.......... : ~
EVAPORATOR ~ -----J& _
FAN DIFFUSER
PANEl
-
