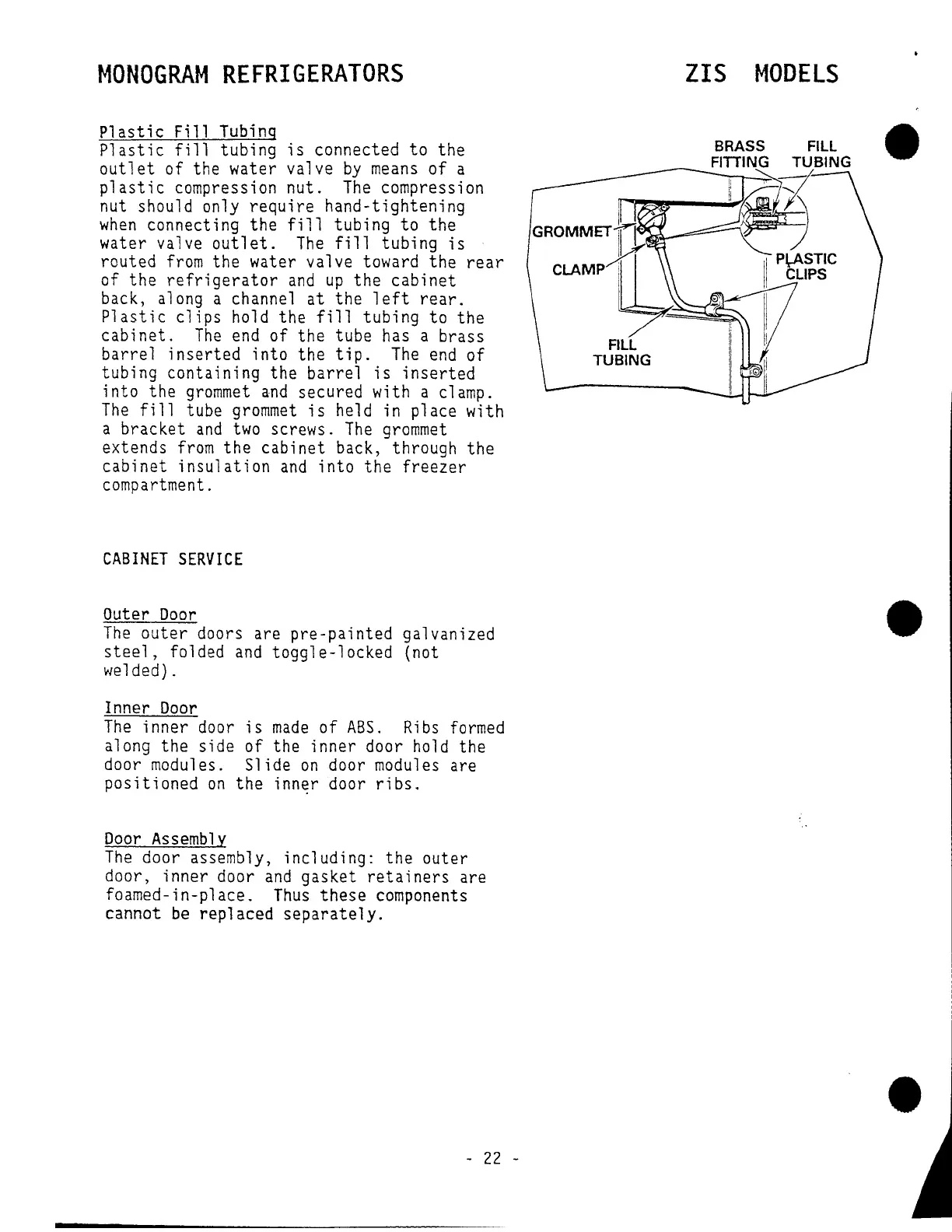

MONOGRAM REFRIGERATORS
Plastic Fill Tubing
Plastic fill tubing is connected to the
outlet of the water valve by means of a
plastic compression nut. The compression
nut should only
require hand-tightening
when connecting the fill tubing to the
water valve
outlet. The fill tubing is
routed from the water valve toward the rear
of the refrigerator and up the cabinet
back, along a channel at the left rear.
Plastic clips hold the fill tubing to the
cabinet. The end of the tube has a brass
barrel inserted into the tip. The end of
tubing containing the
barrel is inserted
into the grommet and secured with a clamp.
The fill tube grommet is held in place with
a bracket
and two screws. The grommet
extends from the cabinet back, through the
cabinet insulation and into the freezer
compartment.
CABINET SERVICE
Outer Door
The outer doors are pre-painted galvanized
steel, folded and toggle-locked (not
welded).
Inner
Door
The inner door
along the side
door modules.
positioned on
Door Assembly
is made of ABS. Ribs formed
of the inner door hold the
Slide
on door modules are
the inner door
ribs.
The door assembly, including: the outer
door, inner door
and gasket retainers are
foamed-in-place.
Thus these components
cannot
be replaced separately.
- 22 -
ZIS MODELS
FILL
•
•
•
