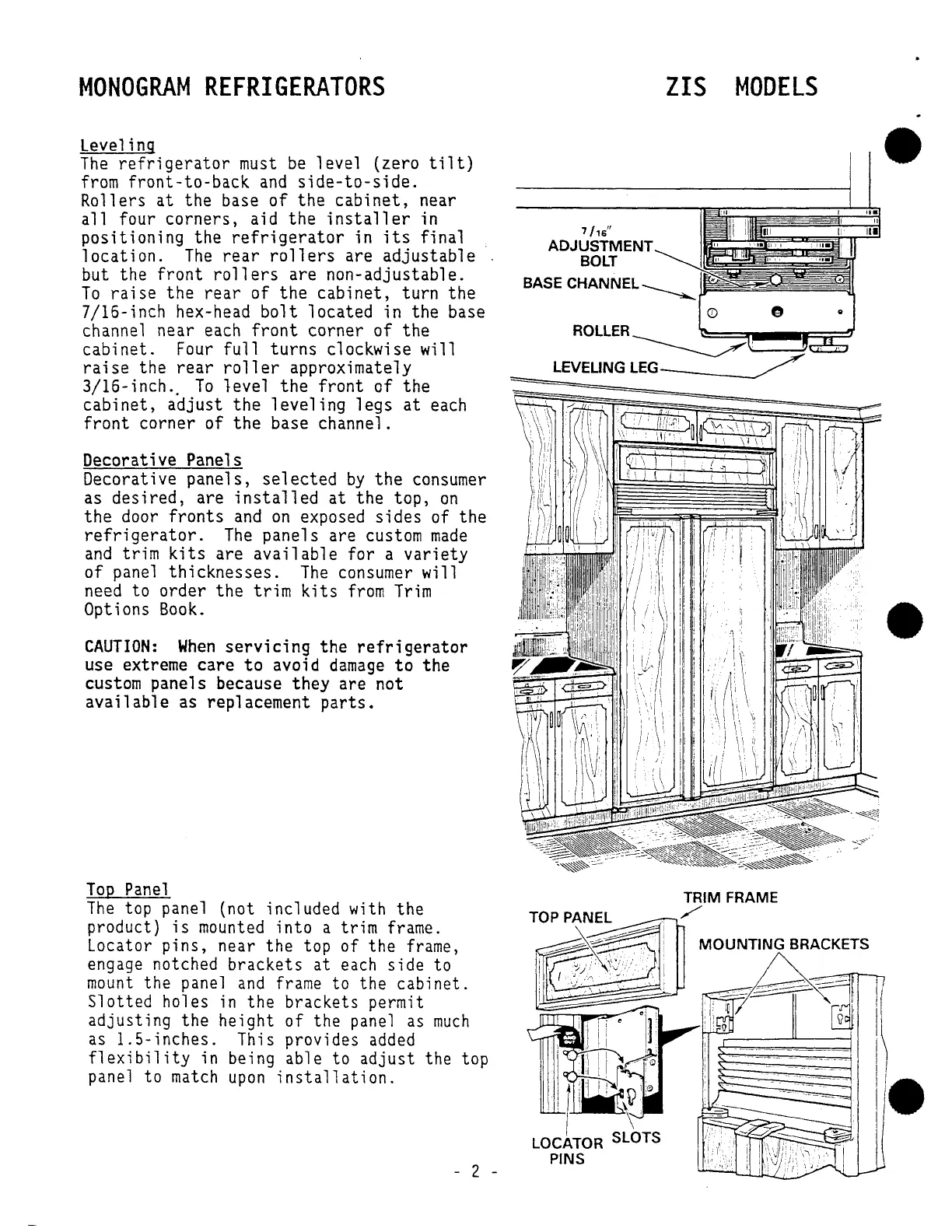

MONOGRAM REFRIGERATORS
Leveling
The refrigerator must be level (zero tilt)
from front-to-back and side-to-side.
Rollers at the base of the cabinet, near
all four corners, aid the installer in
positioning the refrigerator in its final
location. The rear rollers are adjustable
but the front rollers are non-adjustable.
To raise the rear of the cabinet, turn the
7/16-inch hex-head
bolt located in the base
channel near each
front corner of the
cabinet. Four full turns clockwise will
raise the rear roller approximately
3/16-inch.,
To 1evel the front of the
cabinet, adjust the leveling legs at each
front corner of the base channel.
Decorative Panels
Decorative panels,
selected by the consumer
as desired, are installed at the top, on
the door fronts and on exposed sides of the
refrigerator. The panels are custom made
and trim kits are available for a variety
of panel thicknesses. The consumer will
need to order the
trim kits from Trim
Options Book.
CAUTION: When servlclng the refrigerator
use extreme care to avoid damage to the
custom panels because they are not
available as replacement parts.
Top Panel
The top panel (not i ncl uded with the
product)
is mounted into a trim frame.
Locator
pins, near the top of the frame,
engage notched brackets
at each side to
mount the panel and frame to the cabinet.
Slotted holes in the brackets permit
adjusting the height
of the panel as much
as 1.5-inches. This provides added
flexibility in being able to adjust the top
panel to
match upon installation.
- 2 -
7/16"
ADJUSTMENT
BOLT
ZIS MODELS
BASE CHANNEL~
ROLLER
LEVELING LEG ____ ./'
TRIM FRAME
/'
•
•
