MONOGRAM
REFRIGERATORS

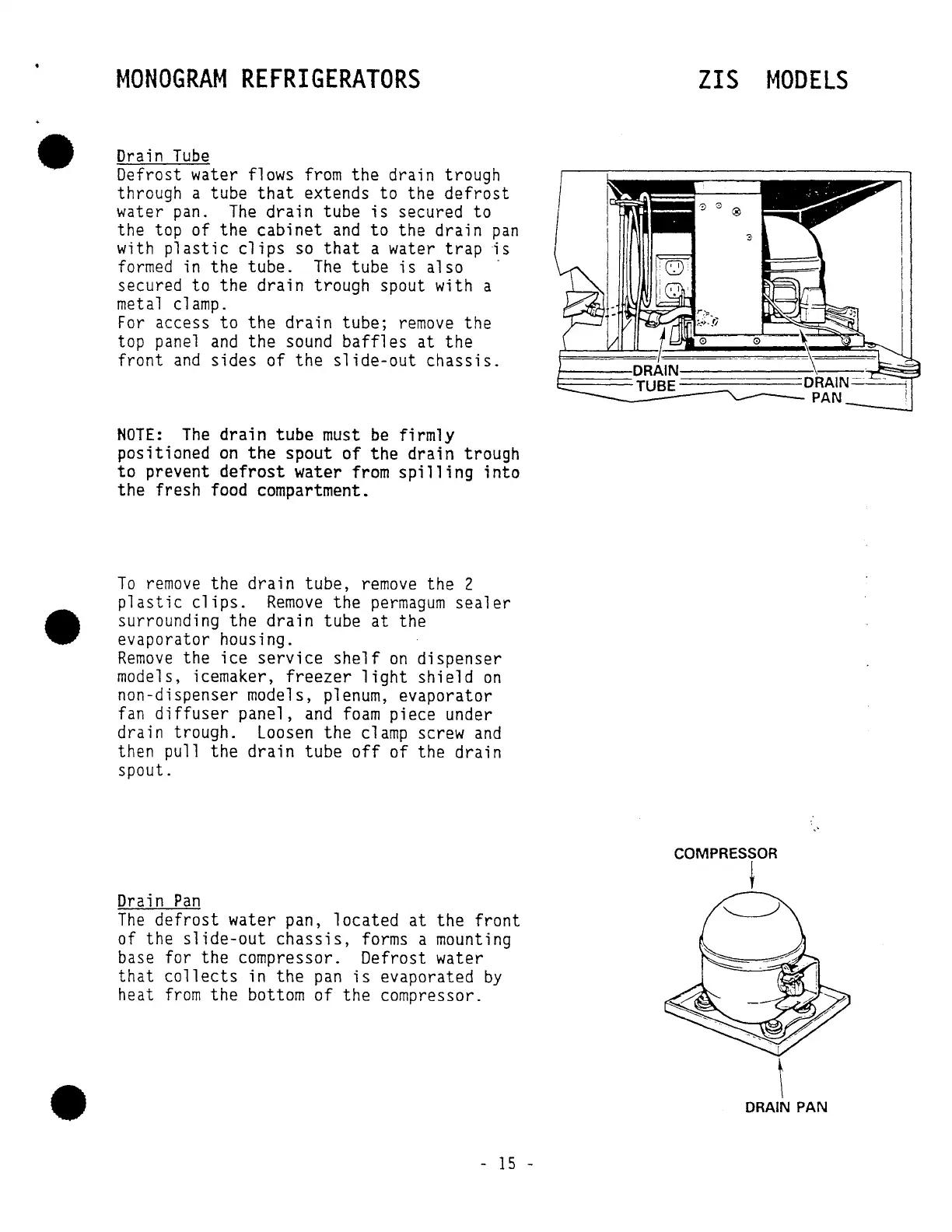

Drain
Tube
Defrost water flows
from
the drain trough
through a tube
that
extends to the
defrost
water pan.
The
drain
tube
is
secured
to
the top of the
cabinet
and
to
the
drain
pan
with
plastic
clips
so
that
a water
trap
is
formed
in the tube.
The
tube
is
also -
secured to the
drain
trough spout with a
metal clamp.
For
access
to
the
drain
tube;
remove
the
top panel
and
the sound
baffles
at
the
front
and
sides
of
the
slide-out
chassis.
NOTE:
The
drain
tube
must
be
firmly
positioned
on
the
spout
of
the
drain
trough
to
prevent
defrost
water
from
spilling
into
the
fresh food compartment.
To
remove
the
drain
tube,
remove
the 2
plastic
clips.
Remove
the
permagum
sealer
surrounding the
drain
tube
at
the
evaporator housing.
Remove
the
ice
service
shelf
on
dispenser
models, icemaker,
freezer
light
shield
on
non-dispenser models, plenum, evaporator
fan
diffuser
panel,
and
foam
piece under
drain trough.
Loosen
the
clamp
screw
and
then pull the
drain
tube
off
of the
drain
spout.
Drain
Pan
The
defrost
water pan,
located
at
the
front
of the
slide-out
chassis,
forms a mounting
base for the compressor. Defrost water
that
collects
in the
pan
is
evaporated
by
heat
from
the bottom of the compressor .
-
15
-
ZIS
MODELS
COMPRESSOR
t
DRAIN PAN
