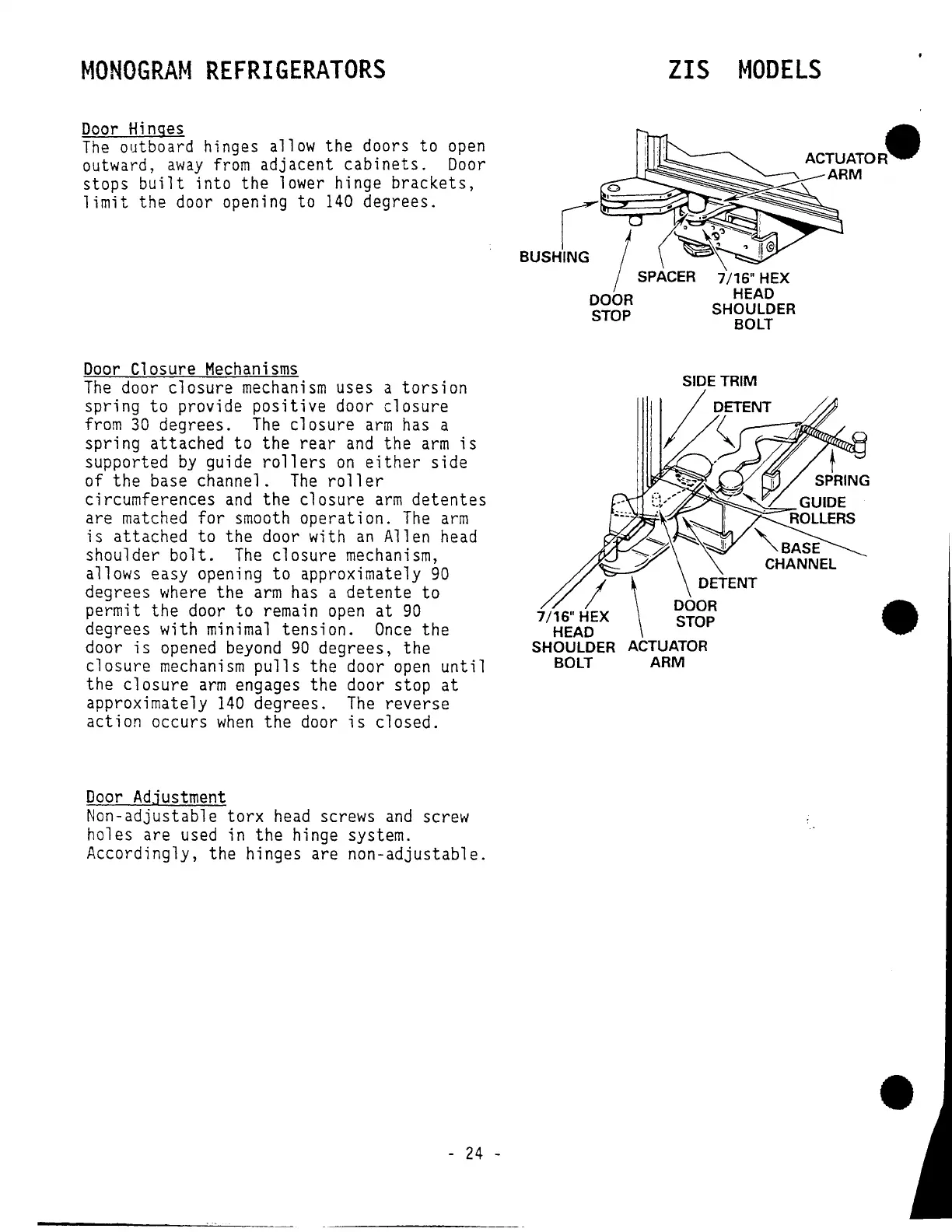

MONOGRAM
REFRIGERATORS
Door
Hinges
The
outboard hinges allow the doors
to
open
outward,
away
from
adjacent
cabinets.
Door
stops
built
into the lower hinge
brackets,
limit
the door opening to
140
degrees.
Door
Closure
Mechanisms
The
door closure
mechanism
uses a
torsion
spring
to
provide
positive
door
closure
from
30
degrees.
The
closure
arm
has a
spring attached
to
the
rear
and
the
arm
is
supported
by
guide
rollers
on
either
side
of the base channel.
The
roller
circumferences
and
the closure
arm
detentes
are matched
for
smooth
operation.
The
arm
is
attached
to
the door with
an
Allen
head
shoulder
bolt.
The
closure mechanism,
allows easy opening
to
approximately
90
degrees
where
the
arm
has
a
detente
to
permit the door
to
remain
open
at
90
degrees with
minimal
tension.
Once
the
door
is
opened
beyond
90
degrees, the
closure
mechanism
pulls
the door
open
until
the
closure
arm
engages the door stop
at
approximately
140
degrees.
The
reverse
action occurs
when
the door
is
closed.
Door
Adjustment
Non-adjustable
torx
head
screws
and
screw
holes are used in the hinge system.
Accordingly, the hinges are non-adjustable.
-
24
-
ZIS
MODELS
r
,"
/
-x:-
'~y
-=
:
BUSHING \
~\
Ili@
SPACER
7/16"
HEX
HEAD
DOOR SHOULDER
STOP BOLT
ACTUATOR
ARM
ACTUATORe
ARM
e
