GE Monogram ZIS36 User Manual

•
•
•
MONOGRAM REFRIGERATORS
Door Handles and Trim
The refrigerator is delivered with door
handles attached
which also serve as trim
for custom panels.
End caps on each end of
the handle must be removed prior to
removing the handle.
The handle is held in
place with 6 screws.
Care must be taken
when removing the handles to prevent
scratches. Some panels that are installed
on the front of the doors are anchored to
the door side trim with wood screws driven
through the
outer door edge trims into the
back of the panels. If door panels must be
removed, first open the door and remove the
screws
from the outer door edge trim.
Then, remove the handle end caps and door
handles.
Door Shelves/Modules
The door shelves/modules are assembled from
three molded parts. The sides of the
modules are snapped into place and provide
the
means necessary for height adjustment.
Right
and left sections are positioned on
the base piece and are sonic welded for
rigidity. The assembled module can be
adjusted 1 1/2 inches by selecting the
mounting notch provided
in the module.
Small extrusions in the inner door ridges
mate with indentions in the module to
provide a positive fit.
Door Gaskets
The door gaskets are press-fitted into
retainer channels at all 4 sides of each
inner door.
To remove the gasket, simply
grasp
it at one corner and pull it from the
retainer channel. To ease the installation
of a replacement gasket, rub paraffin wax
into the groove of the retainer channel.
Position the replacement gasket
on the
inner door
and beginning approximately
6-inches
from one corner, press the gasket
rib firmly into the retainer channel.
Installation of the gasket is easier if
heat is applied to the back of the gasket
while
it is being pressed into the retainer
channel .

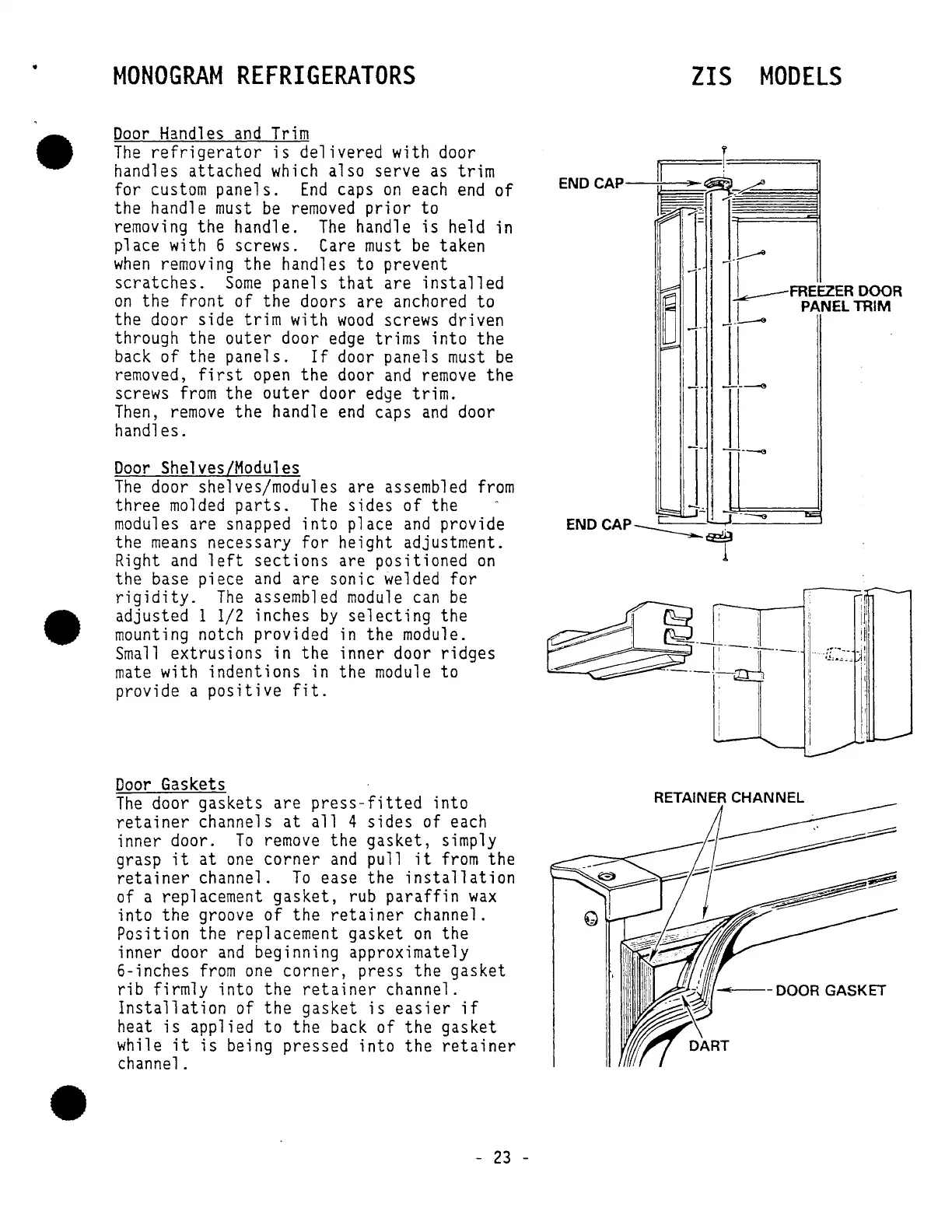

- 23 -
ZIS MODELS
END CAP- Ffl = .. =:...t;;=~~
.~f~
~I= I~
i L
k:;;'~ I ~- -L-FREEZER DOOR
I I PANEL TRIM
1-- --~
~!
i
-- --~
1-- ---......
=
END CAP ______ ~
RETAINER CHANNEL
;~
---."'&::::'-/ ~~
~
'----DOOR GASKET
