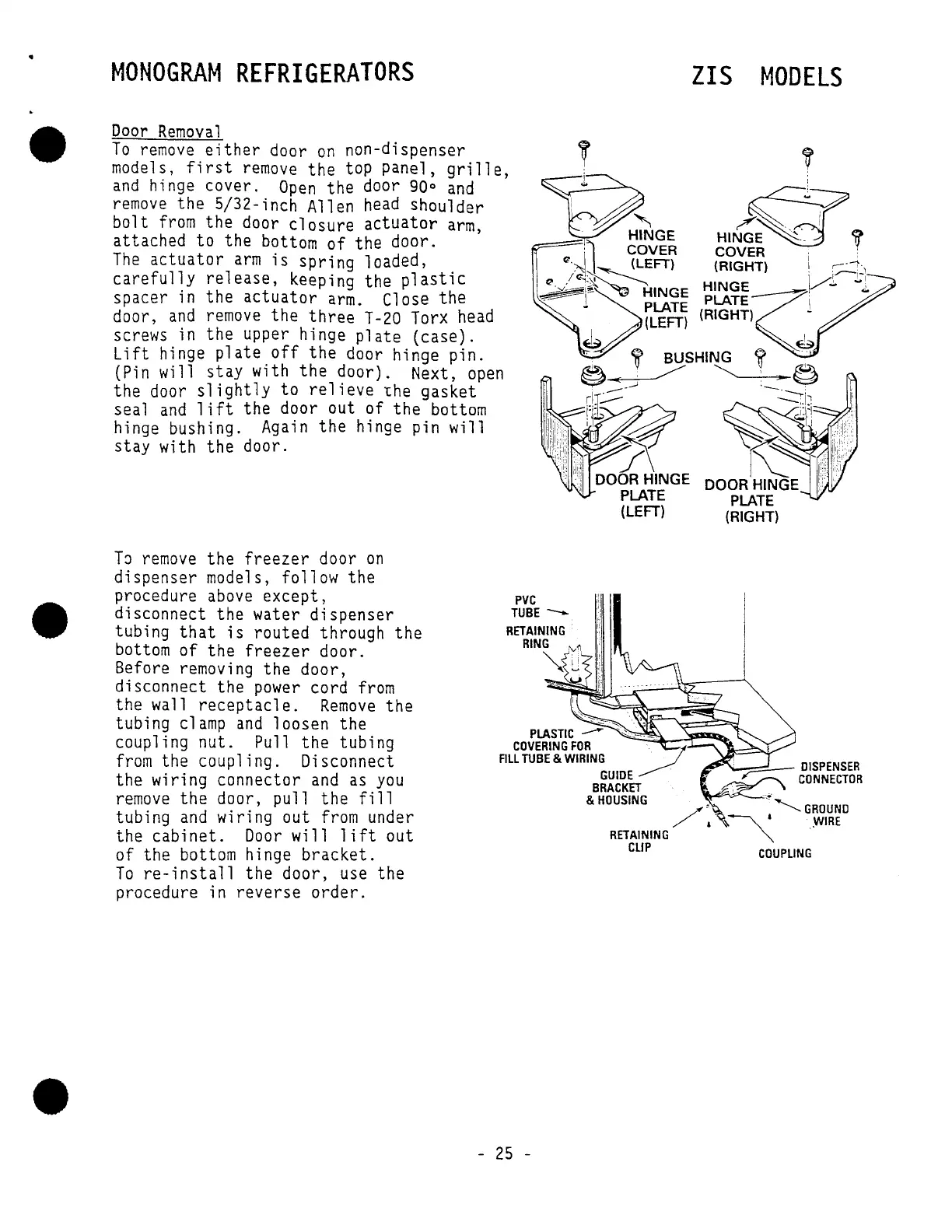

MONOGRAM REFRIGERATORS
Door Removal
To remove either door on non-dispenser
models,
first remove the top panel, grille,
and hinge cover. Open the door 90
0
and
remove the 5/32-inch Allen head shoulder
bolt from the door closure actuator arm,
attached to the bottom of the door.
The actuator arm ;s spring loaded,
carefully release, keeping the plastic
spacer in the actuator arm. Close the
door,
and remove the three T-20 Torx head
screws in the upper hinge plate (case).
Lift hinge plate off the door hinge pin.
(Pi n wi 11 stay with the door). Next, open
the door slightly to relieve the gasket
seal
and lift the door out of the bottom
hinge bushing. Again the hinge pin will
stay with the door.
PVC
TUBE -...
/\
DOOR HINGE
PLATE
(LEFT)
ZIS MODELS
T~ remove the freezer door on
dispenser models, follow the
procedure
above except,
disconnect the water dispenser
tubing
that is routed through the
bottom of the freezer door.
Before
removing the door,
disconnect the
power cord from
the wall receptacle. Remove the
tubing clamp and loosen the
coupling nut. Pull the tubing
from the coupling. Disconnect
the wiring connector
and as you
remove the door, pull the fill
tubing and wiring out from under
the
cabinet. Door will lift out
of the bottom hinge
bracket.
RETAINING
To re-install the door, use the
procedure in reverse
order.
RING v
~0
~.'"".~.", ,
PLASTIC ---- '~--c:;.;- . .::;;-~--",_~
COVERING FOR .. "-I M=:=..J,/
FILL TUBE & WIRING ~ . -==- DISPENSER
GUIDE F - CONNECTOR
BRACKET
& HOUSING , ..... ~ GROUND
/, ~~'
RETAINING "'-
CUP COUPUNG
.WIRE
- 25 -
