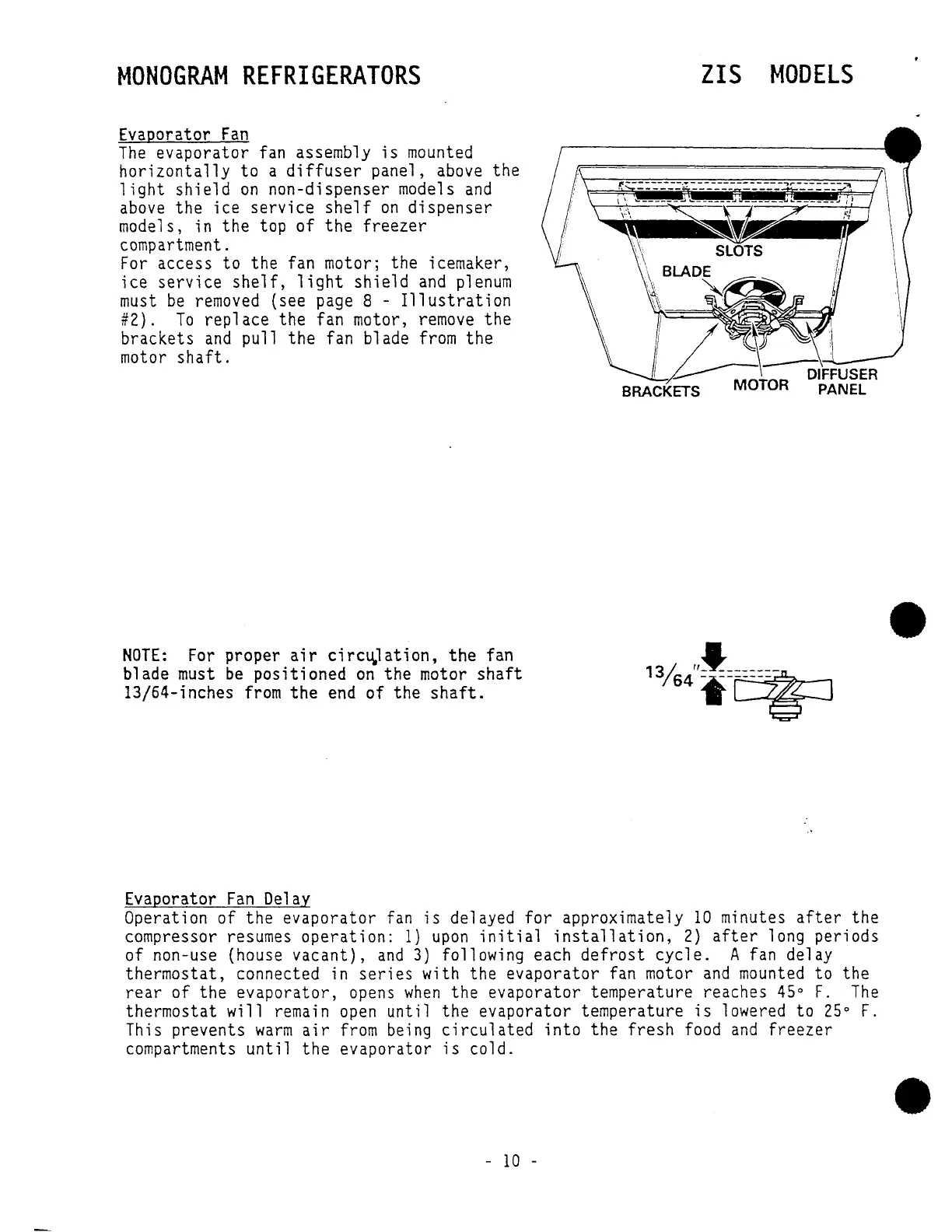

Evaporator Fan
The evaporator fan assembly is mounted
horizontally to a diffuser panel, above the
light shield on non-dispenser models and
above the ice service shelf on dispenser
models, in the top
of the freezer
compartment.
For access to the fan motor; the icemaker,
ice
service shelf, light shield and plenum
must be removed (see page 8 - Illustration
#2). To replace the fan motor, remove the
brackets
and pull the fan blade from the
motor
shaft.
NOTE: For proper air circ~lation, the fan
blade
must be positioned on the motor shaft
13/64-inches from the end of the shaft.
Evaporator Fan Delay
ZIS MODELS
Operation of the evaporator fan is delayed for approximately 10 minutes after the
compressor resumes
operation: 1) upon initial installation, 2) after long periods
of non-use (house
vacant), and 3) following each defrost cycle. A fan delay
thermostat, connected in
series with the evaporator fan motor and mounted to the
rear of the evaporator, opens when the evaporator temperature reaches 45
0
F. The
thermostat will remain open until the evaporator temperature is lowered to 25
0
F.
This prevents warm air from being circulated into the fresh food and freezer
compartments until the evaporator is cold.
-
