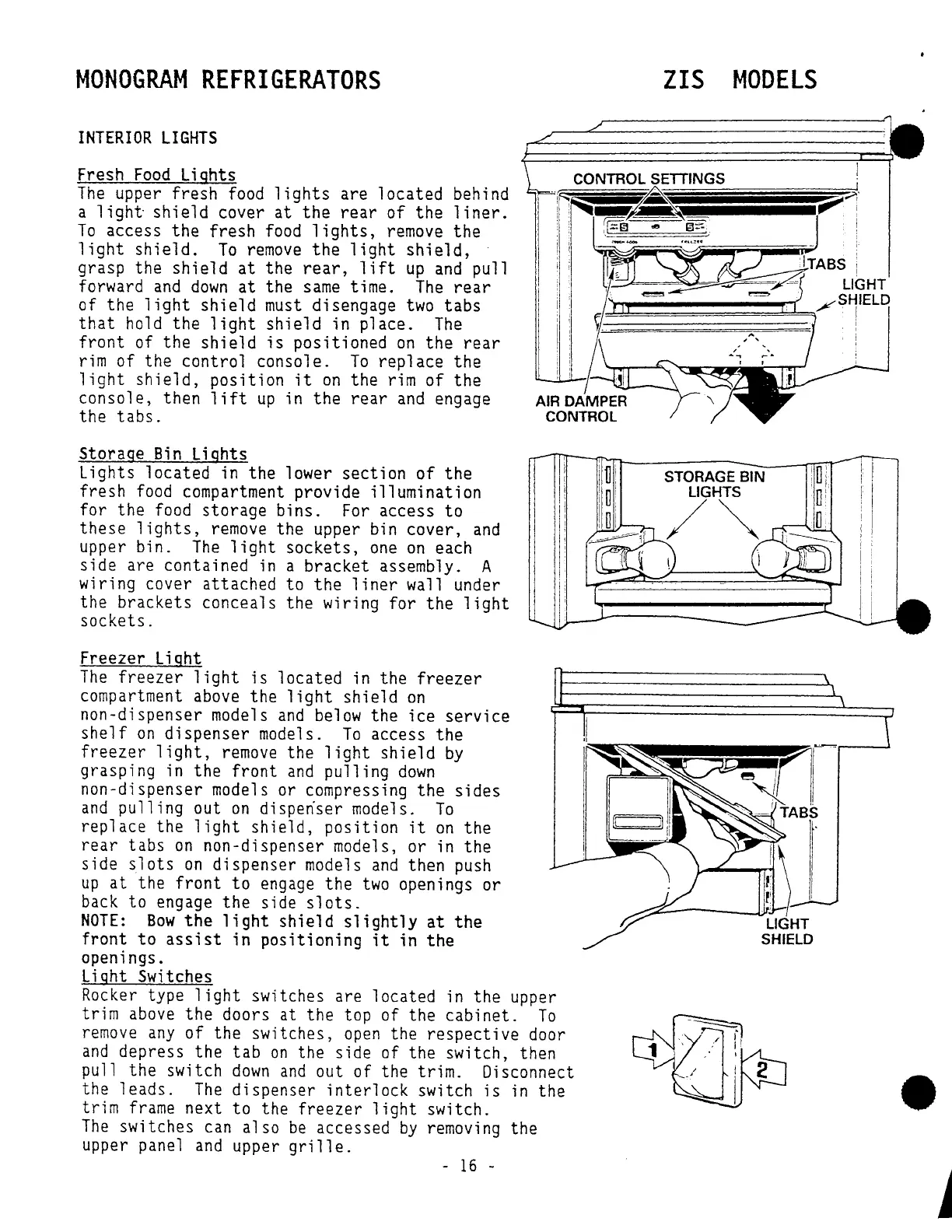

MONOGRAM
REFRIGERATORS
ZIS
MODELS
INTERIOR
LIGHTS
Fresh
Food
lights
CONTROL
The
upper fresh
food
lights
are
located
behind
a
light
shield
cover
at
the
rear
of
the
liner.
To
access the fresh
food
lights,
remove
the
light
shield.
To
remove
the
light
shield,
grasp the
shield
at
the
rear,
lift
up
and
pull
forward
and
down
at
the
same
time.
The
rear
of the
light
shield
must
disengage
two
tabs
that
hold the
light
shield
in place.
The
front
of the
shield
is
positioned
on
the
rear
rim
of the control console.
To
replace the
light
shield,
position
it
on
the rim
of
the
console, then
lift
up
in the
rear
and
engage
the
tabs.
Storage
Bin
lights
Lights located in the lower
section
of
the
fresh
food
compartment provide
illumination
for
the food storage bins.
For
access
to
these
lights,
remove
the upper bin cover,
and
upper bin.
The
light
sockets,
one
on
each
side
are contained
in
a bracket assembly. A
wiring cover attached to
the
liner
wall under
the brackets conceals the wiring
for
the
light
sockets.
Freezer Light
The
freezer
light
is
located in the
freezer
compartment
above
the
light
shield
on
non-dispenser models
and
below
the ice
service
shelf
on
dispenser
models.
To
access the
freezer
light,
remove
the
light
shield
by
grasping in the
front
and
pulling
down
non-dispenser models or compressing the
sides
and
pulling
out
on
disperiser models.
To
replace the
light
shield,
position
it
on
the
rear
tabs
on
non-dispenser models, or in the
side
slots
on
dispenser models
and
then
push
up
at
the
front
to
engage
the
two
openings or
back
to
engage
the
side
slots.
NOTE:
Bow
the
light
shield
slightly
at
the
front
to
assist
in
positioning
it
in the
openings.
Light Switches
Rocker
type
light
switches are located in the upper
trim
above
the
doors at the top of the
cabinet.
To
remove
any
of
the switches,
open
the
respective
door
and
depress
the
tab
on
the side of the switch, then
pull
the
switch
down
and
out of the trim. Disconnect
the
leads.
The
dispenser
interlock
switch
is
in
the
trim frame next
to
the
freezer
light
switch.
The
switches
can
also
be
accessed
by
removing
the
upper panel
and
upper
grille.
-
16
-
ABS r
LIGHT
i~~~~~~~~~~~/S~IELD
STORAGE BIN
LIGHTS
/~
..
~n~·-
_I
TABS
•
