GEK-113285A G650 Generator Protection & Control System 6-45
6 ACTUAL VALUES 6.5 RECORDS
6
6.5.1.2 NEW SNAPSHOT EVENTS
Actual > Records > Event Recorder > New Snapshot Events
This screen shows new Snapshot events, updated since the last time that this menu was accessed; there are three
possible ways to access new events; in local mode (COM2-HMI), remote mode (COM1) and via Ethernet (COM3).
It is the same type of screen as shown on all snapshot event retrieval.
6.5.1.3 CONTROL EVENTS
Actual > Records > Event Recorder > Control Events
This screen is identical to the previous ones. The difference is that this screen will display only control events, i.e., those
events configured in section "Setpoint > Relay Configuration > Events". There are a total of 128 configurable events and
64 non-configurable switchgear events.
In this screen, red or black color for a specific event indicates whether it is activated (to 1) or in standby (to 0)

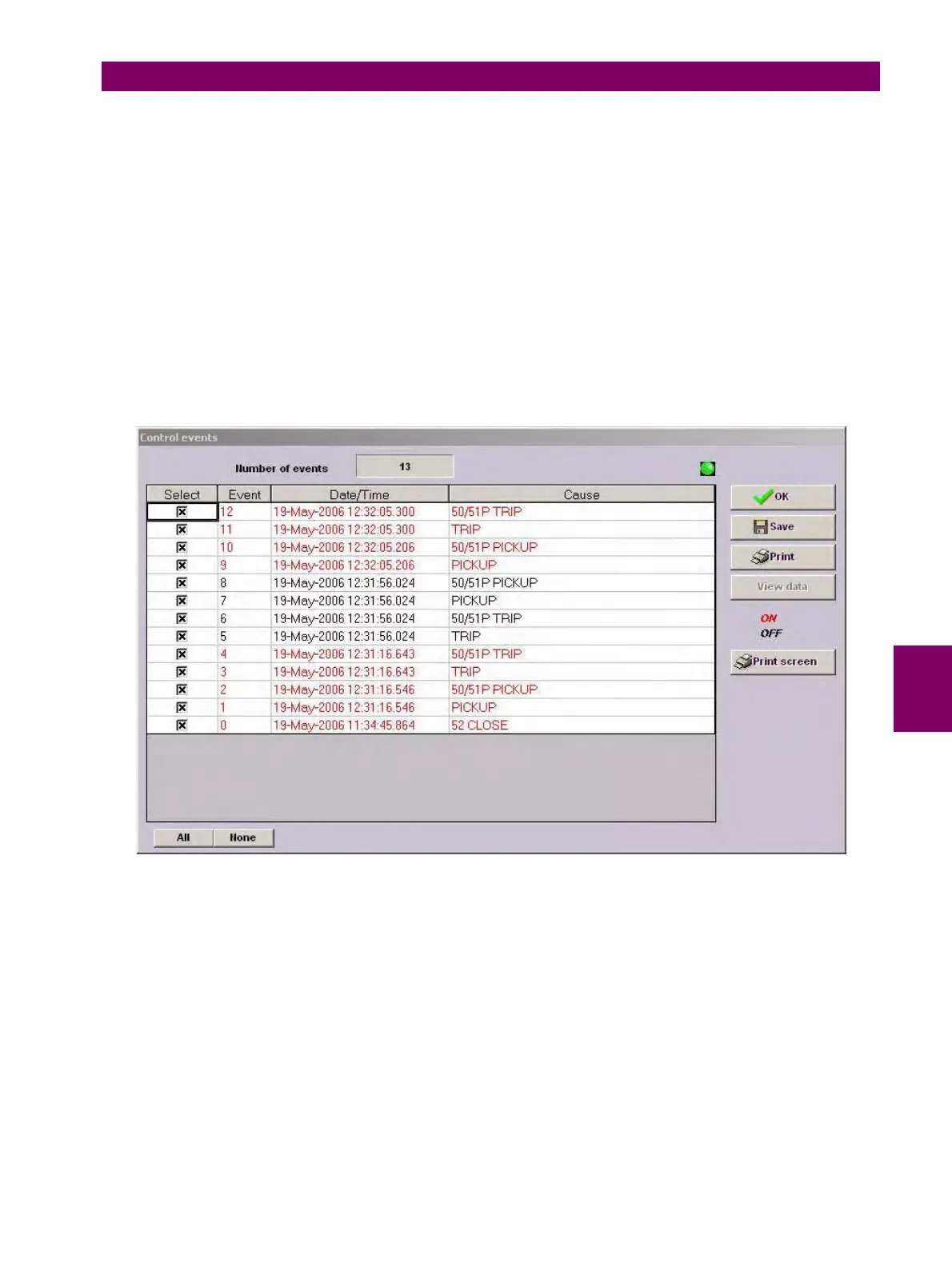

Figure 6–6: CONTROL EVENTS
