GEK-113285A G650 Generator Protection & Control System 4-21
4 HUMAN INTERFACES. SETTINGS & ACTUAL VALUES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4
The following figures show an example of the default factory configuration for G650:

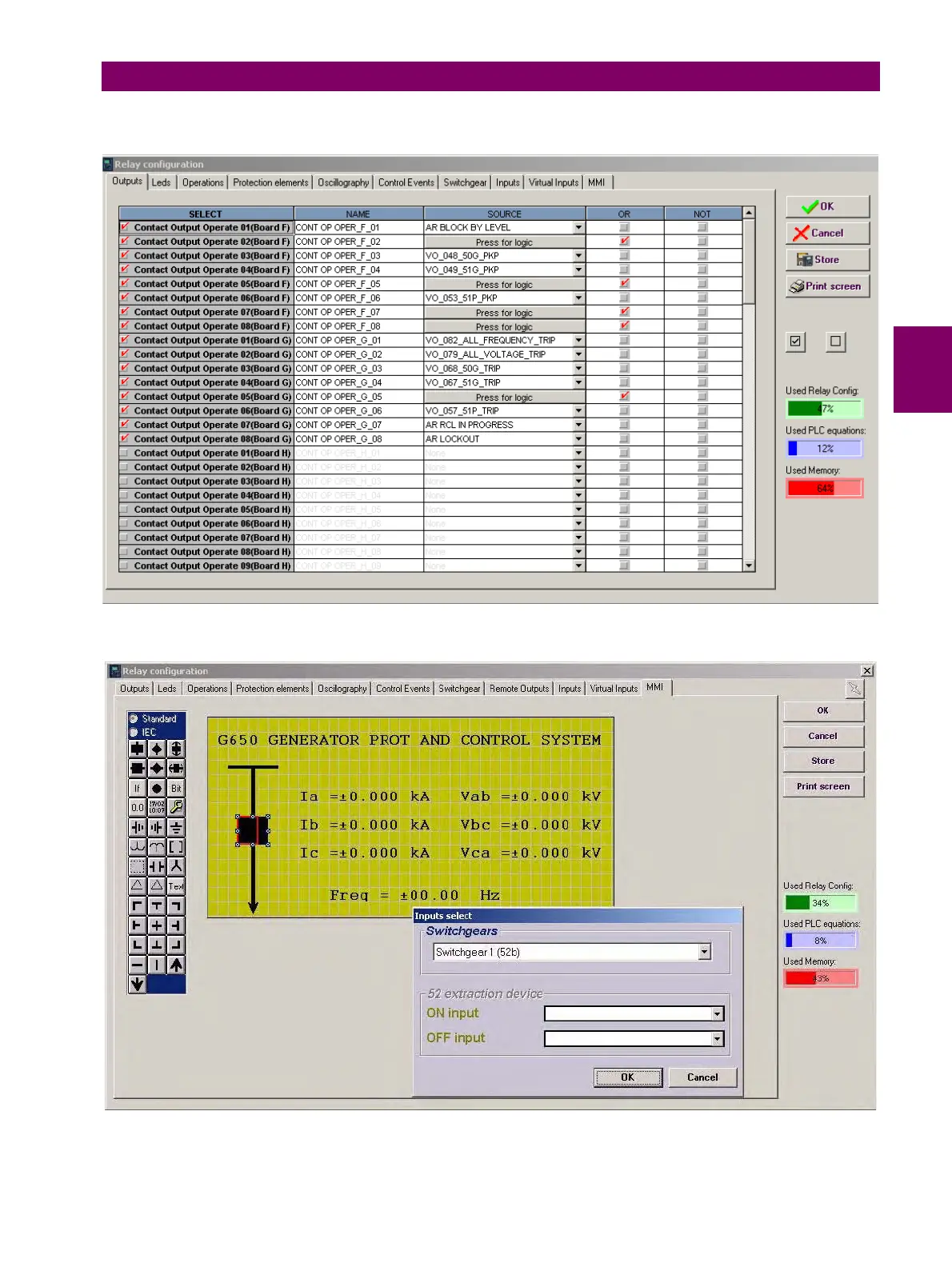

Figure 4–9: RELAY CONFIGURATION
