Chapter 13: Digital Detector
Optima XR220amx X-Ray System 54400222-1EN Rev 1 DRAFT 11092010 13-4
Operator Manual © 2010 General Electric Company. All rights reserved.

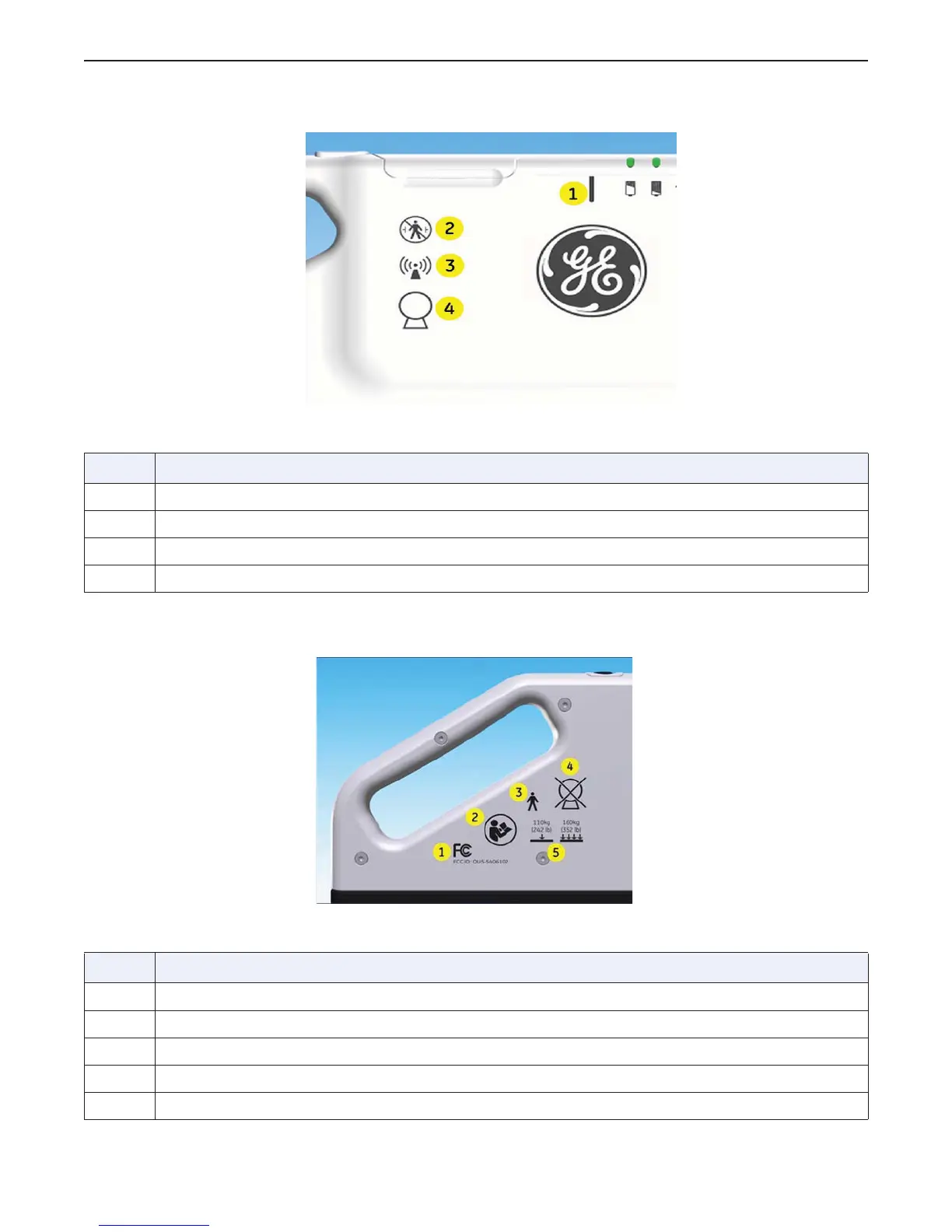

Figure 13-2 Labels on the Front of the Digital Detector
Table 13-2 Labels on the Front of the Digital Detector
Figure 13-3 Labels on the Back of the Digital Detector
Table 13-3 Labels on the Back of the Digital Detector
Item Description
1 Centerline
2 Do not defibrillate (IEC 5841 w/line)
3 RF transmitter (IEC 5140)
4 Ths side toward X-ray source (IEC 5338)
Item Description
1 FCC Approval and FCC ID Number (OU5-5406102)
2 Refer to Instructions (ISO 7010-M002)
3 Type B Applied Part (IEC 5840)
4 Do not X-ray this side (IEC 5338 with cross)
5 Maximum applied weight: 110kg (242 lb) concentrated; 160kg (352 lb) distributed
