Chapter 13: Digital Detector
Optima XR220amx X-Ray System 54400222-1EN Rev 1 DRAFT 11092010 13-6
Operator Manual © 2010 General Electric Company. All rights reserved.
Battery and Tether Connection
The battery and the tether plug share the same connector. Only one of these can be plugged in at a time.

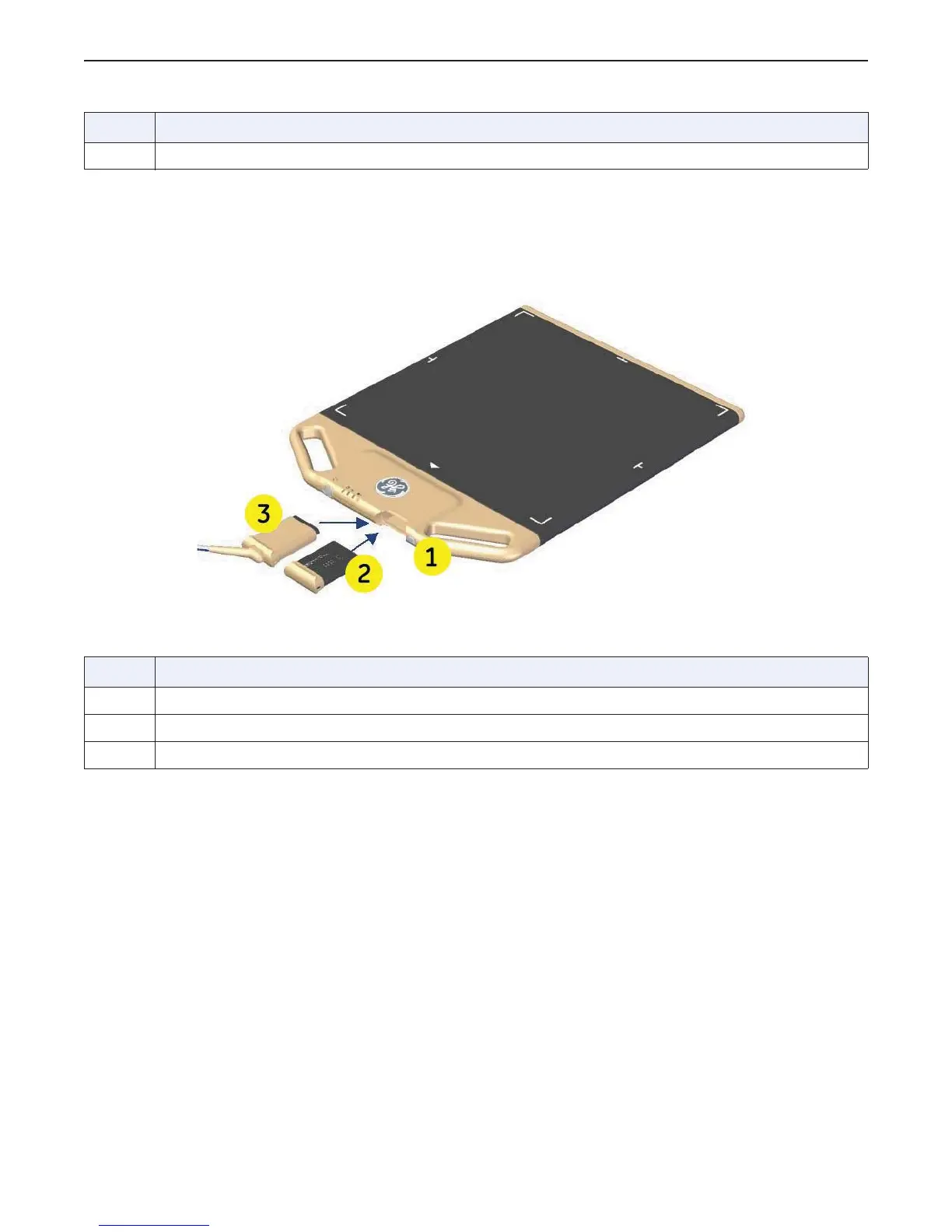

Figure 13-6 Detector Battery and Tether
Table 13-6 Detector Battery and Tether
Tether
Handling
To ensure maximum tether life, follow these guidelines:
x Treat the tether with care.
x Clean the tether regular with an approved chemical. Refer to for more information.
x Untwist the tether periodically. The colored stripe on the tether shows if it is twisted.
x Do not jerk or pull on the tether. For example, do not pull on the tether to free it from under a wheel
(especially if the tether is twisted).
x Do not step on the tether.
x Do not run over the tether with the unit, cart, table or other equipment.
x Do not use the tether as a handle.
5 Battery Latch
Item Description
1 Latch
2Battery
3Tether
Item Description
DRAFT REVIEW COPY
