5.3 CASE DIMENSIONS 80TE

413.2

177.00

222.00

407.10

30.00

240.00

INCL. WIRING

157.50 MAX

SIDE VIEW

SECONDARY COVER

(WHEN FITTED)

116.55 142.45

12 OFF HOLES

3.40

168.00

4.50

129.50155.40

408.90

62.00

159.00

74.95

FRONT VIEW

TERMINAL SCREWS : M4 X 7 BRASS CHEESE HEAD SCREWS WITH

LOCK WASHERS PROVIDED.

MOUNTING SCREW : M4 X 12 SEM UNIT STEEL THREAD

FORMING SCREW.

FLUSH MOUNTING PANEL

CUT-OUT DETAIL

E01410

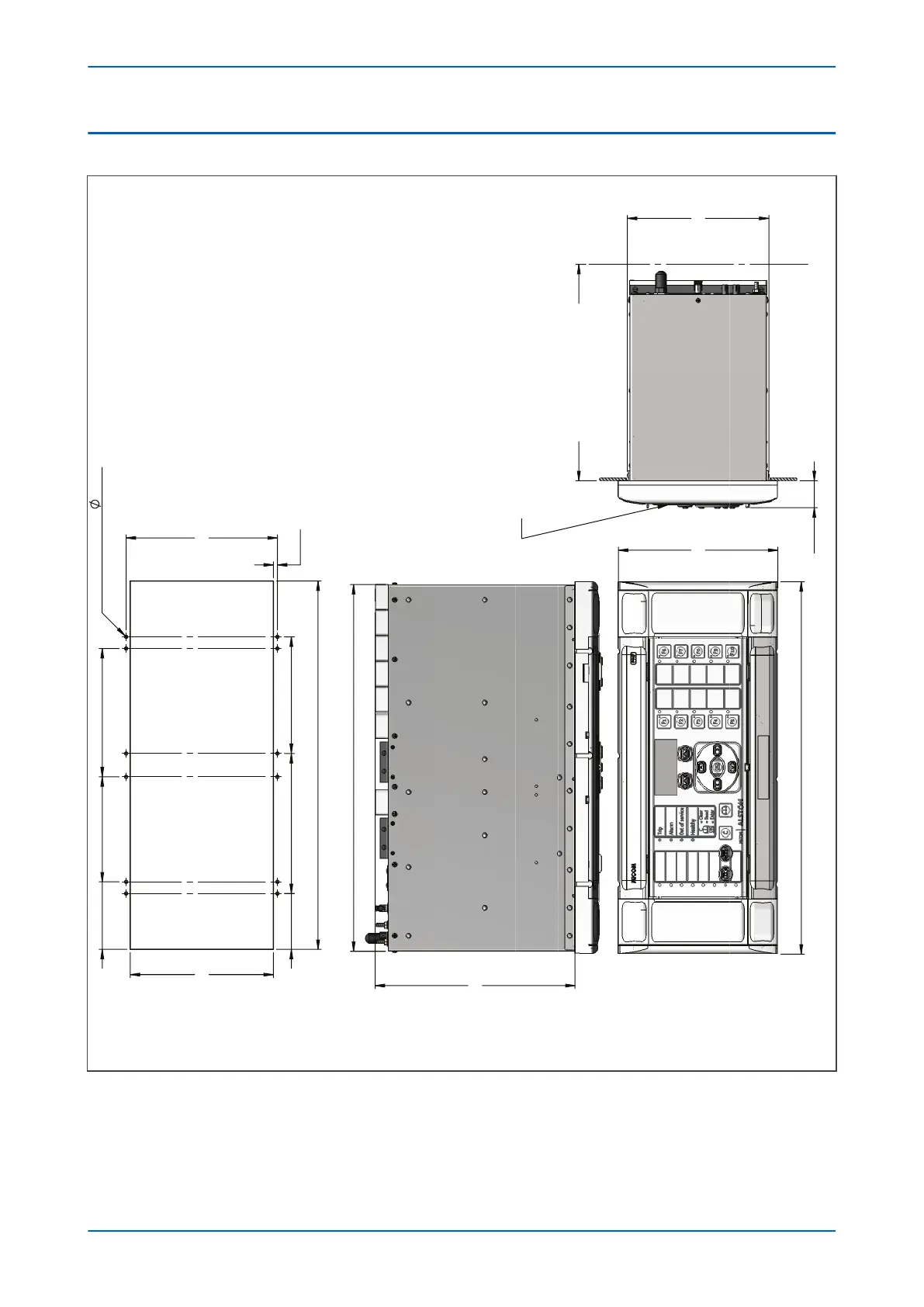

Figure 198: 80TE case dimensions

Chapter 19 - Installation P54A/B/C/E

444 P54xMED-TM-EN-1
