Installation Instructions
• Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
• Position the end of the elbow to face the bottom
dishwasher.
STEP 5 INSTALL 90° ELBOW
• Wrap 90° elbow with thread seal tape. Do not use
plumber's putty.
• Install a 90° elbow onto the water valve.

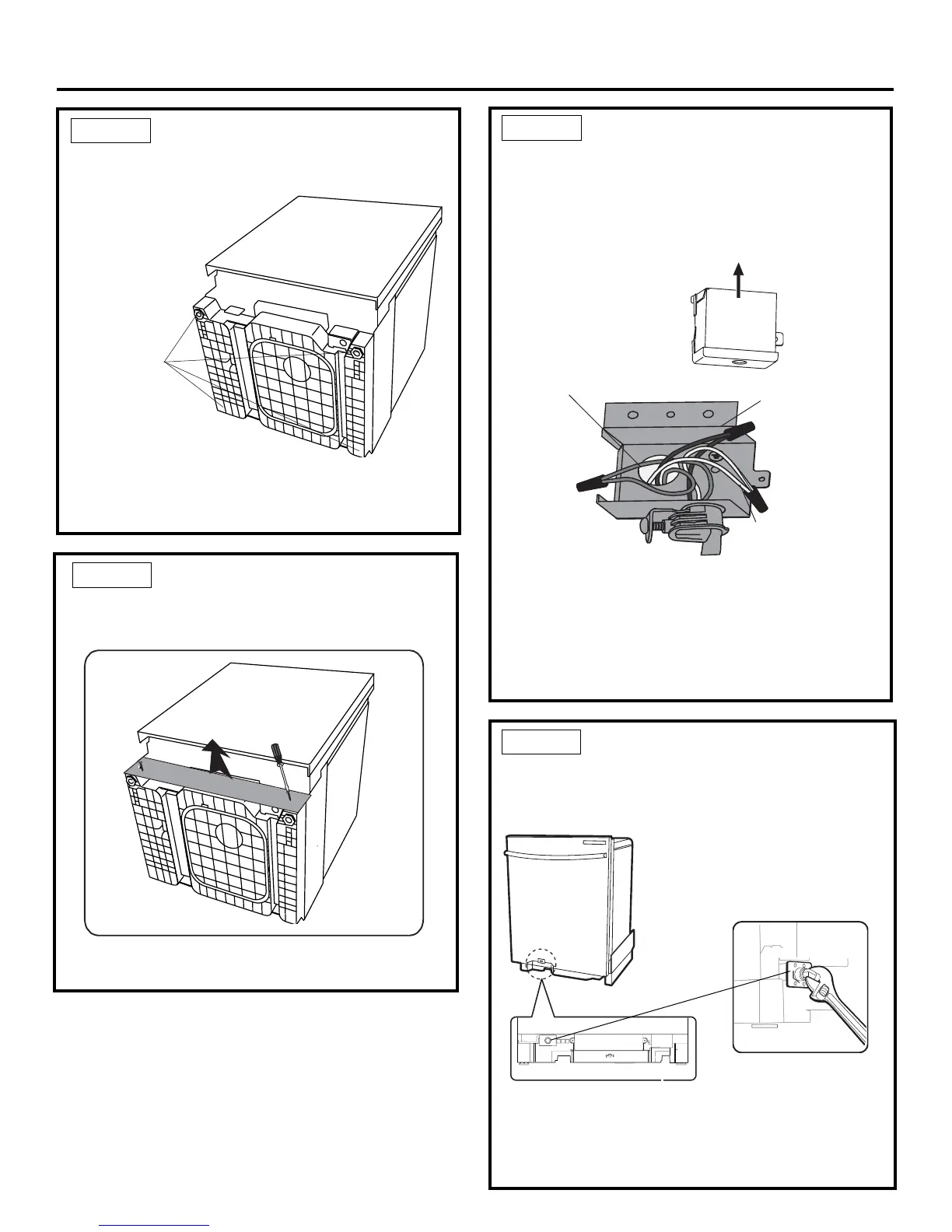

STEP 3 REMOVE TOEKICK
• Remove the 2 toekick screws. Lift off the piece
toekick.
• Measure installation height and dishwasher height.
Extend leveling legs out from the dishwasher base,
1/4" less than installation height.
STEP 2 ADJUST LEVELING LEGS
• Move the dishwasher close to the installation loca-
tion and lay it on its back.
STEP 4 INSTALL POWER CORD
Skip this step if dishwasher will be direct wired. Use
power cord kit WX09X70910 available for purchase from
an authorized GE ealer. The power cord and
connections must comply with
local codes and
ordinances.
• Recommended power cord length is 54" min. and
64" max.
Adjust
Installation
Height
• Connect incoming
power cord white (or ribbed)
to dishwasher white, black
(or smooth) to black and ground to dishwasher green
wire. Use UL listed wire nuts of appropriate size.
• Replace junction box cover. Be sure wires are not
pinched under the cover.
Green wire to Green wire ( Ground)
Black wire to Black wire ( Hot)
White wire to White wire ( Neutral)
parts d
cUL/
of the
right
1

GE PDT660SSFSS Specifications

General

Door color	Stainless steel
Control type	Touch
Built-in display	Yes
Appliance placement	Undercounter
Noise level	45 dB
Delay start (max)	9 h
Dishwashing programs	Auto, Glass/delicate, Eco, Normal, Pre-wash, Quick
Number of place settings	16 place settings
Number of washing programs	6
Current	9.9 A
AC input voltage	120 V
AC input frequency	60 Hz
Water consumption per cycle	- L
Energy consumption per cycle	- kWh
Annual energy consumption	249 kWh
Sustainability certificates	ENERGY STAR
Package weight	45360 g

Weight and Dimensions

Depth	609.6 mm
Width	603.3 mm
Height	847.7 mm
