Installation Instructions
The dishwasher must be secured to the countertop.
Position the dishwasher so that the tub flange aligns
with the front face of the cabinet frame.
IMPORTANT: Check to be sure the dishwasher is cen-
tered in the opening and there is no interference with
adjacent cabinets when opening or closing the door.

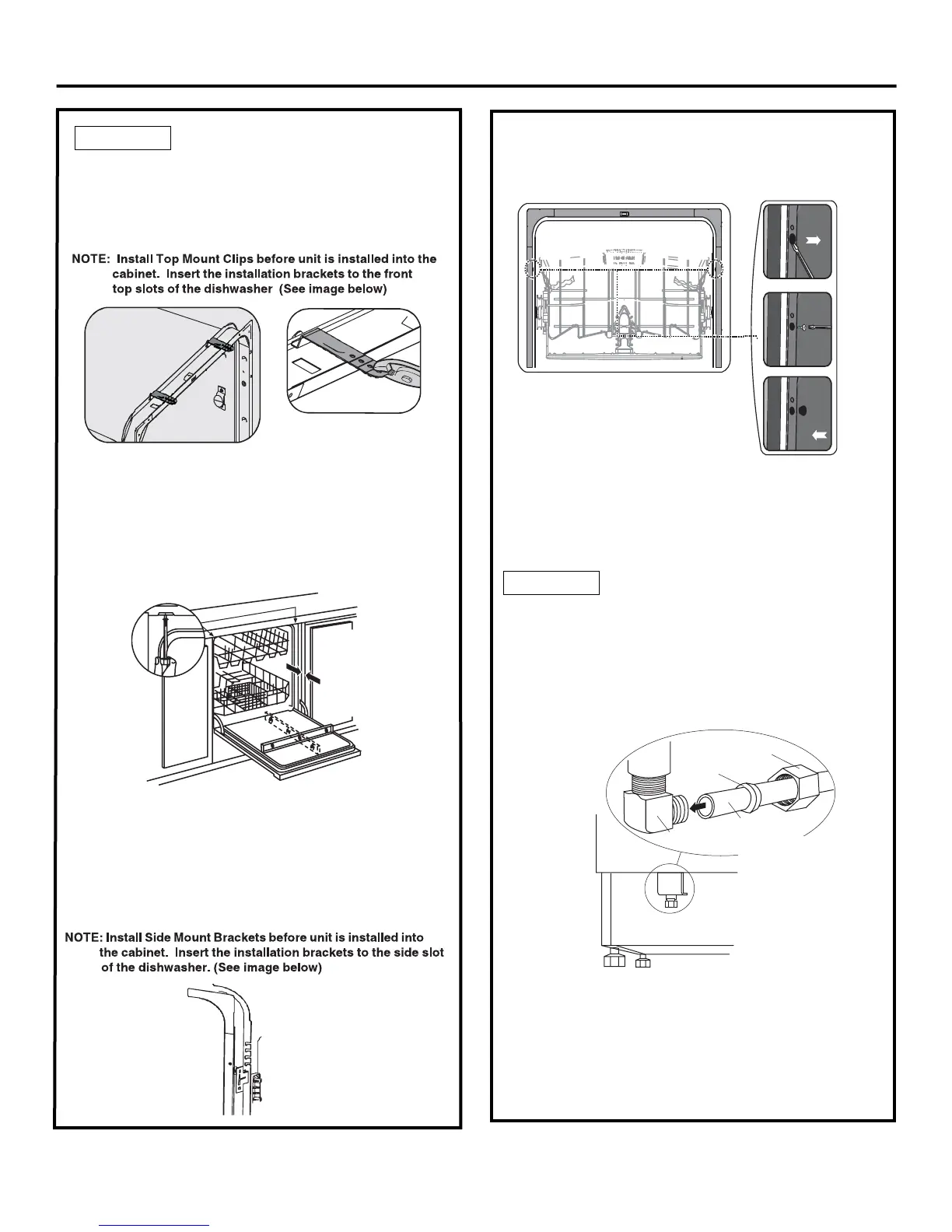

STEP 11 SECURE DISHWASHER
TO CABINET
IMPORTANT
–
Drive screws
straight and fl ush. Protruding screw heads will
scratch the top of the control panel and can interfere
with door closing.
STEP 12 CONNECT WATER SUPPLY
Connect water supply line to 90° elbow.
• Slide compression nut, then ferrule over end of
water line.
• Insert water line into 90° elbow.
• Slide ferrule against elbow and secure with
compression nut.
IMPORTANT –
Check to be sure
that door spring does not rub or contact the fi ll hose or
water supply line. Test by opening and closing the door.
Re-route the lines if a rubbing noise or interference
occurs.
Fasten the dishwasher to the underside of the
countertop with the 2 Phillips screws provided.
Align Tub
Flange
to Front
Face of
Cabinet
Frame
Ferrule
90° Elbow
Compression Nut
Hot Water
Supply Line
Depending on the depth of cabinet,the Top Mount Clip
have a break off point that can be removed if necessary.
Depending on space allowed in cabinet the Side
Mounting Clips can be installed with the holes for the
screw up (preferred method) or as shown in the
illustrations below.
Open the door remove the tub cap on both sides of
the tub. Install screw through the dishwasher side hole
to the wall of cabinet. Reinstall tub cap.
Method 1: To install using Top Mount Cabinet Clips.
Method 2: To install the Side Mounting Clips.
