b. Carefully rotate the divider slightly
counterclockwise to clear the tab from the
notch in the rail.
c. Repeat the above procedure to release the
rear of the divider from the rear support rail.
Note: When installing the vertical divider, position
the top of the divider into the recess in the freezer
ceiling before positioning the bottom over the
notches in the support rails.
Note: The top of the vertical divider is inserted in
a molded recess in the freezer ceiling. The bottom
of the divider has a front and rear tab that are
captured in a notch in each of the 2 support rails.

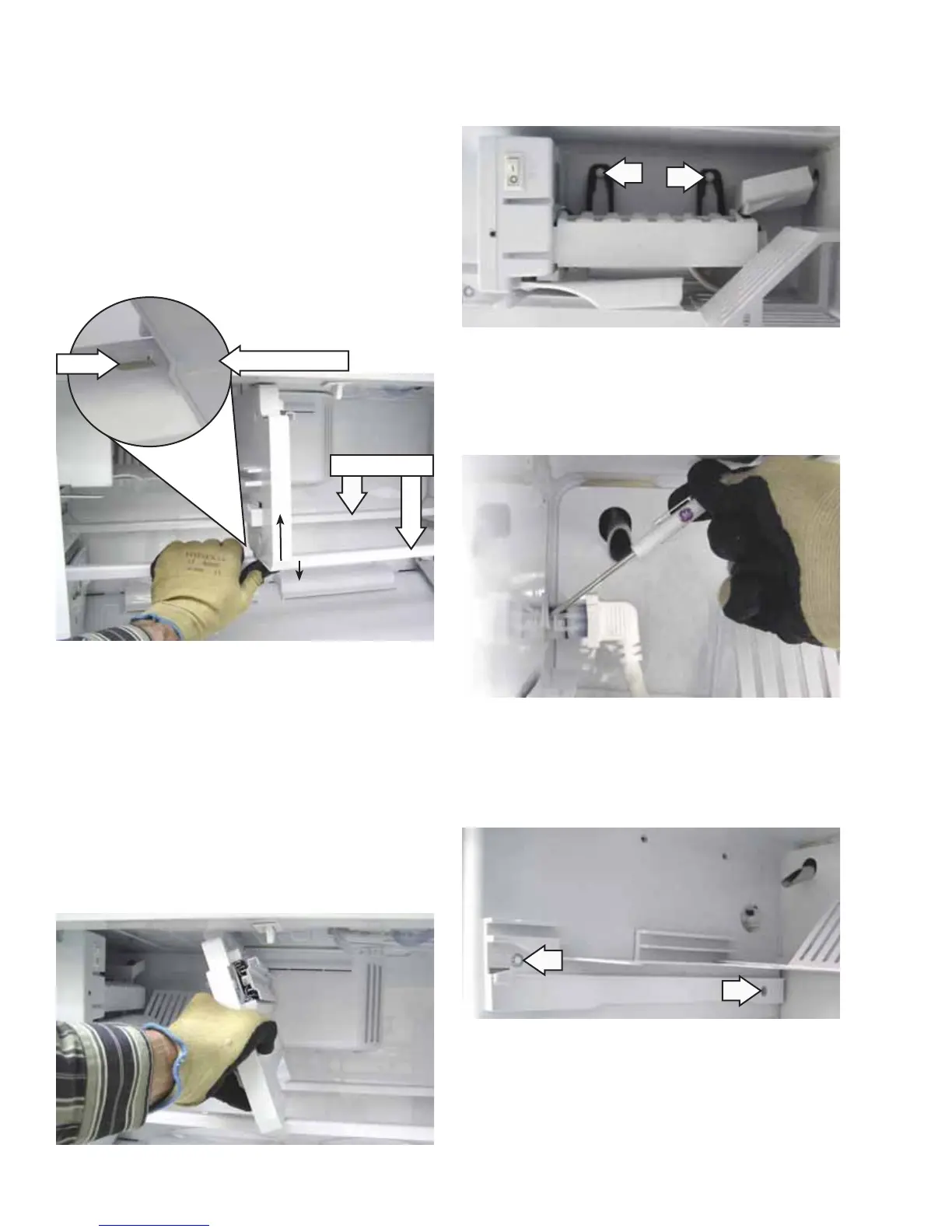

Remove the vertical divider from the support 6.
rails:
a. Release the front of the vertical divider by
pressing down on the front support rail while
pressuring the front of the divider up.
Verticle Divider
Notch
Support Rails
Remove the two ¼-in. hex-head screws that 7.
attach the icemaker to the freezer wall.
Remove the two ¼-in. hex-head screws that 9.
attach the icemaker bin support to the left
freezer wall.
Using a small fl at-blade screwdriver, expand 8.
the 2 clips and disconnect the icemaker wire
harness.
