– 45 –

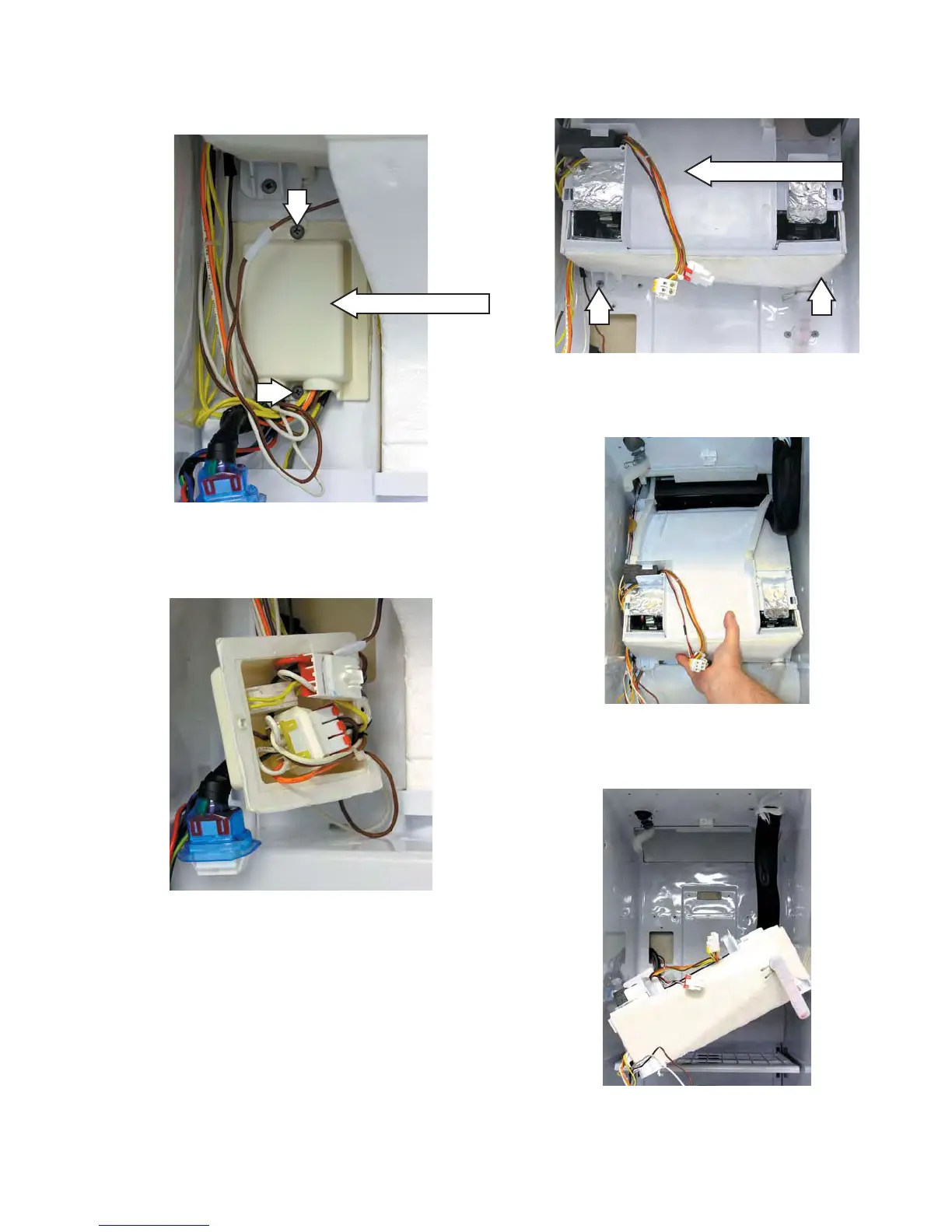

10. Disconnect the freezer evaporator wiring.
11. Remove the 2 Phillips-head screws that hold
the freezer evaporator assembly housing in
place.
9. Remove the 2 Phillips-head screws that hold
the freezer plug cover in place, then remove
the freezer plug cover.
Freezer Plug Cover
Note: When installing plug cover, place wiring
connectors inside the cover, then mount the plug
cover to the wall.
12. Lower the evaporator assembly into the
freezer compartment.
13. Place the freezer shelf in the top position.
Place the evaporator assembly on the shelf.
Assembly Housing
Caution: Refrigerant lines may be damaged if the
evaporator assembly is left unsupported.
To Next Page
