GE Profile WPDH8800J

42
Motor Assembly (cont.)

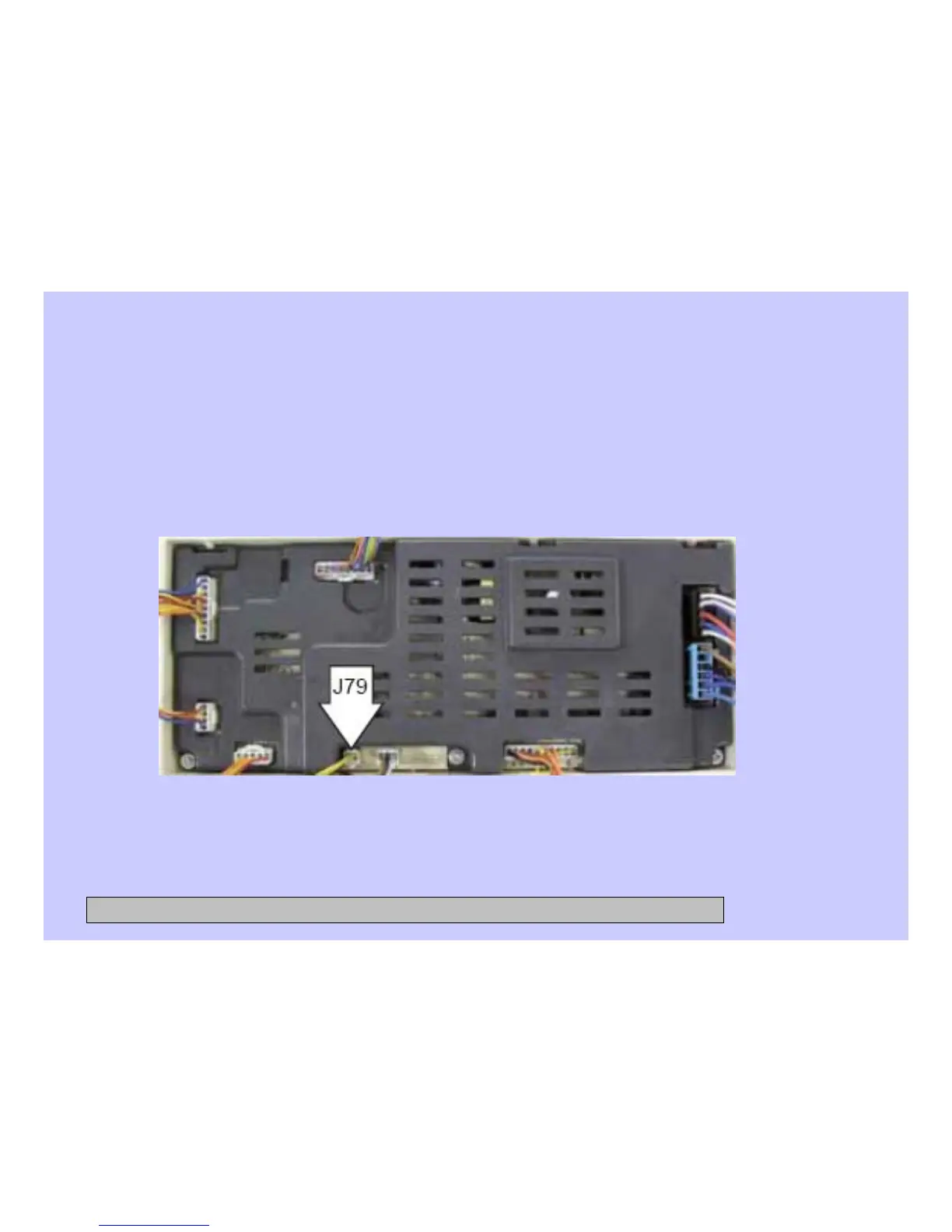

Note: The sensor and sensor wiring can be checked at the power board
assembly. Check for a resistance value of approximately 118 Ω resistance
between the 2 yellow wires located on the wire harness located at J79.
