5.7.3.2 IC755CxW07CDx
Adhere to the following guidelines:
• A terminal block is supplied with the unit.
• The mating terminal block supports stranded 30 to 14 AWG (0.05 to 2.00 mm
2
) wires.
• At a minimum, the cable must be rated for 75°C (167 °F) or more.
• Secure the serial cable to the mating connector while noting signal orientation and tighten the screw clamps.
• The torque for the attaching screws is 0.3 Nm (2.66 in-lb).

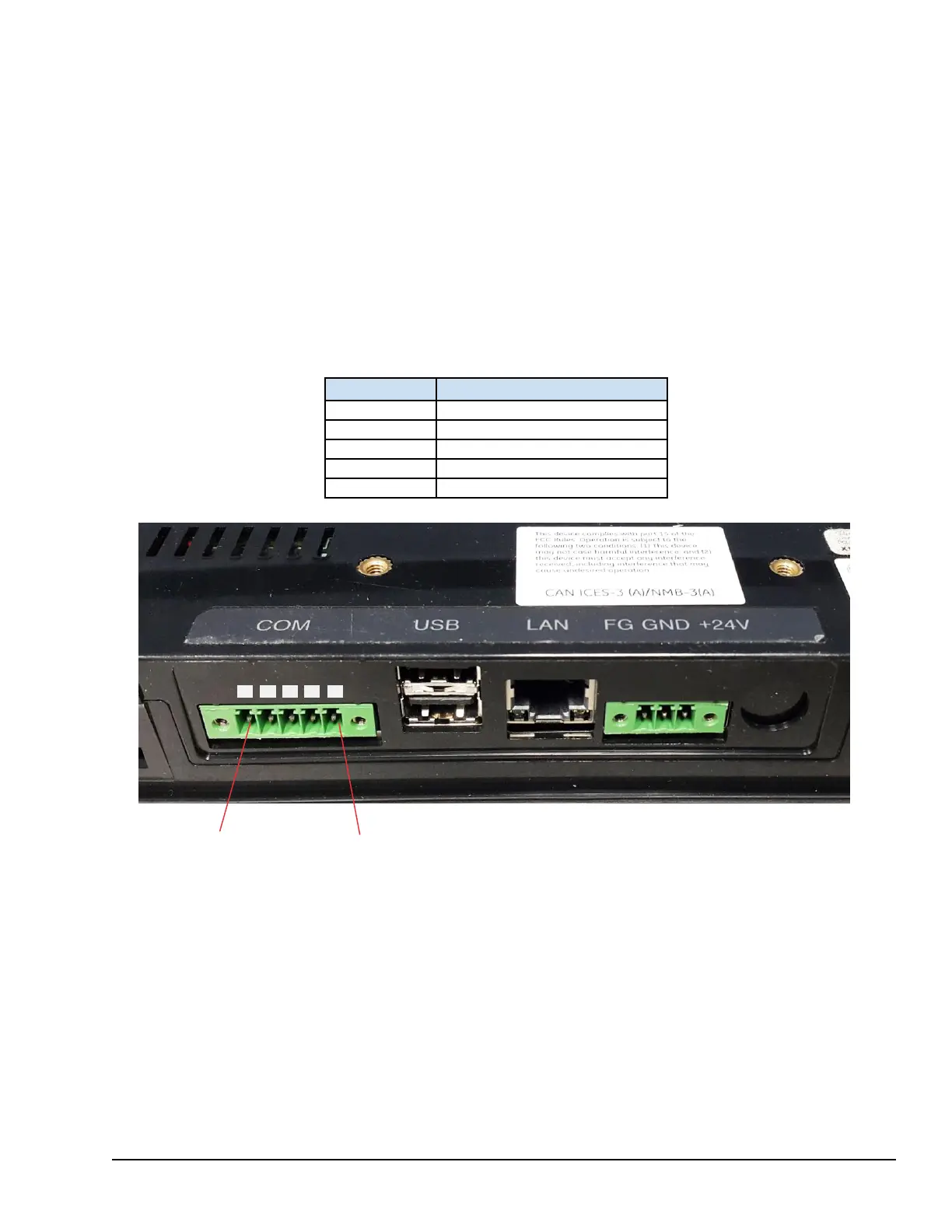

Serial Port COM1 Details
Interface: x1 RS-232
Connectors: Euro Terminal (Tyco Electronics 284539-5)
Mating Connector: (Tyco Electronics 284510-5)
COM1 Pin
Details
