GFK-2847W 81
DIPSW
Bit
ON/OFF
SW4
1
OFF
2
OFF
3
OFF
4
OFF
5
OFF
6
OFF
7
OFF
8
OFF
SW5
1
ON
2
ON
3
ON
4
ON
COM2 DIP Switch Setting for RS-232C
DIPSW
Bit
ON/OFF
SW2
1
OFF
2
OFF
3
OFF
4
OFF
5
ON
6
ON
7
OFF
8
ON
SW3
1
ON
2
OFF
3
OFF
4
OFF
Serial Port COM2 Details
Interface: RS-232C/485 (default is RS-485 Half-duplex)
COM2 Pin Details
Pin #
RS–232C
RS–485
Signal Name
Signal Name
(Full-duplex
†
)
Signal Name
(Half-duplex
†
)
1
TXD
TXD+
DATA+
‡
2
RXD
TXD-
DATA-
‡
3
RTS
RXD+
DATA+
‡
4
CTS
RXD-
DATA-
‡
5
SGND
SG
SG
†
Full-duplex RS–485 is backwards compatible to RS–422 mode.
‡
Pins 1-3 and 2-4 are connected internally.
COM1
COM2
Pin 1 Pin 5

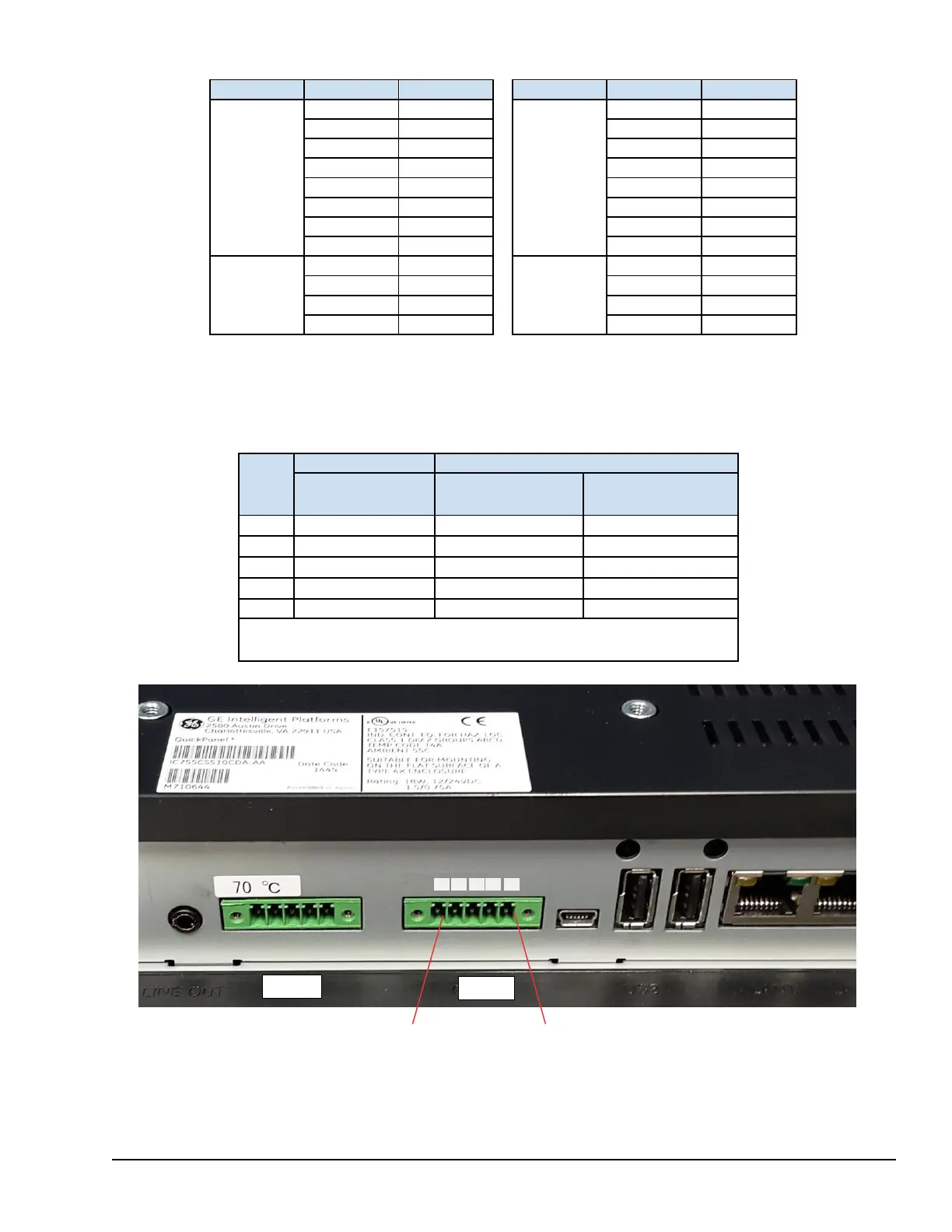

IC755CxSxxCDx Serial Port COM2 Pin-out
