GE Senographe DS Operator's Manual

GE Healthcare Senographe DS Acquisition System
Revision 1 Operator Manual 5307907-3-S-1EN
X-ray Console
4-cons.fm Page no. 31 Chapter 4
Chapter 4 X-ray Console
1 Console overview

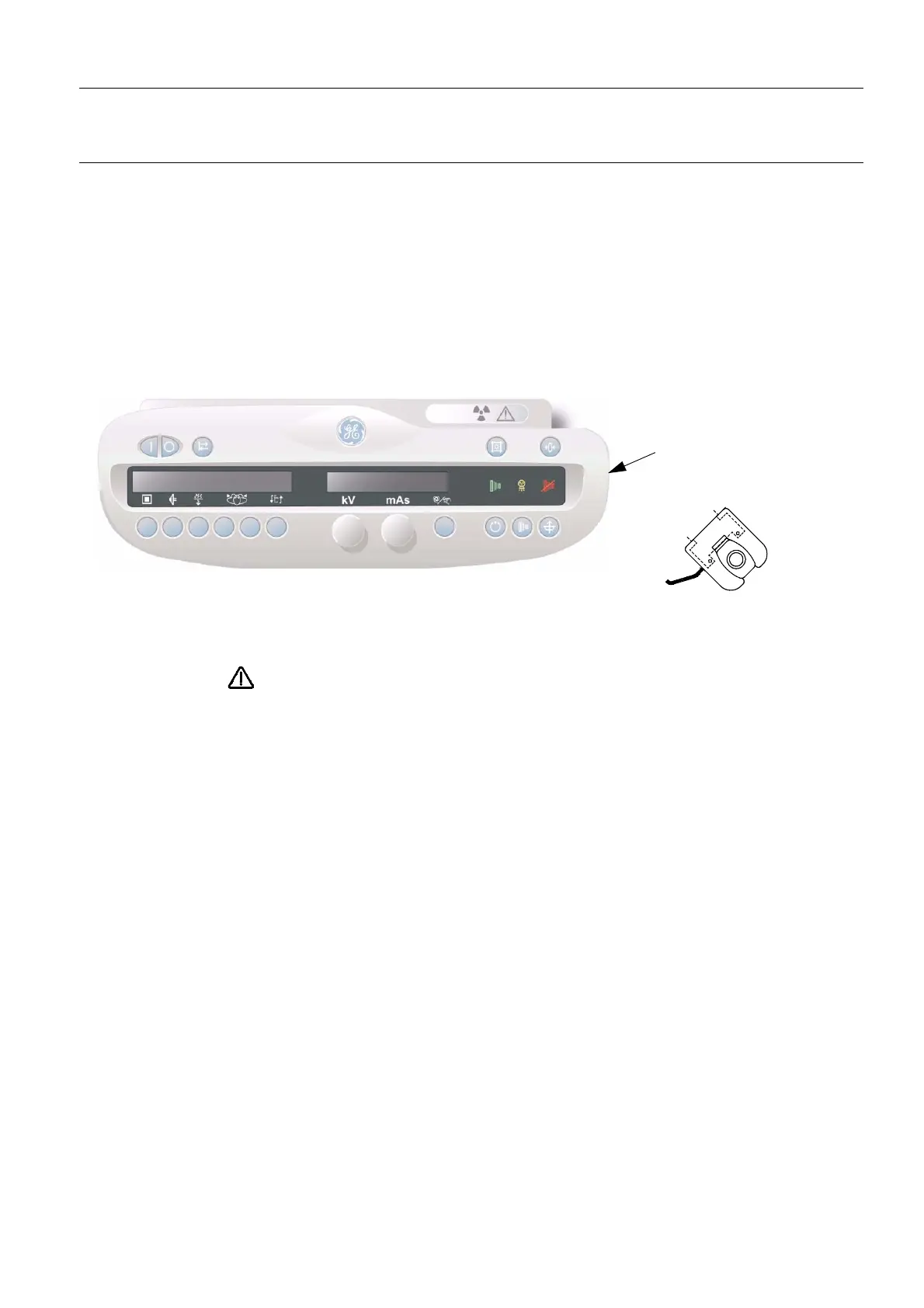

• The X-ray Console, illustrated below, provides control buttons and status indicators which enable the
Operator to prepare, execute, and monitor X-ray exposures.
• LCD panels display machine replies and messages.
• The console controls power On/Off facilities. It is used to power up the complete system, and to
power down the Gantry and Generator.
• The console is normally mounted on the AWS Cabinet, behind the radiation screen.
Note:
The symbol on the console indicates that you must have read and understood the operator
manual before taking any action.
Refer to the following pages for information on each of the console control buttons, switches, and dis-
plays.
Plugs for connection of
remote handswitch and cable
to generator
Optional remote handswitch (usually
mounted on the side of the AWS cabinet)
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
