GE Senographe DS Operator's Manual

Chapter 4 Page no. 40 4-cons.fm
GE Healthcare Senographe DS Acquisition System
Revision 1 Operator Manual 5307907-3-S-1EN
X-ray Console
4-2 Automatic view name selection
• Example:
Operator selected laterality: R.
Magnification stand: Present
Tube angle: -45
°
Automatically selected view name: R M SIO
4-3 Angles used in automatic view selection
The table shows the values used for automatic view selection:
View Name
Selected
Tube Head to Left Tube Head to Right
Minimum Maximum Minimum Maximum
CC 0° +10° 0° -10°
MLO or SIO +11° +79° -11° -79°
ML or LM +80° +100° -80° -100°
LMO +101° +169° -101° -165°
FB +170° +185° not accessible
Laterality
The operator selects the breast laterality,
Left or Right.
Magnification
The system senses the presence or absence of
a magnification stand
-45°

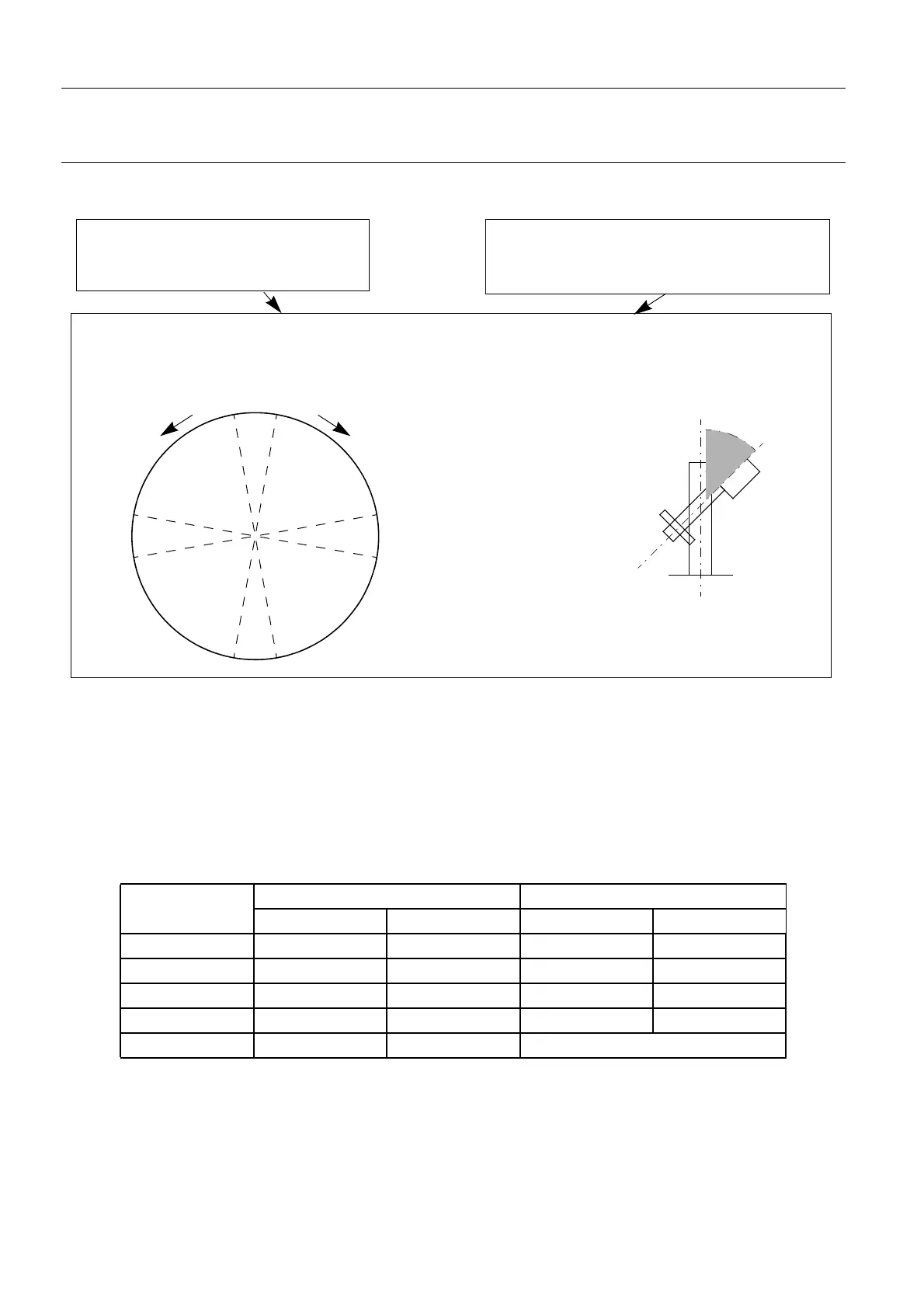

Arm angles are measured from the vertical 0°
position, with positive angles counter-clockwise
when facing the Gantry. The sketch shows the
tube at -45°.
Arm rotation angle
The system selects a view name according to the
arm angle and the laterality. Default values for the
angles used are given in the table below.
LLMO or
RMLO
RLMO or
LMLO
RMLO or
LSIO
LMLO or
RSIO
ML or LM
CC
0°
+90° -90°
180°
FB
Tube Head
to the Left
Tube Head
to the Right
The tube is at -45° and the selected laterality is R, so the inferior side
of the breast is against the receptor. The system therefore selects the
view name SIO, and adds the laterality prefix R. Because a magnifi-
cation stand is present, it also adds the prefix M.
FOR TRAINING PURPOSES ONLY!
