Installation Guide SG Series 10-20-30-40 UL S

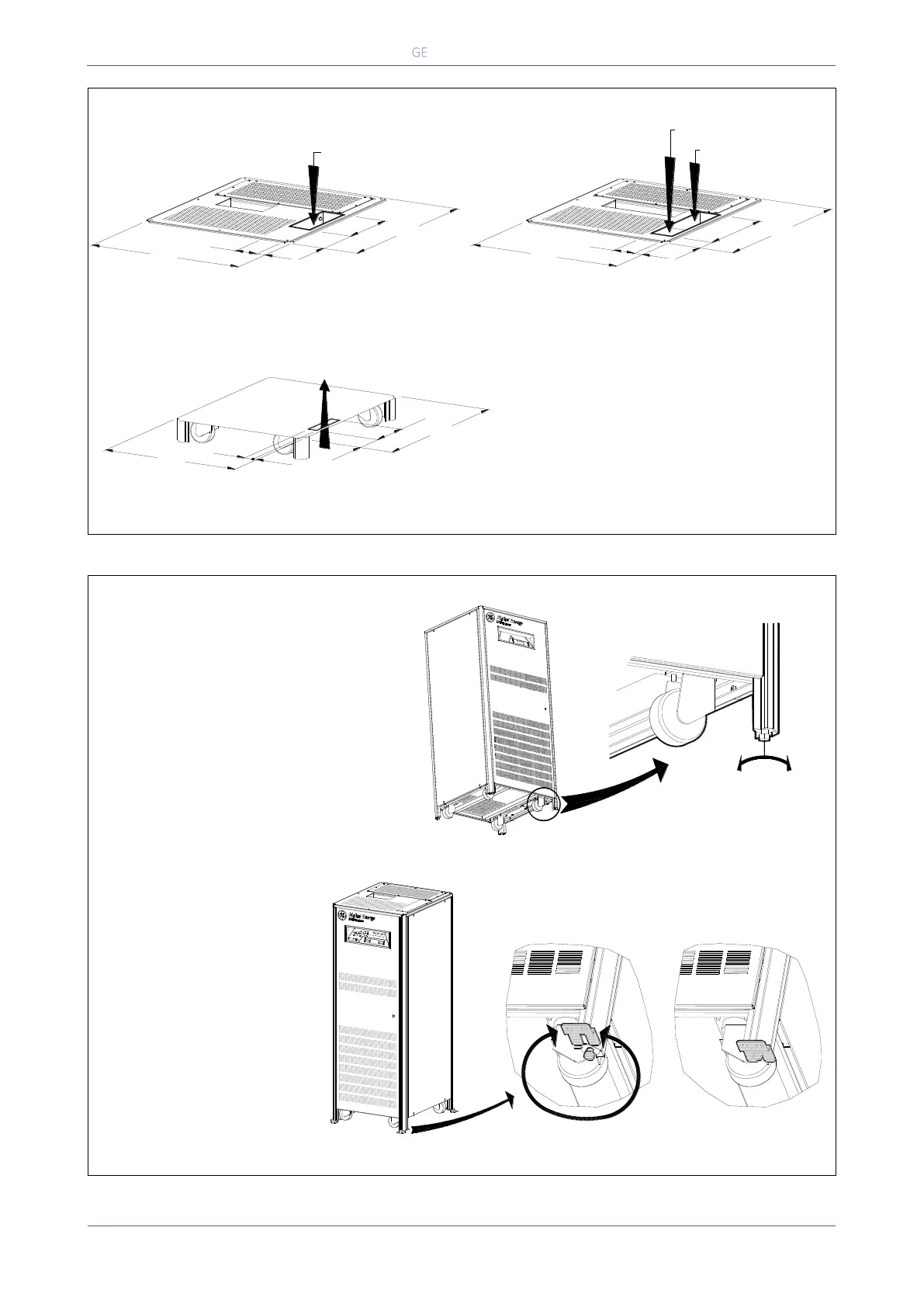

Openings for input and output cable connections
Fig. 3.4.1-2 Opening on top of the cabinet for input and
cables of SG Series 10 & 20
Fig. 3.4.1-3 Opening on top of the cabinet for input and
cables of SG Series 30 & 40
Fig. 3.4.1-4 Opening on the bottom of the cabinet for input and
output cables SG Series 10-20-30-40
SG Series 10-20-30-40 openings are
provided on the top and the bottom of the
UPS for the connection of input and output
cables.
Pay attention to the position of these
openings, when choosing the placement of
the UPS.
These openings are covered with a
protective plate.
Positioning of the UPS cabinet
SG Series 10-20-30-40 is equipped with
wheels for easy placement of the UPS.
To make the UPS movable on wheels, the
bolts on each leg of the cabinet have to be
turned counter-clockwise, until they are
free from the floor and thus the cabinet
supported on wheels.
After having positioned the UPS at its final
location, the cabinet has to be secured by
rotating the bolts on each leg clockwise,
but the wheels must still touch the floor.
Fig. 3.4.1-4 Bolts for the regulation of the cabinet
The UPS cabinet is free
standing and normally does
not require to be bolted to
the floor.
The UPS cabinet can be fixed
however to the floor by
bolting it with the supporting
blocks to the floor.
The supporting blocks can be
used in different positions (0°
- 360°)
These supporting blocks are
part of the shipping package.
See Fig. 3.4.1-5.
Fig. 3.4.1-5 Fixing of the UPS cabinet on the floor
SGT5000_010-020_UPS view top_01US
31.50"
800mm
9.06"
1.58"
40mm
230mm
9.06"
70mm
2.76"
26.78"
680mm
230mm
Utility input
Output Load
Battery
SGT5000_030-040_UPS view top_01US
31.50"
800mm
13.78"
1.58"
40mm
110mm
4.33"
70mm
2.76"
26.78"
680mm
350mm
Utility input
Output Load
Battery
SGT5000_030-040_UPS view bottom_01US
26.78"
680mm
7.09"
180mm
70mm
2.76"
50mm
1.97"
7.88"
200mm
31.50"
800mm
Utility input
Output Load
To lower
To lift
SGSU_050-080_UPS wheels_01aUS
SGSU_010-020_UPS fixing_01a
0 - 360°
