GE SG Series User Manual

Critical Power
Modifications reserved
Page 9/46
GE_UPS_OPM_SGS_ISG_10K_40K_0US_V070.docx
Installation Guide SG Series 10-20-30-40 UL S
2 LAYOUT
2.1 LAYOUT SG Series 10 & 20

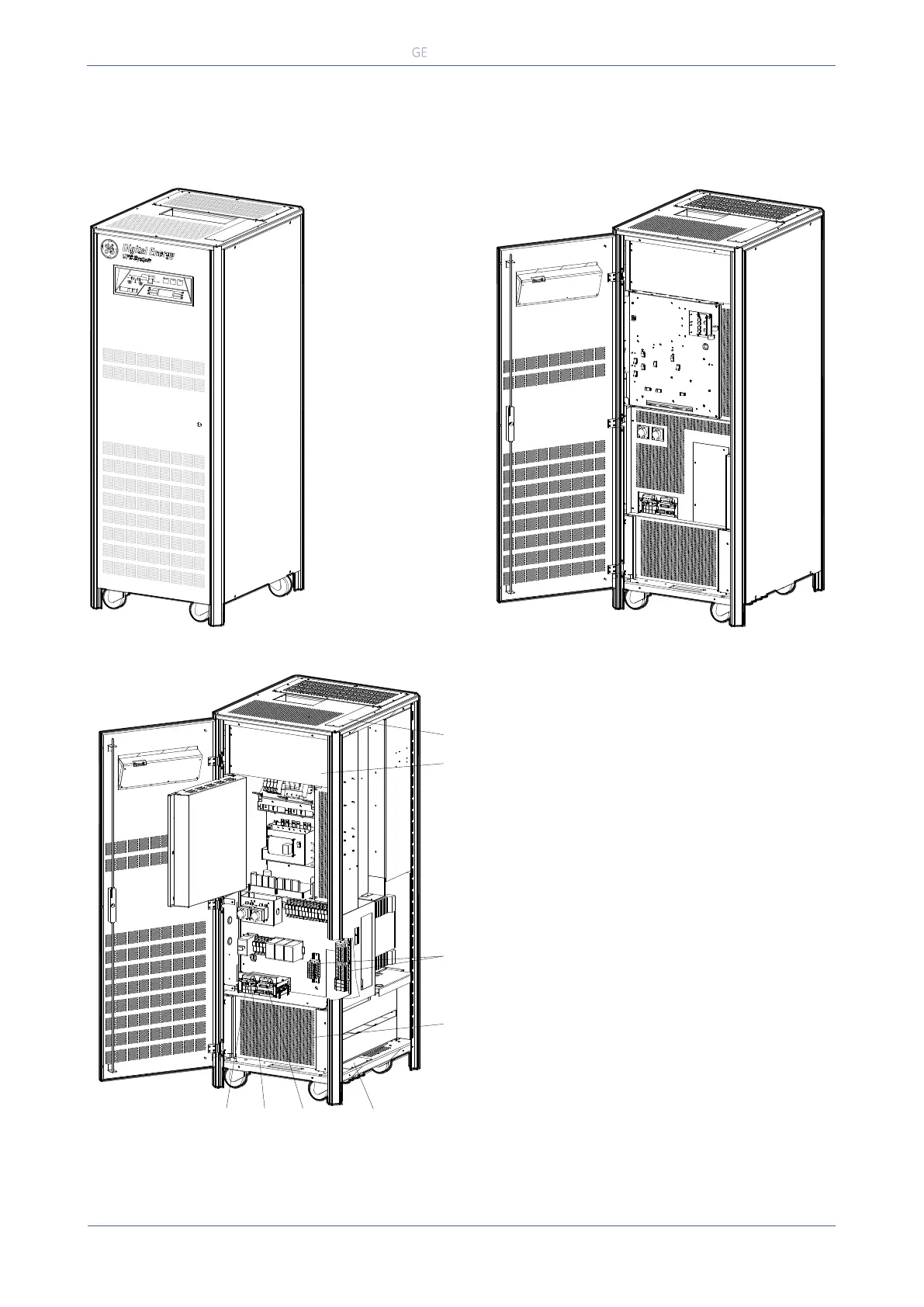

Fig. 2.1-1 SG Series 10 & 20 general view
Fig. 2.1-2 SG Series 10 & 20 general view with open doors
Fig. 2.1-3 SG Series 10 & 20 general view with optional 5
th
harmonic filter
and removed protection panels
1 Opening for top cable entry
2 Opening for bottom cable entry
3 Terminals for Utility input and load
output
4 Terminals for external Battery
connection
5 Battery Shelf
CR Connectivity Rack
XA Terminals for 24Vdc Auxiliary
Power Supply connection
XB Terminals for EPO connection
SGT5000_030-040_UPS_GE_02a
SGT5000_010-020_UPS_GE_03
SGT5000_010-020_UPS_GE_04
4
1
2
5
CRXA XB
3

GE SG Series Specifications

General

Topology	Line Interactive
Frequency	50/60 Hz
Battery Type	Sealed Lead-Acid (SLA)
Typical Recharge Time	4-6 hours
Operating Temperature	0°C to 40°C
Input Voltage	120V
Output Voltage	120V
