Installation Guide SG Series 10-20-30-40 UL S
Notices for installation

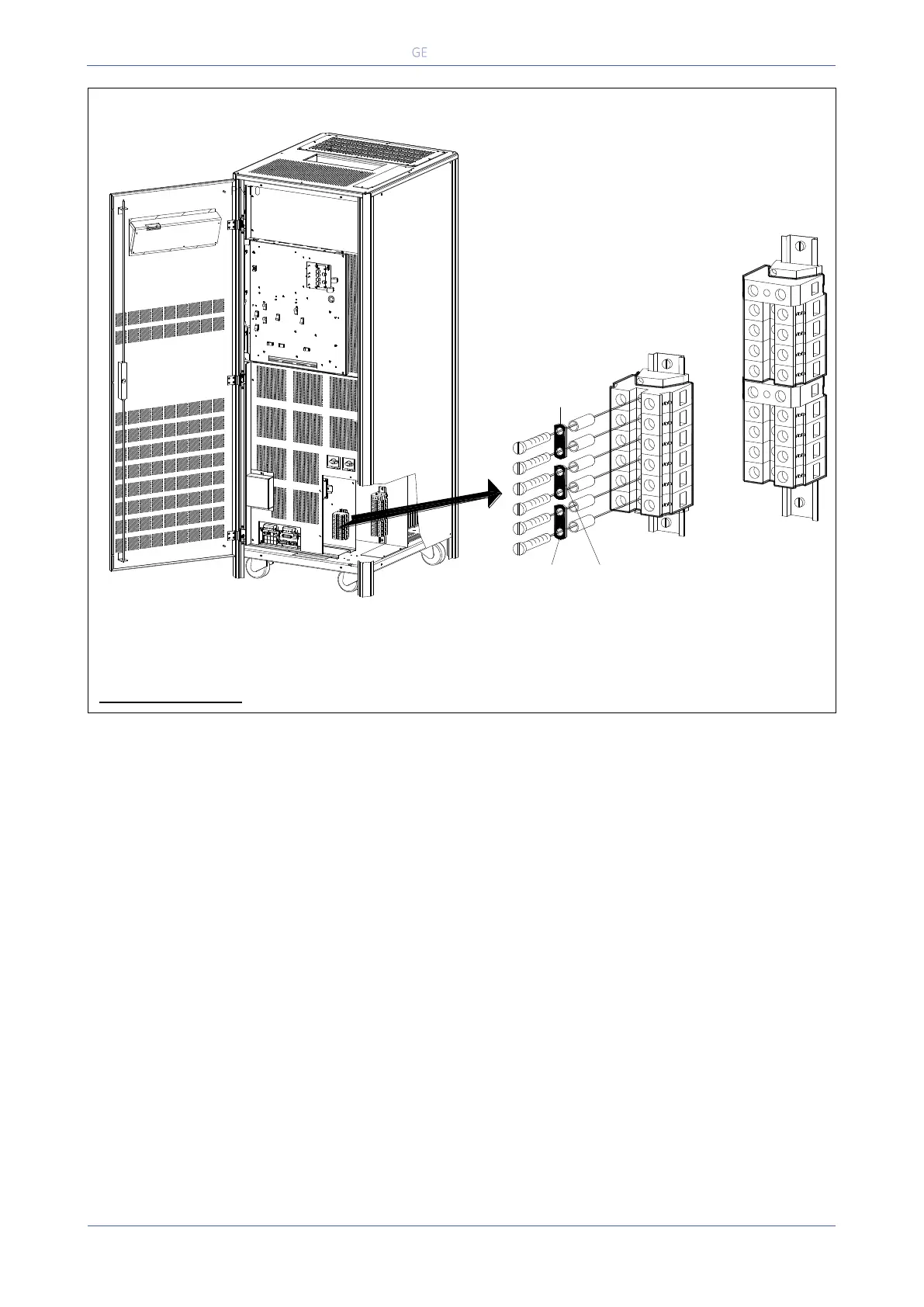

Fig. 3.8.5-2 Interconnection links BR1, BR2 and BR3 of SG Series 30 & 40
For separate Bypass and Rectifier Input configuration, the interconnection links BR1, BR2 and BR3
MUST BE REMOVED.
X1
SGT5000_030-040_UPS BR1-2-3_01
OFF
ON
OFF
ON
X2
BR1 BR2
BR3
