Installation Instructions
INSTALLATION INSTRUCTIONS

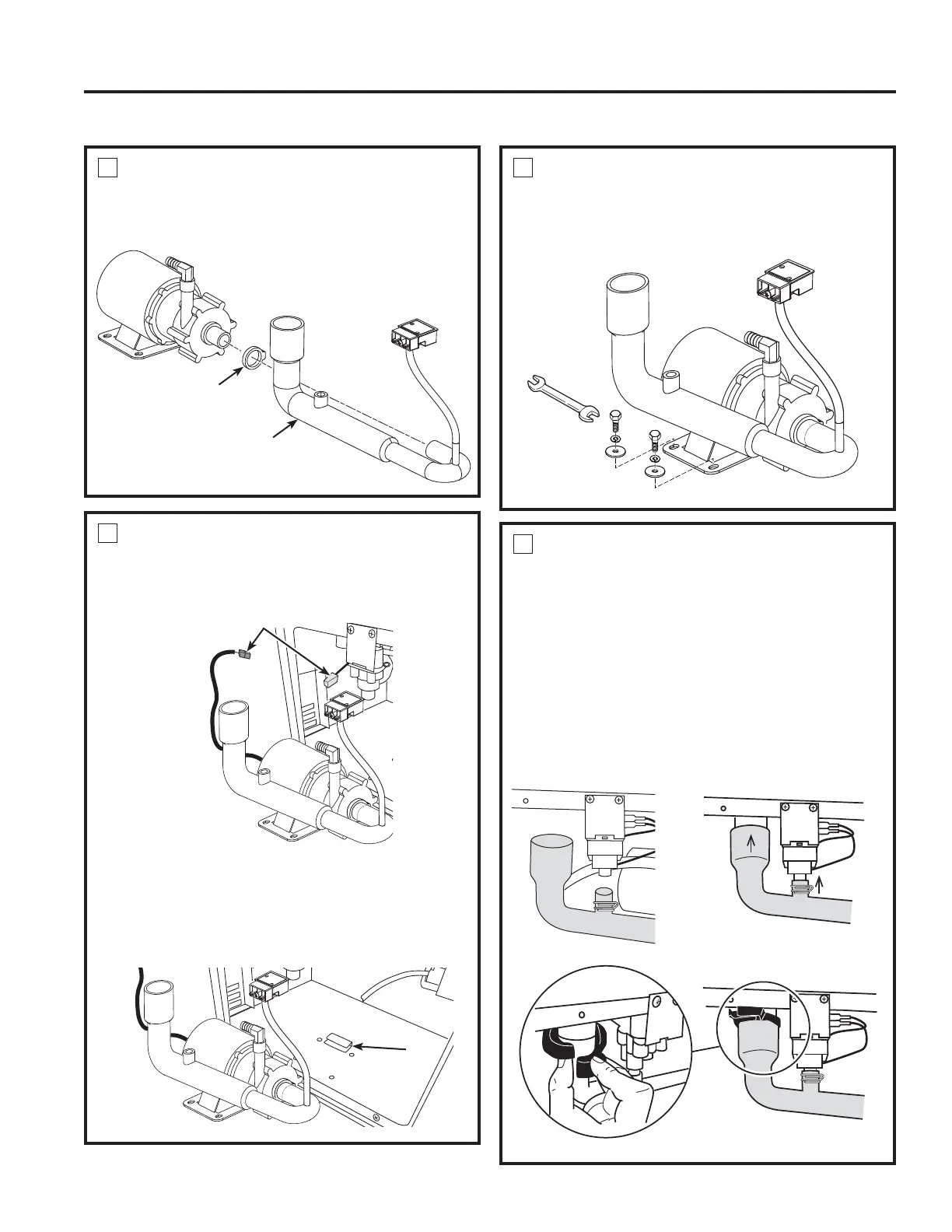

Drain Pump Kit UPK4 Accessory Installation (Cont.)
4
INSTALL NEW DRAIN TUBING
Ŷ ,QVWDOOWKHQHZZKLWHGUDLQWXELQJLQWKH
accessories to the drain pump and clamp with
the snap ring included in the kit.
5
INSTALL THE DRAIN PUMP
Ŷ ,QVHUWWKHUHGFRQQHFWRURIWKHGUDLQSXPSLQWR
the red connector you will see on a wire inside of
the ice machine.
Ŷ Slide the drain pump into the ice machine so
the base slides under the tab on the base of the
ice machine floor. The front of the pump with
the hose attached will face the front of the ice
machine.
5
INSTALL THE DRAIN PUMP
(Cont.)
Ŷ 8VLQJWKHKDUGZDUHIURPWKHNLWDWWDFKWKHSXPS
to the ice maker floor using a wrench.
:KLWH'UDLQ
Tubing
Snap Ring
Red Connectors
Tab
6
CONNECT DRAIN PUMP TO ICE
MACHINE
Ŷ Slide the small metal clamp, which you saved
from original tube assembly, on the short drain
tube of the PVC drain pipe as shown in the
picture below. Push the pipe up to connect both
tubes to the fittings from the ice machine which
you disconnected earlier. Snap and secure the
snap ring back on the connection of the main
drain tube. Slide up and secure the small metal
clamp up and tighten at the connection.
