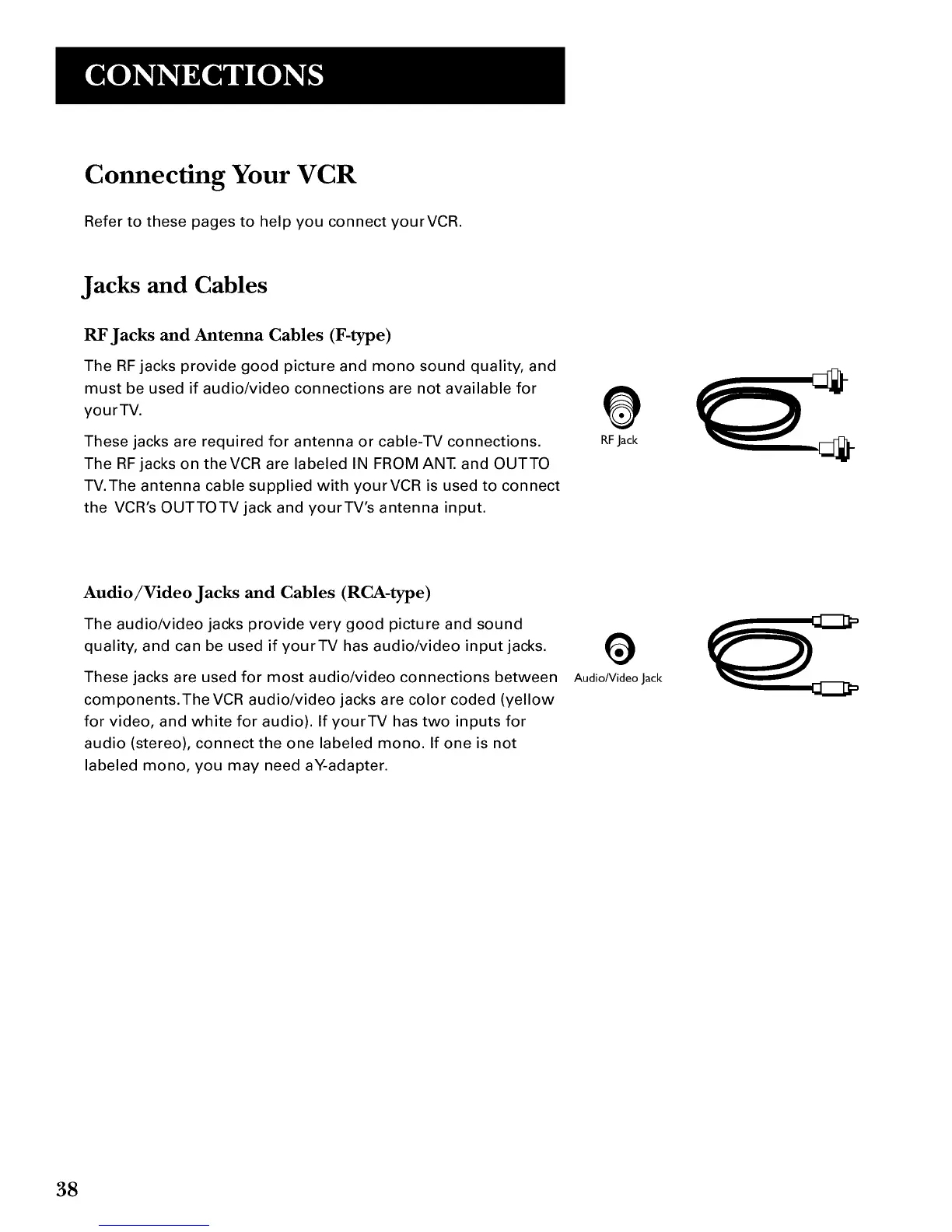

Connecting Your VCR
Refer to these pages to help you connect yourVCR.
Jacks and Cables
RF Jacks and Antenna Cables (F-type)
The RF jacks provide good picture and mono sound quality, and
must be used if audio/video connections are not available for
yourTV.
These jacks are required for antenna or cable-TV connections.
The RF jacks on theVCR are labeled IN FROM ANT. and OUTTO
TV.The antenna cable supplied with yourVCR is used to connect
the VCR's OUTTOTV jack and yourTV's antenna input.
O
RFJack
Audio/Video Jacks and Cables (RCA-type)
The audio/video jacks provide very good picture and sound
quality, and can be used if yourTV has audio/video input jacks.
These jacks are used for most audio/video connections between
components.The VCR audio/video jacks are color coded (yellow
for video, and white for audio). If yourTV has two inputs for
audio (stereo), connect the one labeled mono. If one is not
labeled mono, you may need aY-adapter.
O
Audio/Video Jack
38
