Scanning
Vscan Air – User Manual 5-7
Direction GP092020-1EN Rev 18
Probe orientation
Vscan Air CL is provided with an orientation mark on both the
transducer heads. This mark is used to identify the side of the
Vscan Air CL probe corresponding to the side of the image
having the orientation V mark on the scanning screen.
A steady blue LED light on one end of the Vscan Air CL
indicates which transducer head is active.

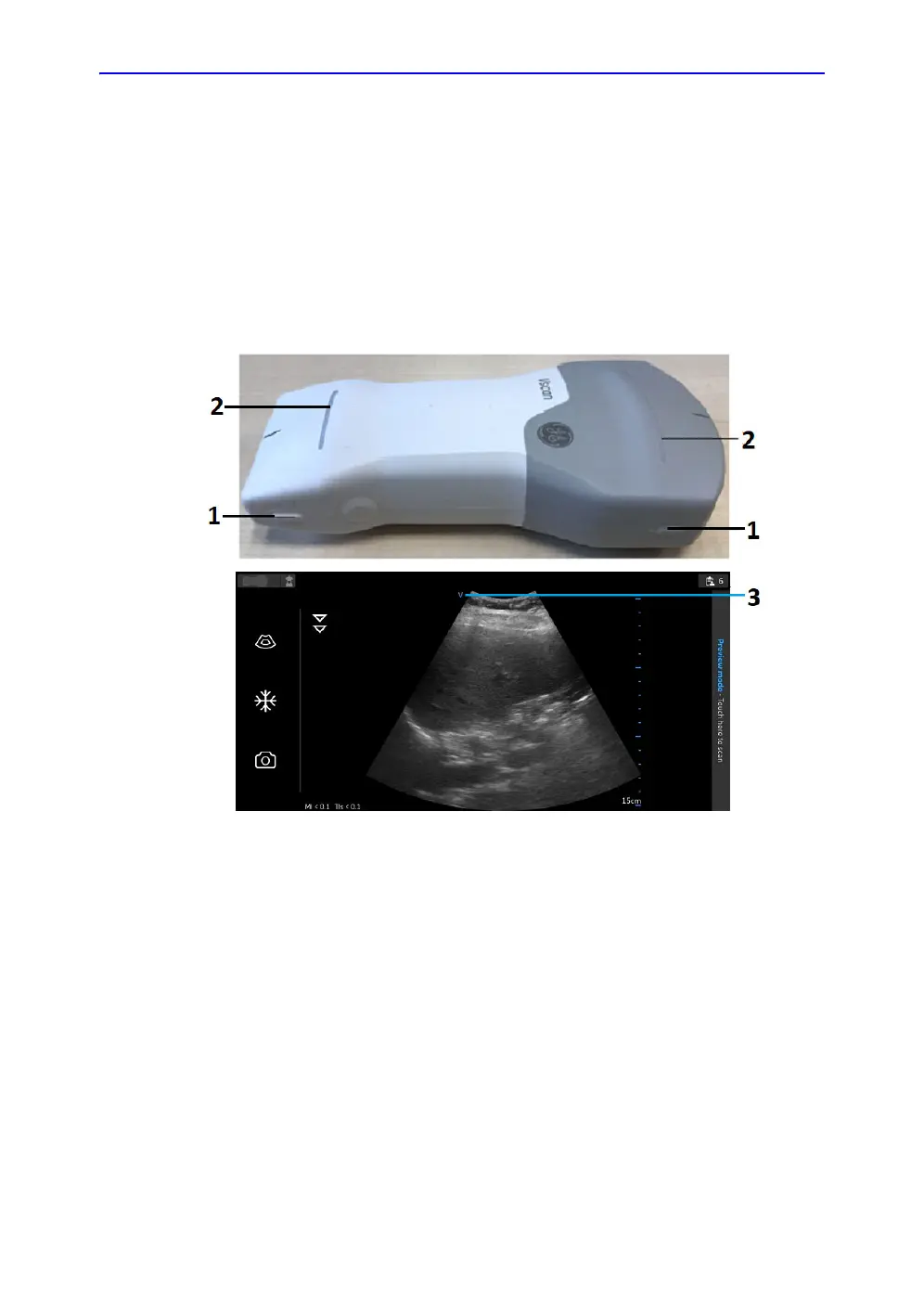

Figure 5-3. Vscan Air CL Orientation
1. Orientation marking on Vscan Air CL
2. LED light
3. Orientation marking on screen
