Using Vscan Air CL
5-8 Vscan Air – User Manual
Direction GP092020-1EN
Rev 18
Image crop indicator
Vscan Air maximizes the image display on the screen in the
portrait mode. As a result, at certain depths, image
corresponding to the entire transducer width may not visible on
screen in portrait mode. Image crop indicators are displayed in
such cases to make the user aware of this.

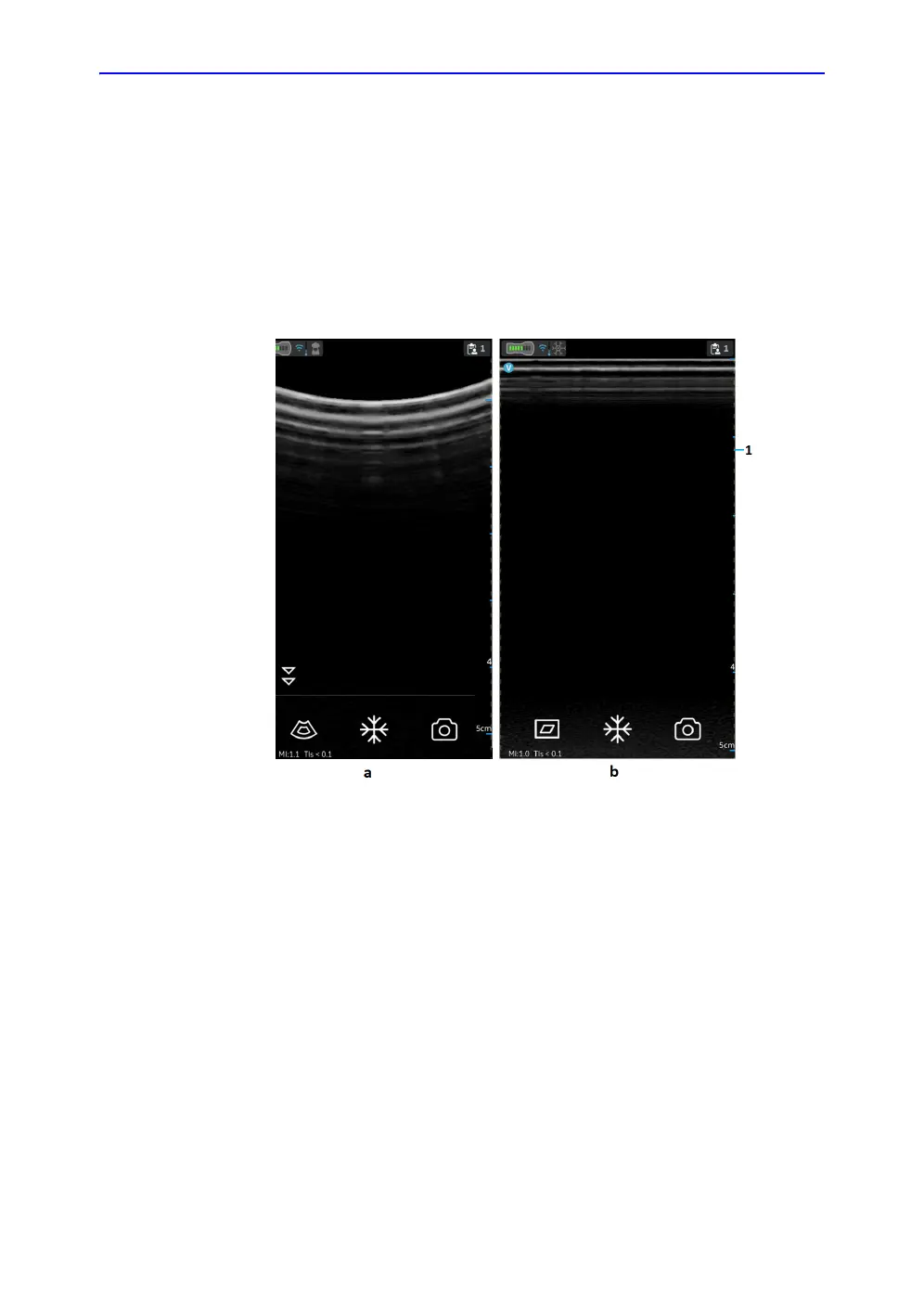

Figure 5-4. Image crop indicator (portrait mode)
1. Image crop indicator
a. Curved array (deep scanning) transducer
b. Linear array (shallow scanning) transducer
