– 26 –
Lock Switch
Cam
Unlock Switch
L
LOCK RELAY
C MDL
LOCK
MOTOR
DOOR
SWITCH
N
NC
C
NO
ALL OTHER MODES WITH DOOR CLOSED
L
LOCK RELAY
C MDL
LOCK
MOTOR
DOOR
SWITCH
N
NC
C
NO
DOOR LOCKING OR UNLOCKING
5
4
3
Door latch output pin -25VDC
at all times measured to ground
Door Unlatched Input Pin
Sensor and Lock
Switch Connectors
LOCK SW.#2
LOCK
SW. #1
LOCK SW. CIRCUIT
Thermal Switch
6
8
Locked
5
4
3
Door latch output pin -25VDC
at all times measured to ground
Door Unlatched Input Pin
Sensor and Lock
Switch Connectors
LOCK SW.#2
UnlOCK
SW. #1
LOCK SW. CIRCUIT
Thermal Switch
6
8
Unlocked

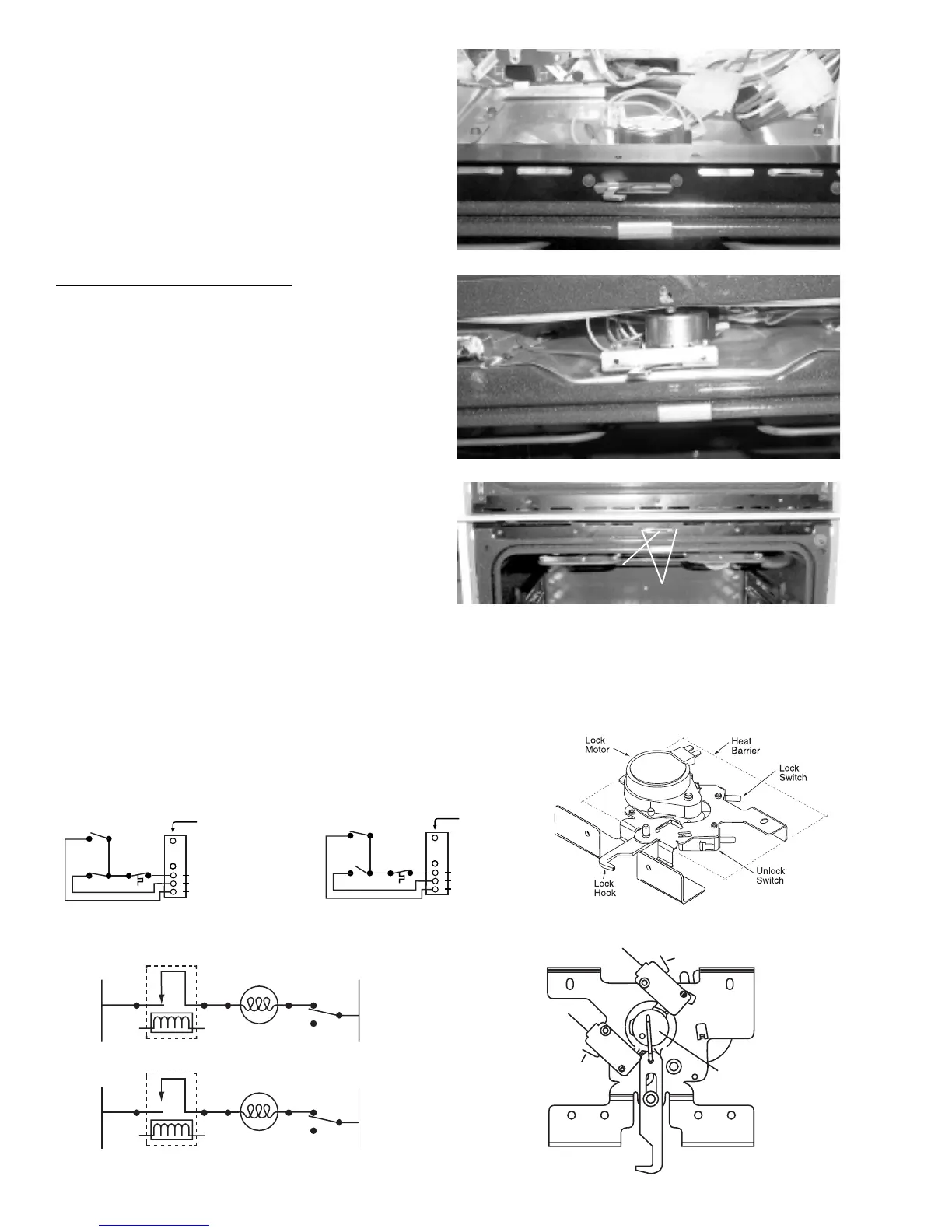

Motorized Door Lock
The motorized door lock assembly is located
above the oven. The assembly consists of a lock
motor cam and switch assembly, lock hook, heat
barrier, and mounting plate.
Access to this assembly, for single and upper
ovens, is behind the control panel. For lower
ovens, access is behind the trim cover between
the 2 ovens.
Motorized Door Lock Operation
The lock motor is energized when the control is
set for Clean and Clean Time selected. The K1
relay contact will close and complete the circuit
that supplies the voltage to the lock motor.
Note: The display of the Control will flash LOCK
DOOR if the door switch is in the C to NC position
(Door open).
The words LOCKED DOOR will flash on and off in
the display while the lock motor is in motion. When
the door is locked the words LOCKED DOOR
remains illuminated in the display.
The cam on the motor performs two functions:
1. Positions the lock hook in the door to prevent
opening during Clean operation.
2. Operates the lock switches that tell the control
if the door is unlocked or locked and ready for
Clean operation.
Note: When door is either being locked or un-
locked, both lock switches will be in the open
position.
Note: For lower oven, when assembling, attach
the motorized door lock assembly to the trim cover
and assemble as a unit.
Motorized
Door Lock 2 Screws
Single & Upper Oven
Lower Oven
To Next Page
