11
Connecting high voltage accessories: all models
Two options are available with Y Series spa packs for connecting high voltage accessories: 0�250” quick-connect
terminals, or AMP connectors conform to industry standards�
Connections

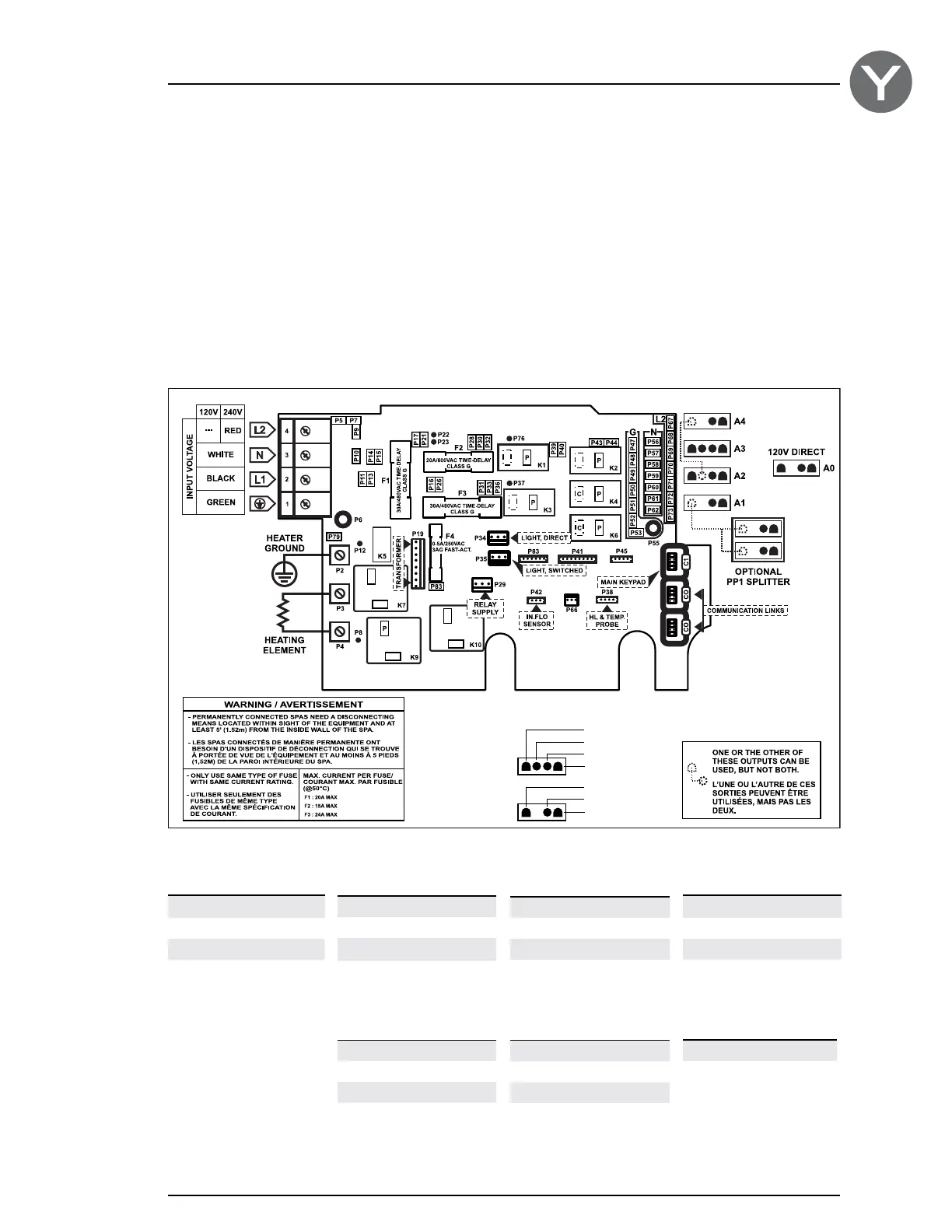

Connecting high voltage accessories: North American model in.ye
For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick
connect terminals, straight and non-insulated for all types of connections, including the ground� Accessories of 120 V or
240 V may be connected to the corresponding terminals of the printed circuit of the in�ye� Refer to the following tables
for correct connections� Note that all female terminals must be correctly and completely seated on the printed circuit
terminals for proper current ratings�
Circulation pump* (A1)
Voltage 120 V 240 V
Green / ground P51 P51
Black / line K1-P K1-P
White / common P60 P71
Light (12 V AC, 1A Max.)
Always on P34
Relay P35
Direct output 1
(A0 / Floating connector) (in.ye-5 only)
Voltage 120 V 240 V
Green / ground P47 P47
Black / line P32 P32
White / common P56 P67
This table shows typical connections� OEMs may have a different connection scheme�
* Ozonator and circulation pump can be combined on the same output via the optional splitter PP1�
HIGH SPEED (RED)
LOW SPEED (BLACK)
COMMON (WHITE)
GROUND (GREEN)
LIVE (BLACK)
COMMON (WHITE)
GROUND (GREEN)
Pump 2 (A2)
(in.ye-5 only)
Voltage 120 V 240 V
Green / ground P50 P50
Black / low speed K6-P K6-P
Red / high speed K3-P K3-P
White / common P59 P70
Pump 3 (A4)
(in.ye-5 only)
Voltage 120 V 240 V
Green / ground P48 P48
Black / line K6-P K6-P
White / common P57 P68
Pump 1 (A3)
Voltage 120 V 240 V
Green / ground P49 P49
Black / low speed K2-P K2-P
Red / high speed K4-P K4-P
White / common P58 P69
Pump 2 (A2)
(in.ye-3 only)
Voltage 120 V 240 V
Green / ground P50 P50
Black / low speed K2-P K2-P
White / common P59 P70
