12

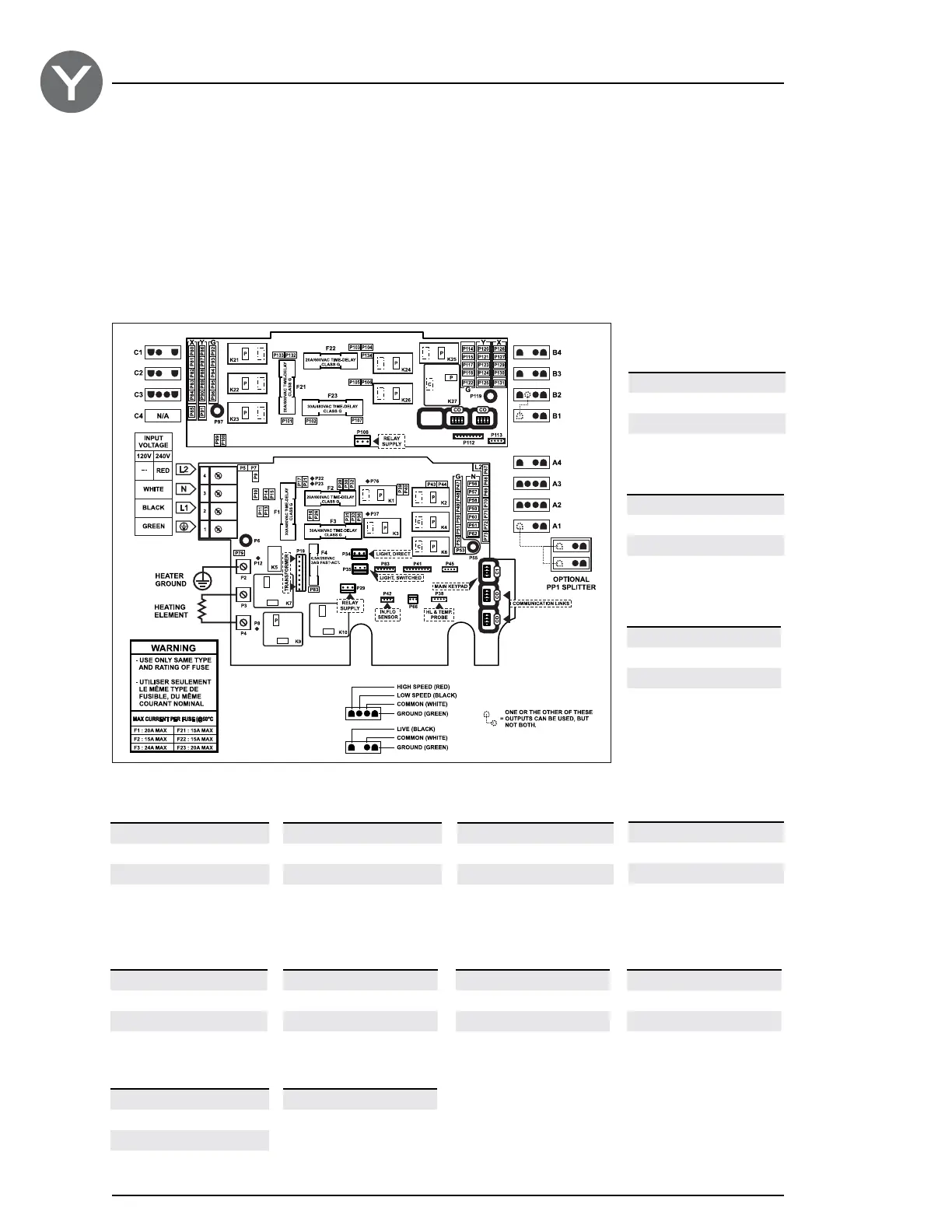

Connecting high voltage accessories: North American model in.yt
For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick
connect terminals, straight and non-insulated for all types of connections, including the ground� Accessories of 120 V or
240 V may be connected to the corresponding terminals of the printed circuit of the in�yt� Refer to the following tables
for correct connections� Note that all female terminals must be correctly and completely seated on the printed circuit
terminals for proper current ratings�
This table shows typical connections� OEMs may have a different connection scheme�
Connections
Direct output 1 (A4)
Voltage 120 V 240 V
Green / ground P48 P48
Black / line P32 P32
White / common P57 P68
Direct output 2 (C1)
Voltage 120 V 240 V
Green / ground P92 P92
Black / line P132 P132
White / common P86 P80
Pump 2 (A2)
Voltage 120 V 240 V
Green / ground P50 P50
Black / low speed K6-P K6-P
Red / high speed K3-P K3-P
White / common P59 P70
Pump 1 (A3)
Voltage 120 V 240 V
Green / ground P49 P49
Black / low speed K2-P K2-P
Red / high speed K4-P K4-P
White / common P58 P69
Pump 3 (C3)
Voltage 120 V 240 V
Green / ground P94 P94
Black / low speed K22-P K22-P
Red / high speed K21-P K21-P
White / common P88 P82
Pump 4 (B2)
(in.yt-12 only)
Voltage 120 V 240 V
Green / ground P117 P117
Black / low speed K26-P K26-P
Red / high speed K27-P K27-P
White / common P123 P129
Pump 5 (B3)
(in.yt-12 only)
Voltage 120 V 240 V
Green / ground P115 P115
Black / line K24-P K24-P
White / common P121 P127
Blower (B4)
(in.yt-12 only)
Voltage 120 V240 V
Green / ground P114 P114
Black / line K25-P K25-P
White / common P120 P126
Circulation pump (C2)
(in.yt-7)
Voltage 120 V 240 V
Green / ground P93 P93
Black / line K22-P K22-P
White / common P87 P81
Circulation pump (C2)
(in.yt-12)
Voltage 120 V240 V
Green / ground P93 P93
Black / line K23-P K23-P
White / common P87 P81
Ozonator (A1)
Voltage 120 V 240 V
Green / ground P51 P51
Black / line K1-P K1-P
White / common P60 P71
Light (12 V AC, 1A Max.)
Always on P34
Relay P35
Auxiliary (B1)
(in.yt-12 only)
Voltage 120 V240 V
Green / ground P118 P118
Black / line K26-P K26-P
White / common P124 P130
