20
240 V (4 wires)
120 V (*3 wires)
* If connected to a 3 wires
system, the heat�wave and
accessories will not operate
at 240 V�
Refer to the section
« Connections for 120 V
heaters »�
Note: To convert model to a 120 V system, the white (common)
accessory wire must be moved� See wiring diagram for details�
Electrical wiring: North Amercian model in.ye and in.yt

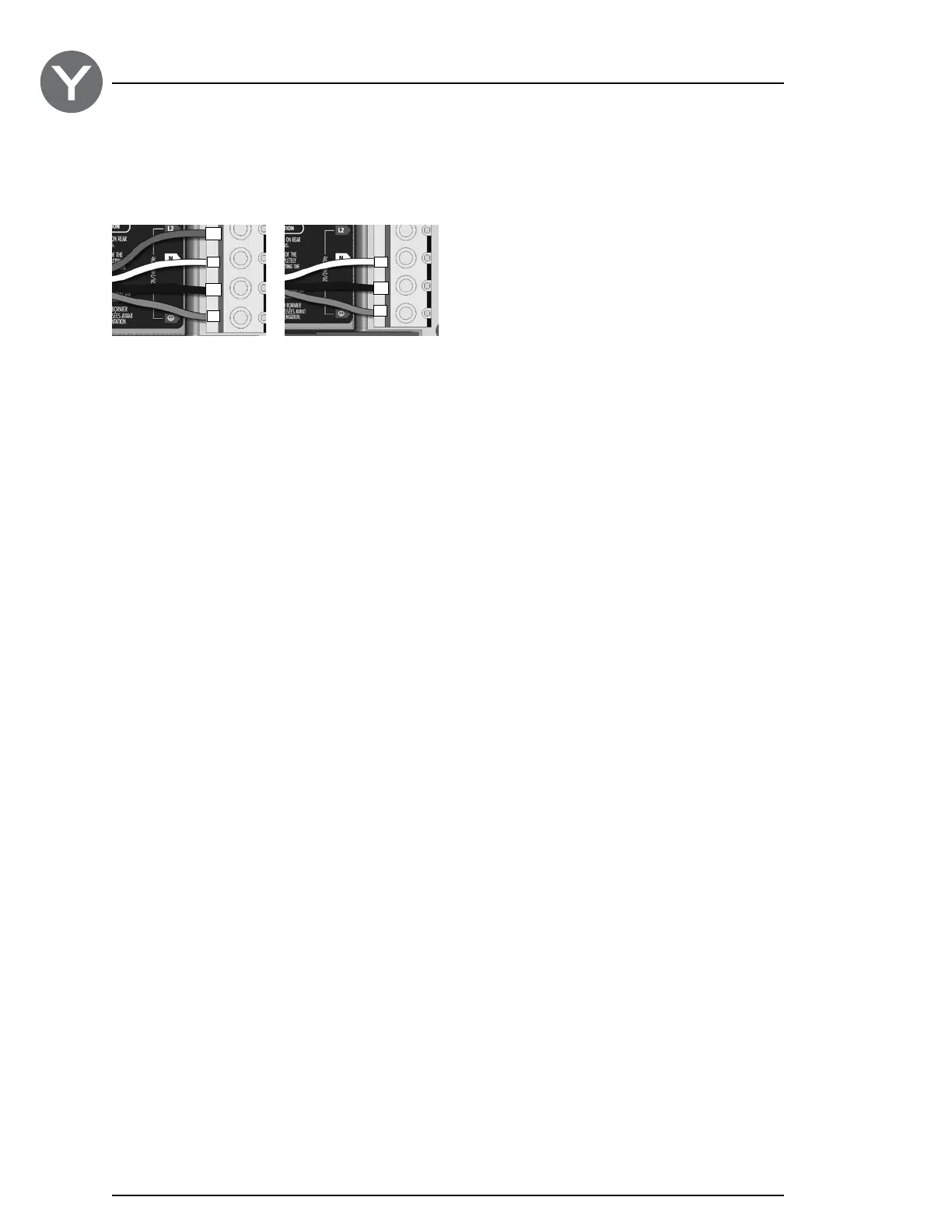

Electrical wiring
Refer to wiring diagram in the enclosure box lid for more information�
Insert each wire into the appropriate socket of the main entry terminal block according to the color code indicated on the
sticker� Use a flat-head screwdriver to tighten the screws on the terminal�
After making sure wires are securley connected, push them back into the box and replace the cover� Do not over tighten
cover screws (torque to 8 in� lb max {0�9 N�m})�
Connect the bonding conductor to the bonding lug on the front of the spa pack (a grounded electrode conductor should
be used to connect the equipment grounding conductors)�
N N
L1
L1
L2
G
G
