8
For detailed instructions and drilling template, refer to the compatible keypad section and select your keypad to be
redirected to the corresponding techbook�
The following material
is recommended:
4- # 10 screws of
appropriate length with
round, truss or pan head�
4- washers �5 OD" x
�0625" thickness
(12 mm OD x 1�5 mm)
Use 2 standard 2" x 4"
or 2" x 6" wall studs,
spaced 17-inch from
center to center to fix the
spa pack�
Firmly attach lower
mounting holes on each
side of the pack with
the 2 remaining screws
and 2 washers�
Lower mounting holes
are 2" (51 mm) below
upper holes�
Firmly attach, one at a
time, upper mounting
holes on each side of the
spa pack with 2 screws
backed by 2 washers�
Install mounting brackets
on both sides of the rear
of the unit, using screws
provided with bracket�
Torque screws to 13 in� lb
max (1�49 N�m)�

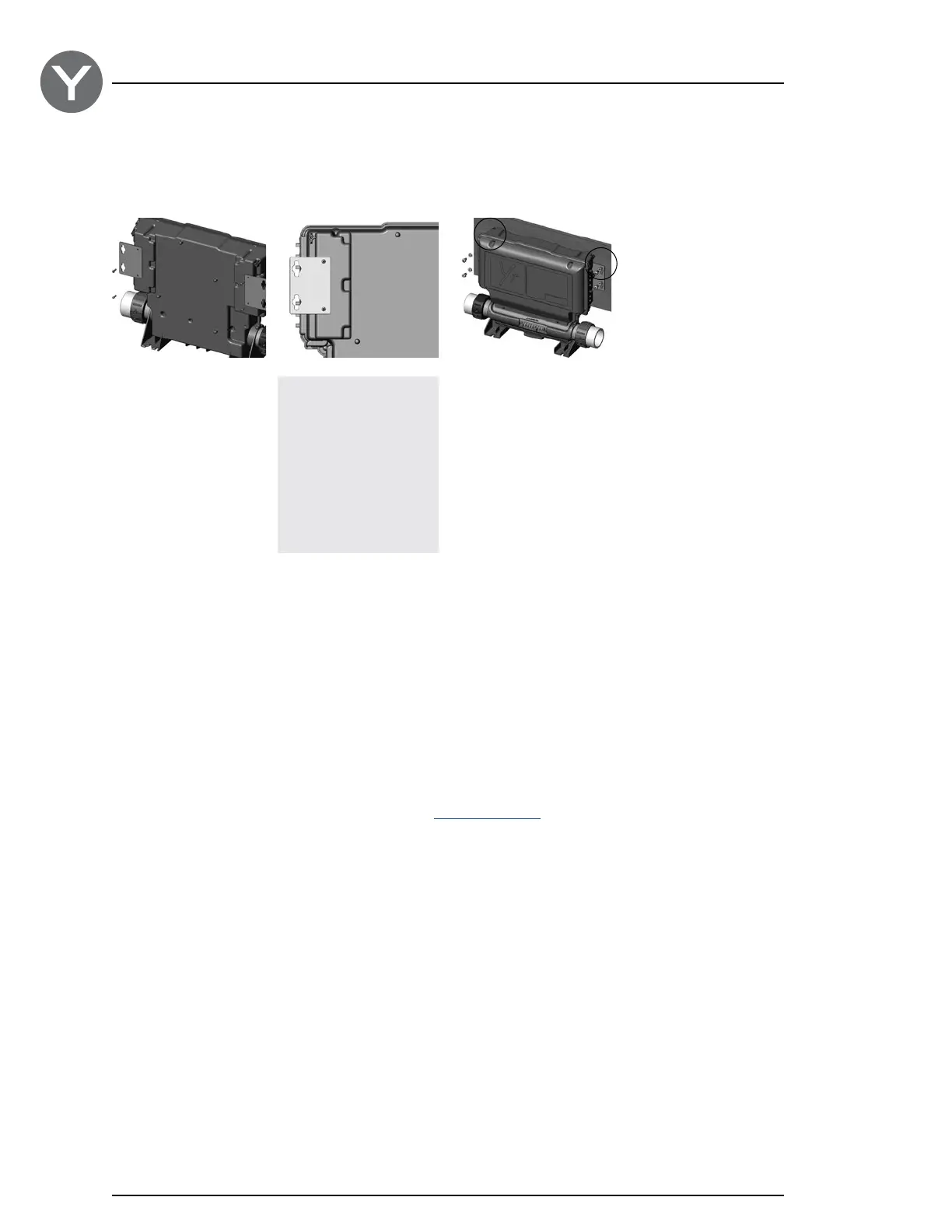

Wall installation procedure with optional wall mounting brackets
Keypad installation
Part number:
Wall mount bracket kit
100 pcs - 9920-101474
(with 200 screws to attach
to pack)
Installation
