14

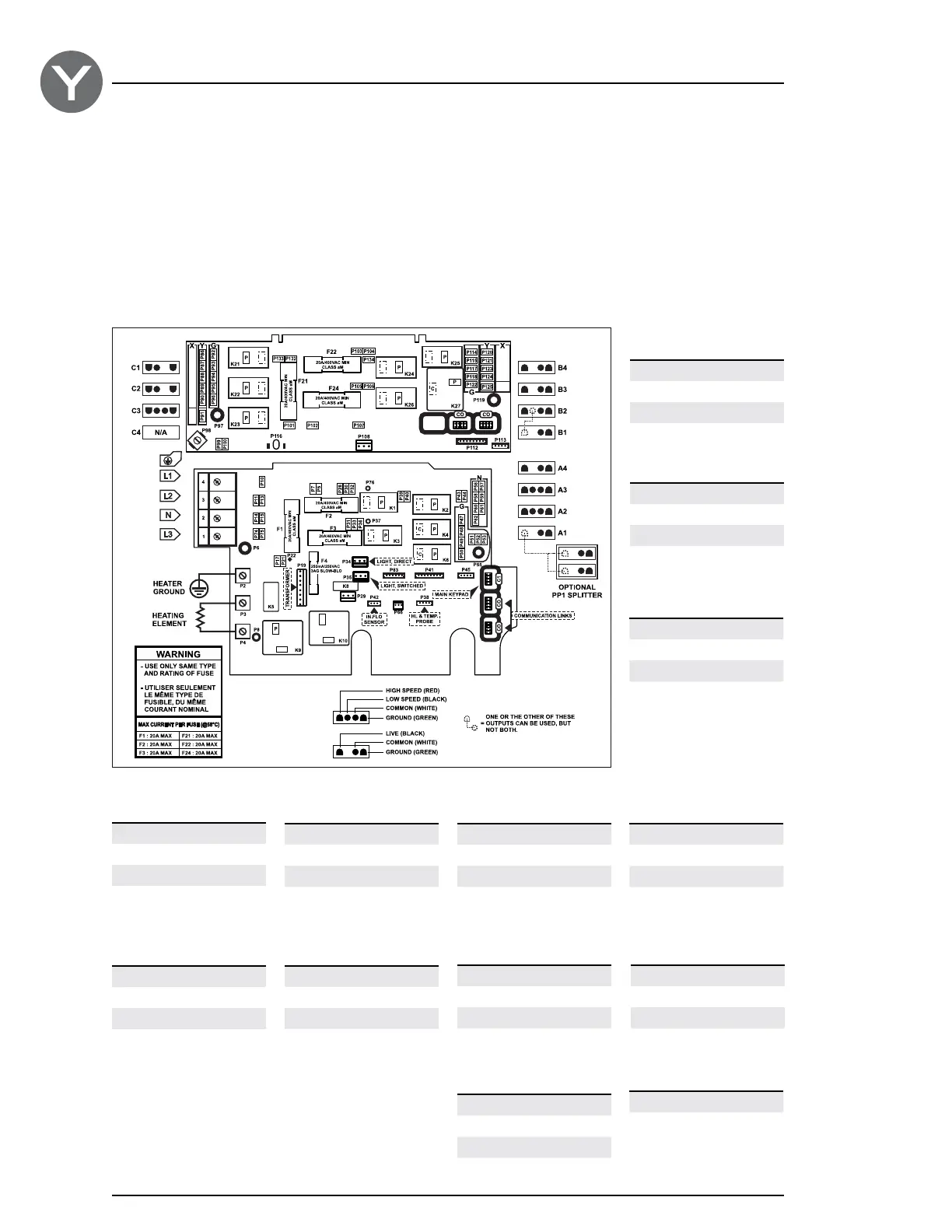

Connecting high voltage accessories: European model in.yt
For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick
connect terminals, straight and non-insulated for all types of connections, including the ground� Only 230 V accessories
may be connected to the corresponding terminals of the printed circuit of the in�yt� Refer to the following tables for
correct connections� Note that all female terminals must be correctly and completely seated on the printed circuit
terminals for proper current ratings�
This table shows typical connections� OEMs may have a different connection scheme�
Connections
Direct output 1 (A4)
Voltage 230 V
Green / ground P48
Black / line P32
White / common P57
Direct output 2 (C1)
Voltage 230 V
Green / ground P92
Black / line P132
White / common P86
Auxiliary (B1)
(in.yt-12-ce only)
Voltage 230 V
Green / ground P118
Black / line K26-P
White / common P124
Pump 1 (A3)
Voltage 230 V
Green / ground P49
Black / low speed K2-P
Red / high speed K1-P
White / common P58
Pump 2 (A2)
Voltage 230 V
Green / ground P50
Black / low speed K6-P
Red / high speed K3-P
White / common P59
Pump 3 (C3)
Voltage 230 V
Green / ground P94
Black / low speed K22-P
Red / high speed K21-P
White / common P88
Pump 4 (B2)
(in.yt-ce only)
Voltage 230 V
Green / ground P117
Black / low speed K26-P
Red / high speed K27-P
White / common P123
Pump 5 (B3)
(in.yt-12-ce only)
Voltage 230 V
Green / ground P115
Black / line K24-P
White / common P121
Blower (B4)
(in.yt-12-ce only)
Voltage 230 V
Green / ground P114
Black / line K25-P
White / common P120
Circulation pump (C2)
(in.yt-12-CE)
Voltage 230 V
Green / ground P93
Black / line K23-P
White / common P87
Circulation pump (C2)
(in.yt-7-CE)
Voltage 230 V
Green / ground P93
Black / line K22-P
White / common P87
Ozonator (A1)
Voltage 230 V
Green / ground P51
Black / line K4-P
White / common P60
Light (12 V AC, 1A Max.)
Always on P34
Relay P35
