Gecko in.ye-3 User Manual

16
in.yt-12
Output 14
Di 2
Blower
Output 13
Di 1 (120 V)
CP P5 (1-speed)
P1 (2-speed)
P3 (2-speed)
P4 (2-speed)
see note
P2 (2-speed)
AUX 1
O3
Output 11
Output 7
Output 12
Output 2
(Output 4 on CE)
Output 5
Output 8
Output 9
Output 1
Output 6
Output 10
Output 3
Output 10
Output 4
(Output 2 on CE)
Note: If P4 2 speed is used, AUX 1 can not be used�
P1 (2-spd)
C2 CP
C3 P3
(2-spd)
P5 (1-spd)
Di 1 (120 V)
C1 Di 2
Blower
P2 (2-spd)
P4 (2-spd)
O3
A1
(240 V)
C1
B4
A4
B4
B3
B2
B1
A1
A2
A3
A4
B3
A3
B2
A2
B1
A1
C2
C3

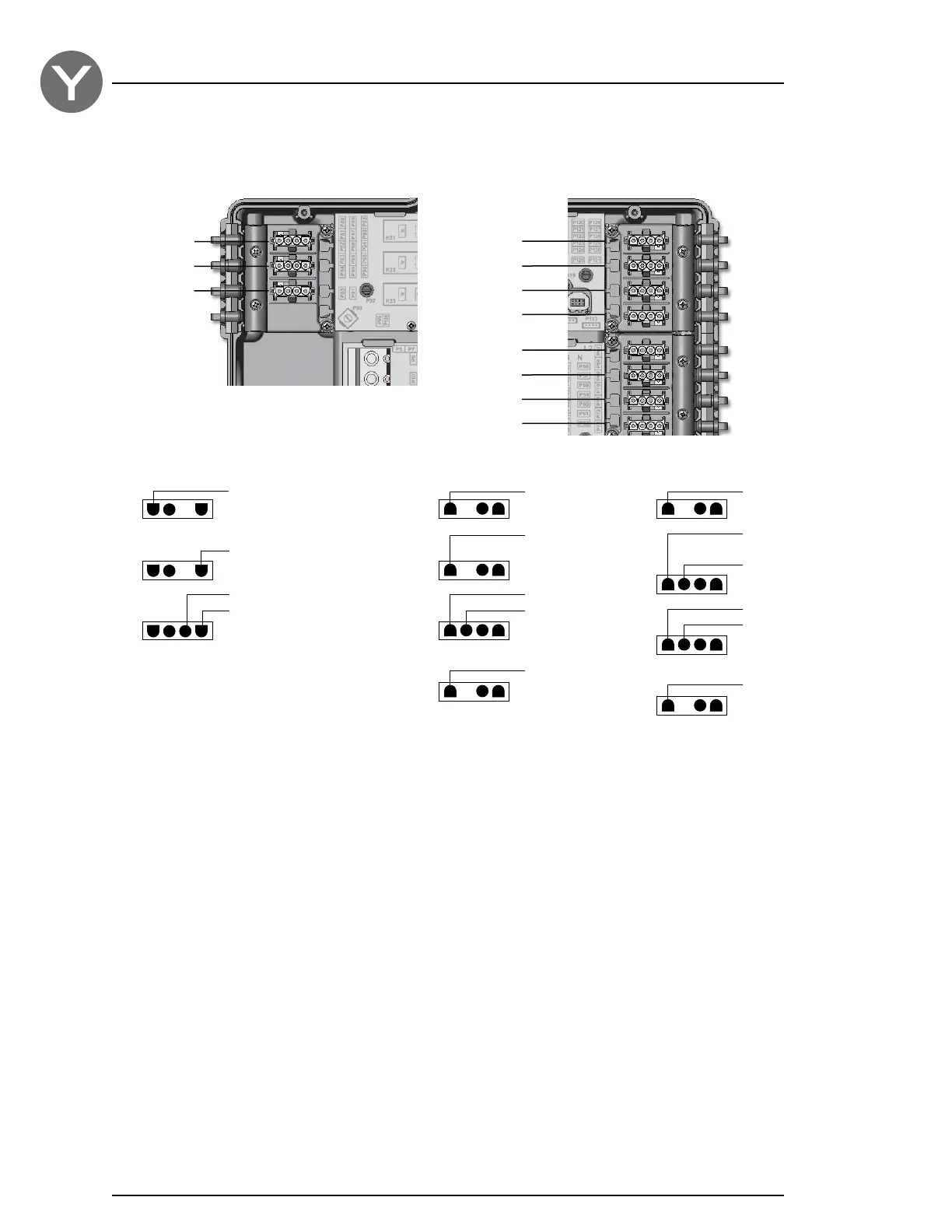

Connections

Gecko in.ye-3 Specifications

General

Brand	Gecko
Model	in.ye-3
Category	Spa Accessories
Language	English
