Notice
Battery ground strap should be
disconnected during servicing.
Turn off the light switch and cool
the bulb before replacing the bulb.
When installing the new bulb, do
not have your naked hand touched by the
glass bulb.
After halogen bulb (headlight and
front fog light) is befouled by the oil, its
lifetime will be shortened by the heat gen-
erated when the light is turned on.
Since there is very high pressure
in the halogen bulb (headlight and front
fog light), you have to operate it carefully,
once the bulb is dropped, it will explode
and splash the glass splinters.
When it is replaced, always use the
bulb of same power and model.
After the bulb is installed, you
have to fasten the socket.

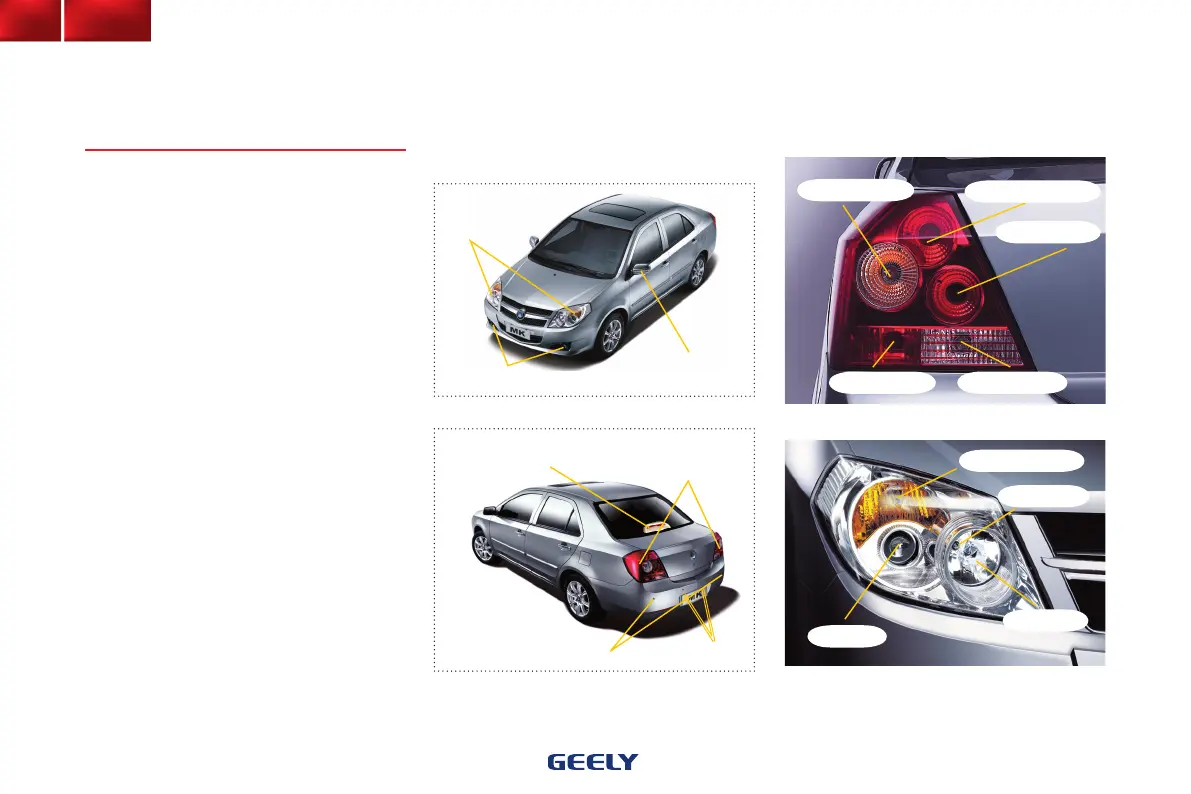

The location of the exterior illumination and sig-
nal system is shown in the following illustration:
front combina-
tion light
side turn light
front fog light
high-mounted
stop light
rear combina-
tion light
rear retroreector license light
position light
Stop Light
turn signal light
back-up light
position light
high beam
low beam
stop/position light
rear fog light
turn signal light
