ADL300-EPCv2- User Guide Page 6 of 64
1. INSTALL THE APPLICATION
1.1 General Information
This section describes a standard application commissioning procedure.
The preliminary operations for commissioning ADL300 drives are described in chapter 8 of the “ADL300
Quick Start Guide".
1.2 Requirements
The EPC application for ADL300 requires firmware version 2.00. or higher (Releases 1.x do not support the
EPC application).
To install the application you must have a PC, version 1.6.5 or higher of the Gefran GF_eXpress software
with Catalog, the RS-485 serial interface cable (cod 8S864C).
The application set-up file contains an automatic procedure that copies the required files in the specific
folders of the GF_eXpress catalog.
1.3 Preliminary operations
The EPC application is preloaded in the drive as Application 2 (refer to the menu parameter 4.5 PAR 558
Application sel).

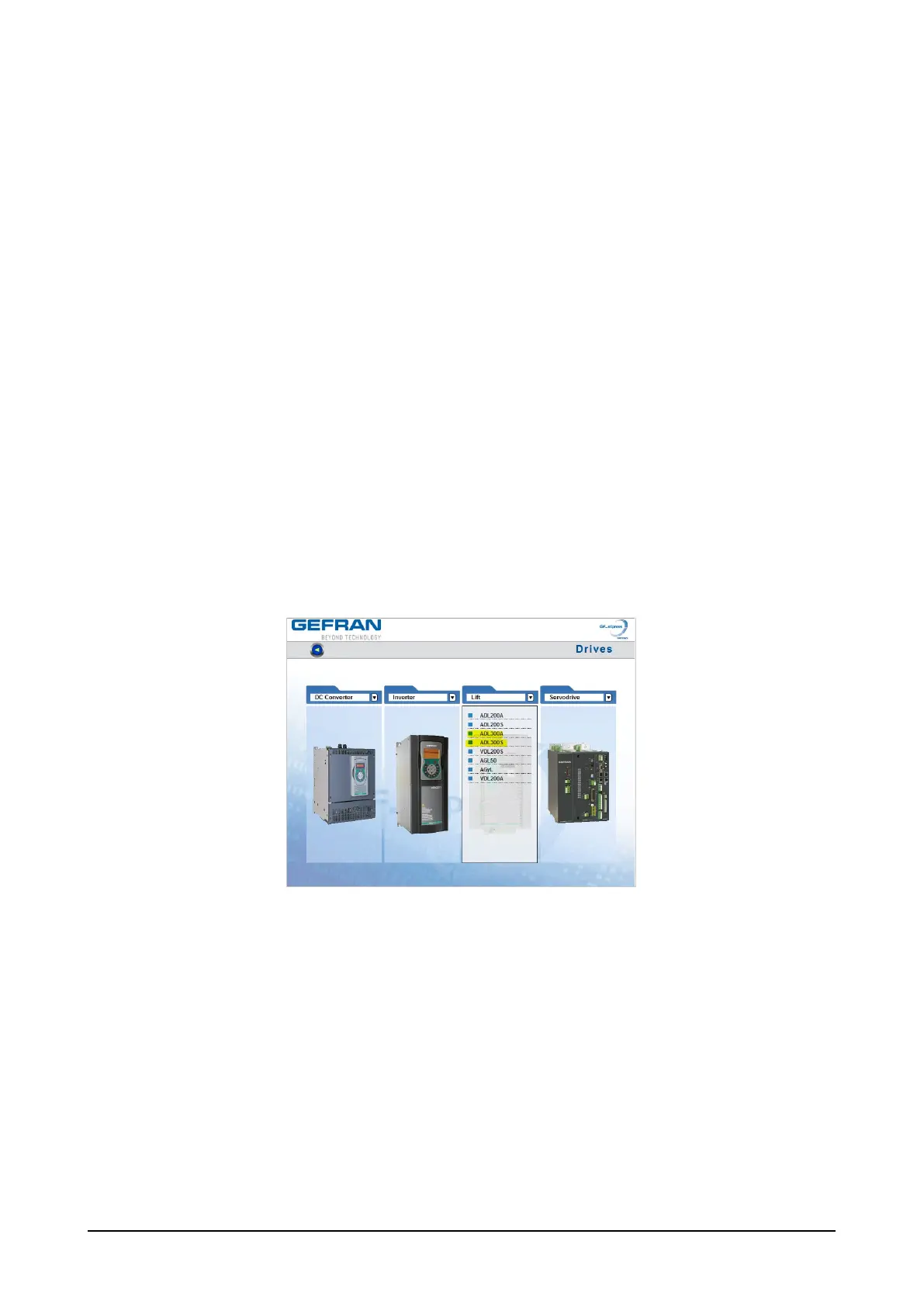

Once GF_eXpress is installed perform the following procedure:
• Select the ADL300A (Asynchronous) or ADL300S (Synchronous) Lift drive.
• Selezionare la versione dell’applicazione:
• ADL300S: 4.x.4 EPC 7.x.10.0 (EPC for Synchronous Motors)
• ADL300A: 4.x.4 EPC 7.x.10.0 (EPC for Asynchronous Motors)
