ADL300-EPCv2- User Guide Page 9 of 64

3. CONFIGURATION OF THE INTERNAL POSITIONING DEVICE (EPC)

3.1 Layout of cams

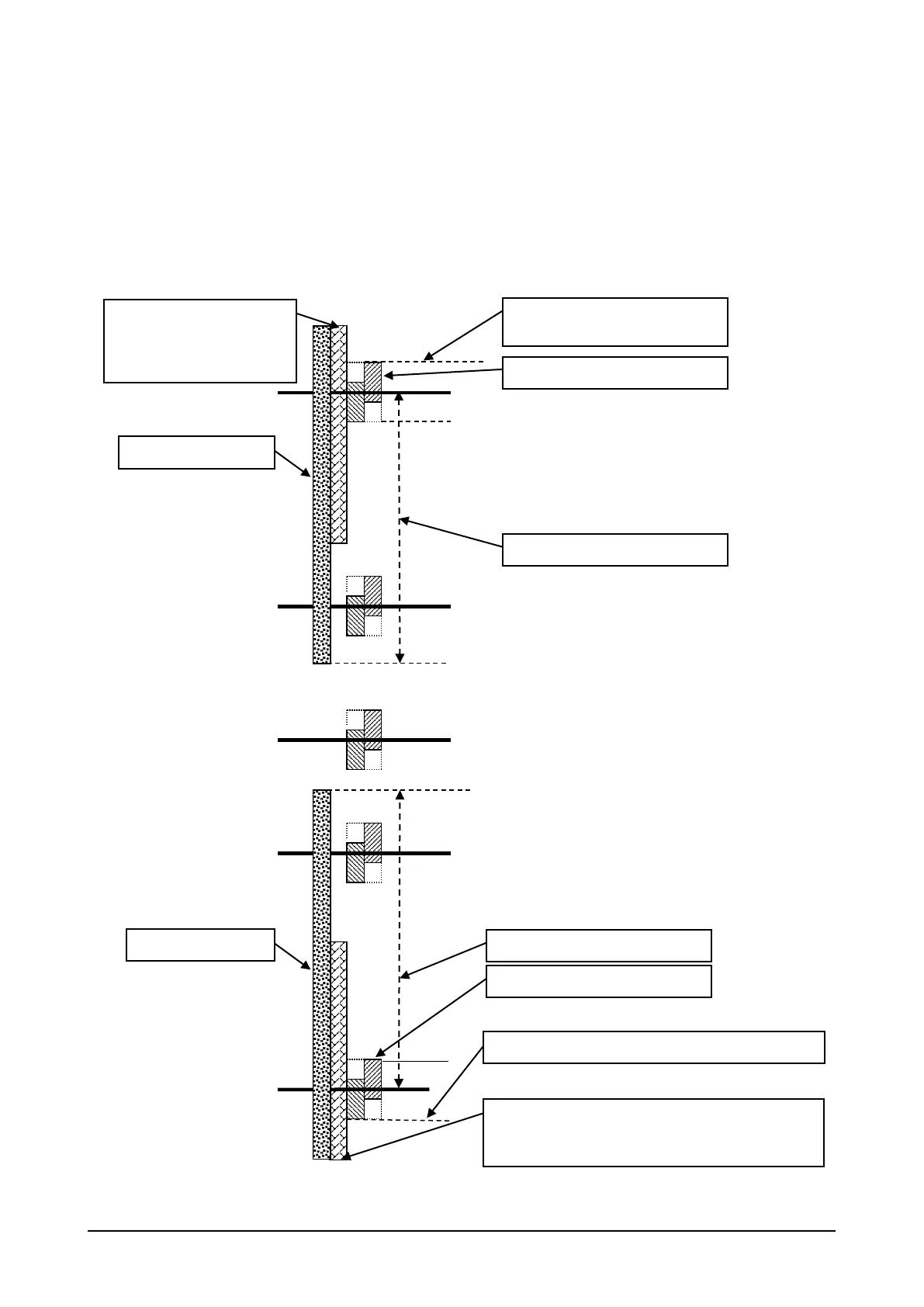

The floor management cams must be arranged as illustrated in the figure:

UpperLimit

There must only be one

landingZone cam

inside this area.

Maximum landing zone

Maximum lift travel limit.

Minimum landing zone

Minimum lift travel limit.

Deceleration zone

SlowUpperLimit

SlowLowerLimit

There must only be one landingZone cam

inside this area.
