ADL300 - Fast installations and commissioning Pag. 24 of 52

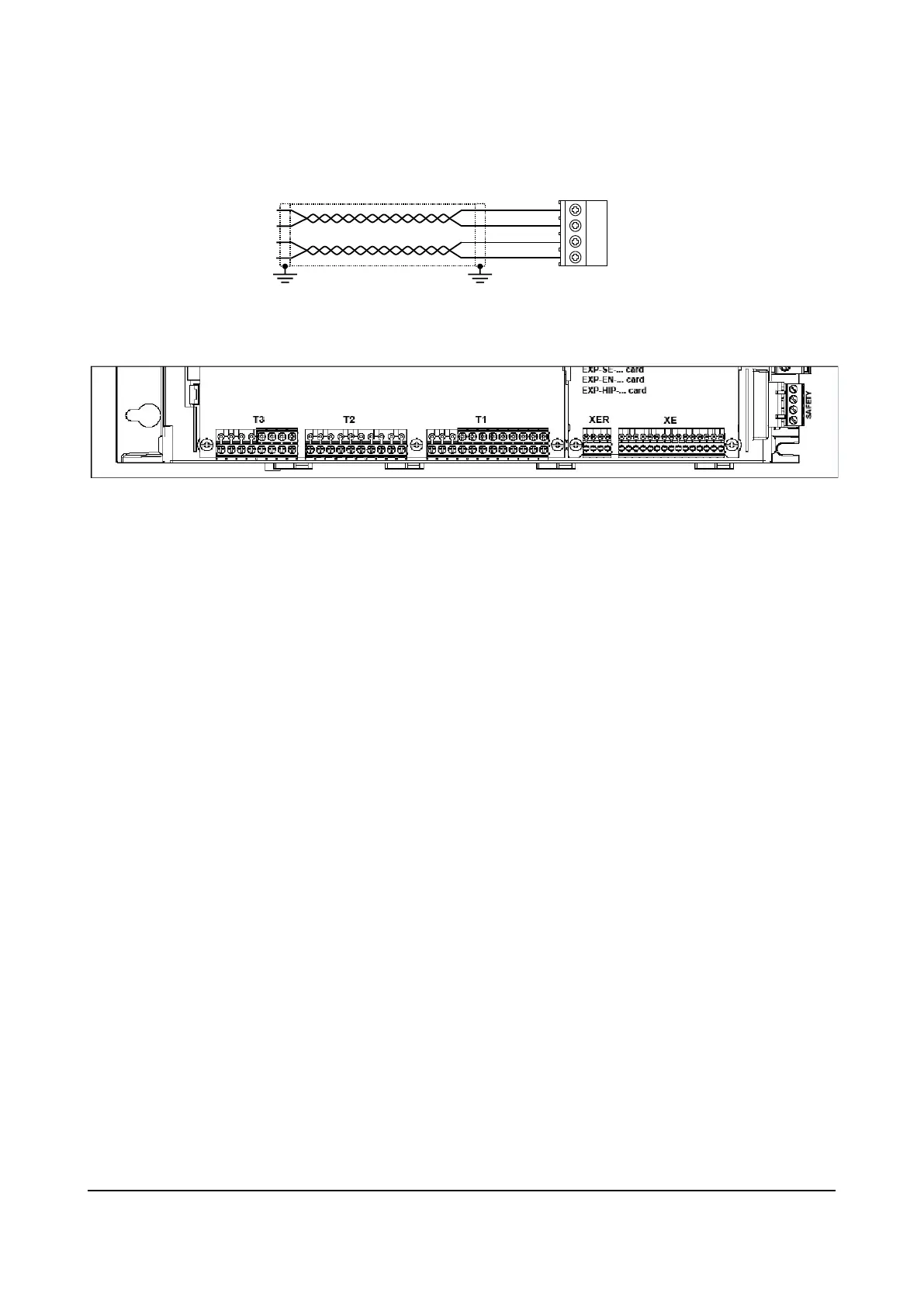

(8) Repeat Encoder (TTL line-driver)
ADL300B-...-E24R have an incremental encoder output with TTL Line Driver levels (according to the main encoder
supply) to be used to repeat the servomotor feedback device. This function is performed via HW and an encoder output
can be repeated with a programmable divider. The encoder output signals are available on the XER connector:
4.3.3 Integrated Safety Card Connection
The SAFETY EN+, SAFETY EN+, SAFETY OK1 and SAFETY OK2 terminals must be connected as shown in the typical
connection diagrams in chapter 4.1.
Safety card management is now integrated in the firmware.
The Safety card must be enabled to enable the drive (menu 9 - COMMANDS, PAR 1010 Commands safe start, Default
= 1).
The drive is disabled if the Safety card enable command is removed while it is enabled.
To re-enable the drive, re-enable the Safety card then remove and re-send both the Enable and Start commands.
20
21
22
23
B- out
B+ out
A- out
A+ out
(*)
XER
