ADL300 - Fast installations and commissioning Pag. 33 of 52

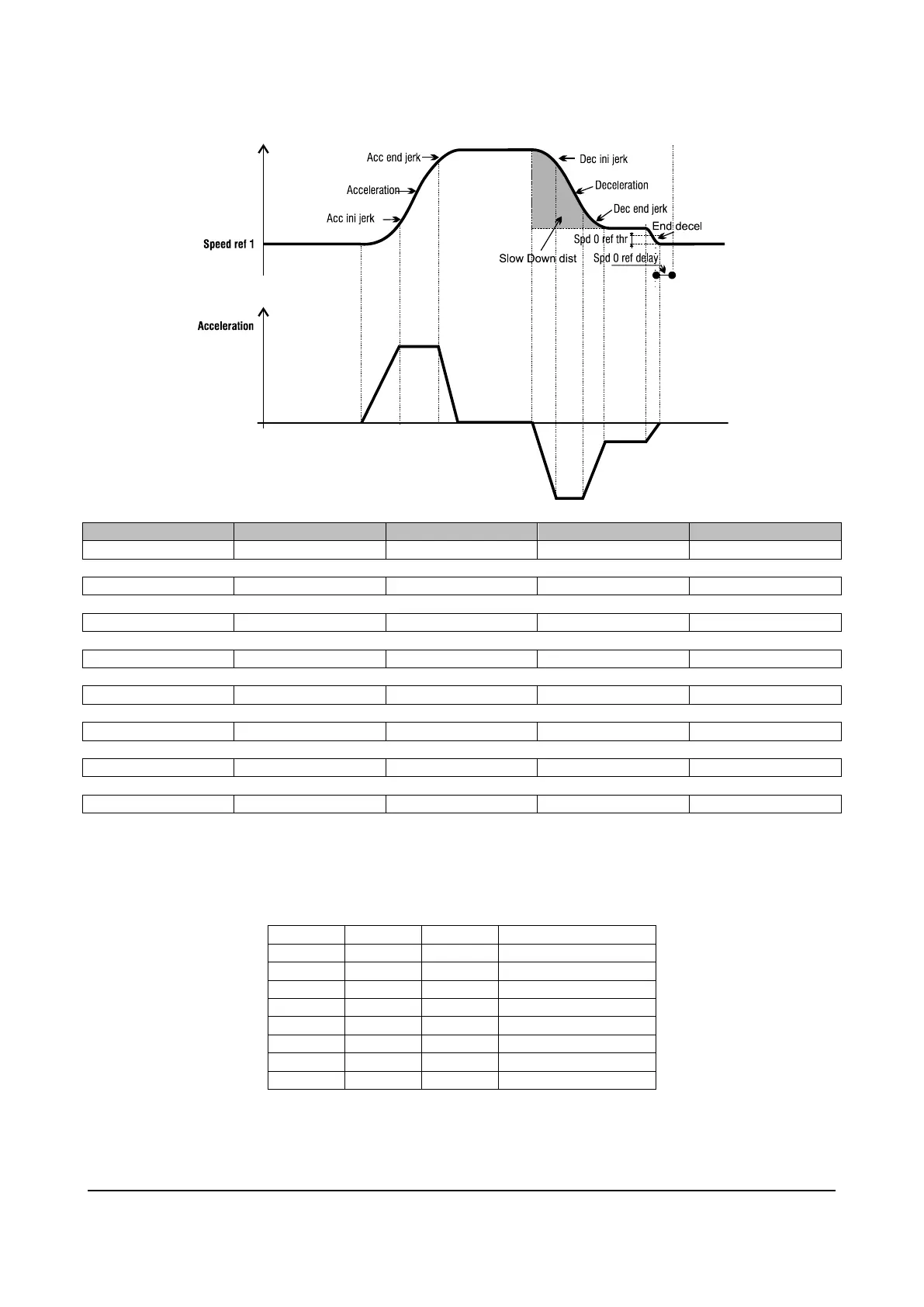

6.5 Ramps Acceleration and Jerks
Menu
Parameter
Description
Default Value
Set to
5.2.1
11040
Acc ini Jerk
0.50
5.2.2
11042
Acceleration
0.60
5.2.3
11044
Acc end Jerk
1.40
5.2.4
11046
Dec ini Jerk
1.40
5.2.5
11048
Deceleration
0.60
5.2.6
11050
Dec end jerk
0.50
5.3.8
11078
Speed 0 threshold
1,00 rpm
5.3.9
11080
Speed 0 delay
400 ms
Multi speed configuration table
Through the combination of “MtlSpd S0” (Digital input 4), “MtlSpd S1” (Digital input 5) and “MtlSpd S2” (Digital input 6)
commands, is possible to select Multi speed desired, according to next table:
MtlSpd S2
MtlSpd S1
MtlSpd S0
ACTIVE SPEED
0
0
0
Multispeed 0, PAR 11020
0
0
1
Multispeed 1, PAR 11022
0
1
0
Multispeed 2, PAR 11024
0
1
1
Multispeed 3, PAR 11026
1
0
0
Multispeed 4, PAR 11028
1
0
1
Multispeed 5, PAR 11030
1
1
0
Multispeed 6, PAR 11032
1
1
1
Multispeed 7, PAR 11034
