gefran ADL300 User Manual

ADL300 - Fast installations and commissioning Pag. 32 of 52
To check the speed that the car is travelling see parameter:
Menu
Parameter
Description
Default Value
Status
5.1.11
12210
Actual Speed ref
Travelling speed
The controller communicated the travelling speed to the drive by 3 digital inputs.
Menu
Parameter
Description
Default Value
Set to
5.7.4
11226
Multi speed S0 sel
Digital Input 4
Menu
Parameter
Description
Default Value
Set to
5.7.5
11228
Multi speed S1 sel
Digital Input 5
Menu
Parameter
Description
Default Value
Set to
5.7.6
11230
Multi speed S2 sel
Digital Input 6
The conversion table is the following:
Multi speed S2 sel
Multi speed S1 sel
Multi speed S0 sel
ACTIVE RAMP REF
0
0
0
Multi speed 0
0
0
1
Multi speed 1
0
1
0
Multi speed 2
0
1
1
Multi speed 3
1
0
0
Multi speed 4
1
0
1
Multi speed 5
1
1
0
Multi speed 6
1
1
1
Multi speed 7

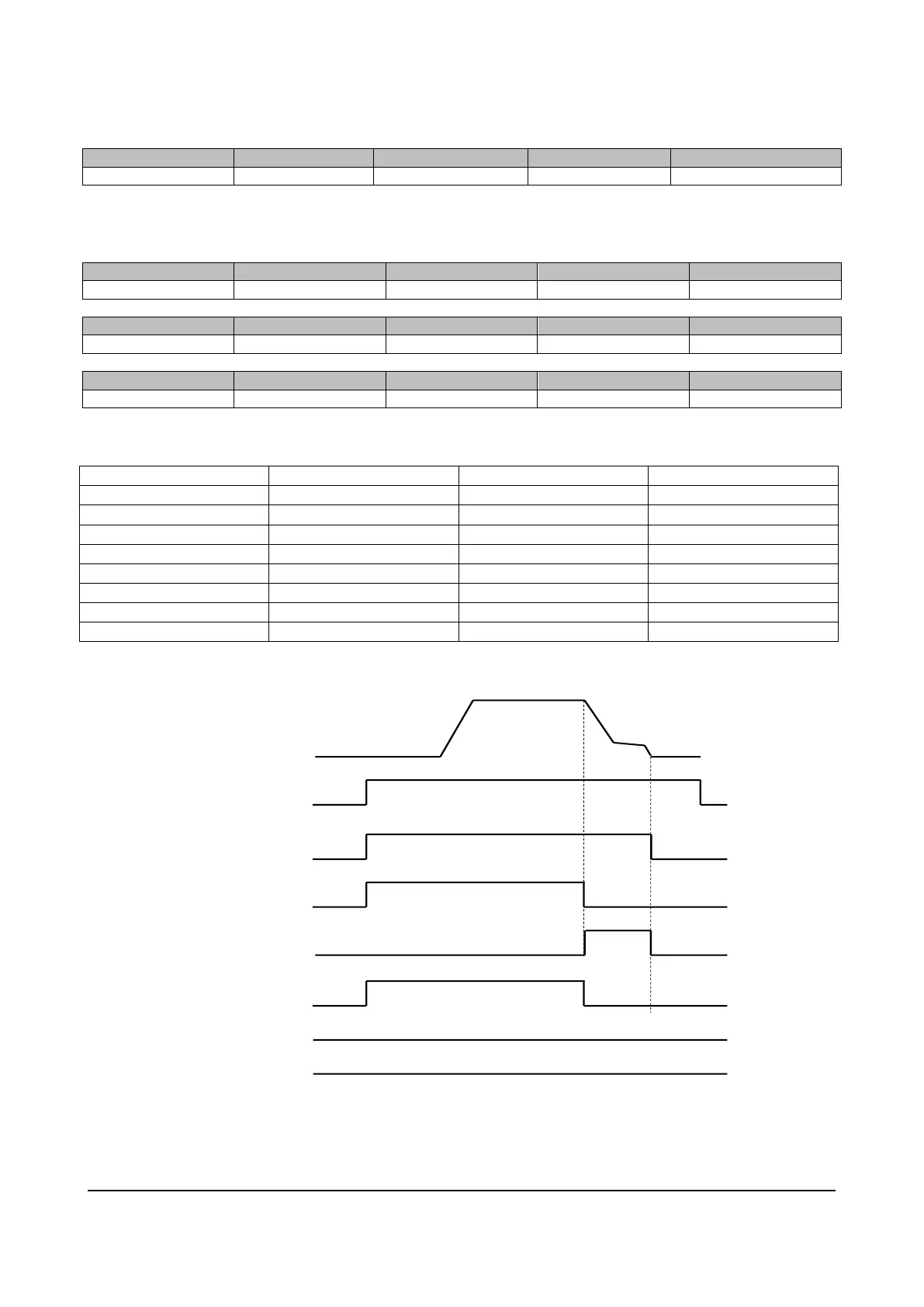

Hereafter an example of elevator working in two speeds:
Speed
Enable
Start FWD /
Start Rev
Multispeed 1
Slow Down
(Multispeed 0)
Mtl Spd sel 0 src
Mtl Spd sel 1 src
Mtl Spd sel 2 src
