gefran ADL300 - Motor and Braking Resistor Connections

ADL300 - Fast installations and commissioning Pag. 16 of 52

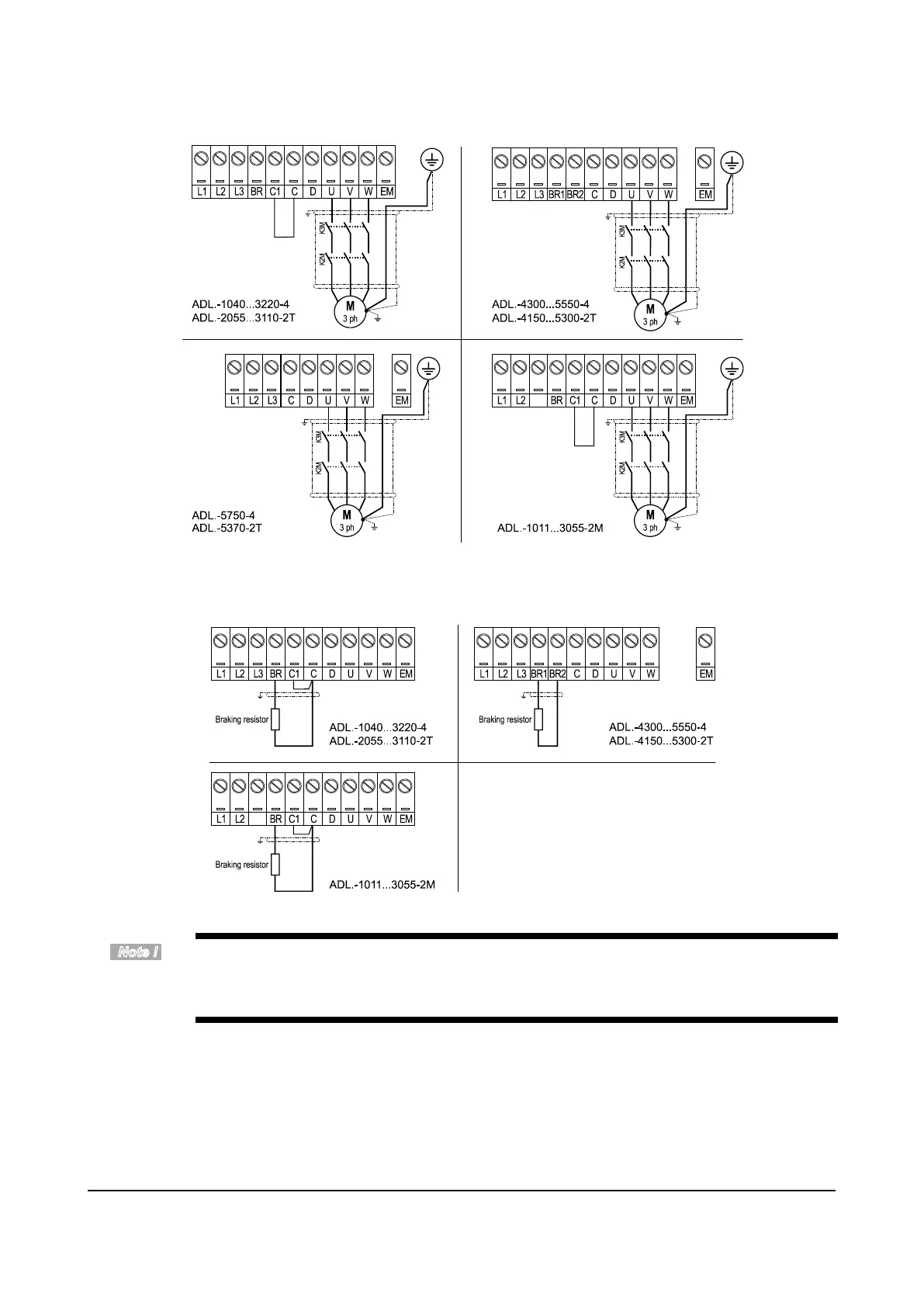

4.2.6 Motor connection
4.2.7 Connection of braking resistor (optional)
Recommended combination braking resistors: see paragraph 5.4 of ADL300 QS manual (code 1S9QSEN).
For sizes 5750 and 5370 an optional external BUy braking unit can be used and connected to terminals Cand D. Refer to the BUy handbook for
further information.
