ADL300 - Fast installations and commissioning Pag. 20 of 52

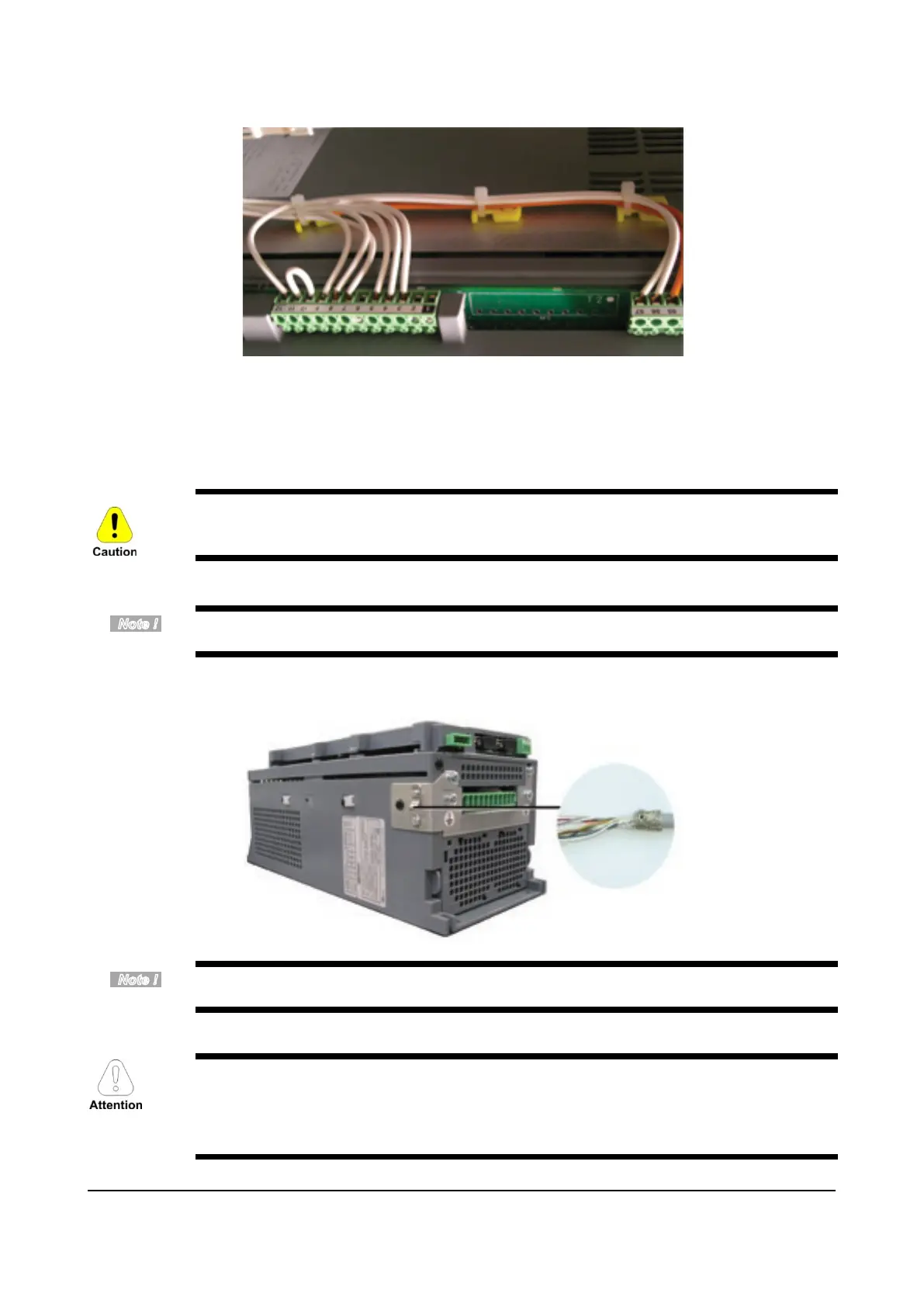

Figure 4.3.3: Recommended card wiring
4.3.2 Feedback Connection
This section describes the feedback connections for the ADL300B series.
For the ADL300A series, see section A3 of the Appendix (ADL300 QS manual, code 1S9QSEN).
The names of the terminals and of the relative connection differs for the various card versions.
For more information see section A3 of the Appendix (ADL300 QS manual, code 1S9QSEN).
All terminal boards are extractable.
Figure 4.3.4: Connection of shielding (recommended)
The indicated connection is not valid for ADL300B-...-AD1: in this model, the shield must be connected to the VGA connector shell.
Connections for the most common encoder types are shown below. For Technical data refer to ADL300 QS
manual section 7.2.3.
See the table on page 14 of ADL300 QS manual (code 1S9QSEN) to check which encoders can be
connected to your model ADL300B.
