gefran ADL300 User Manual

ADL300 - Fast installations and commissioning Pag. 19 of 52

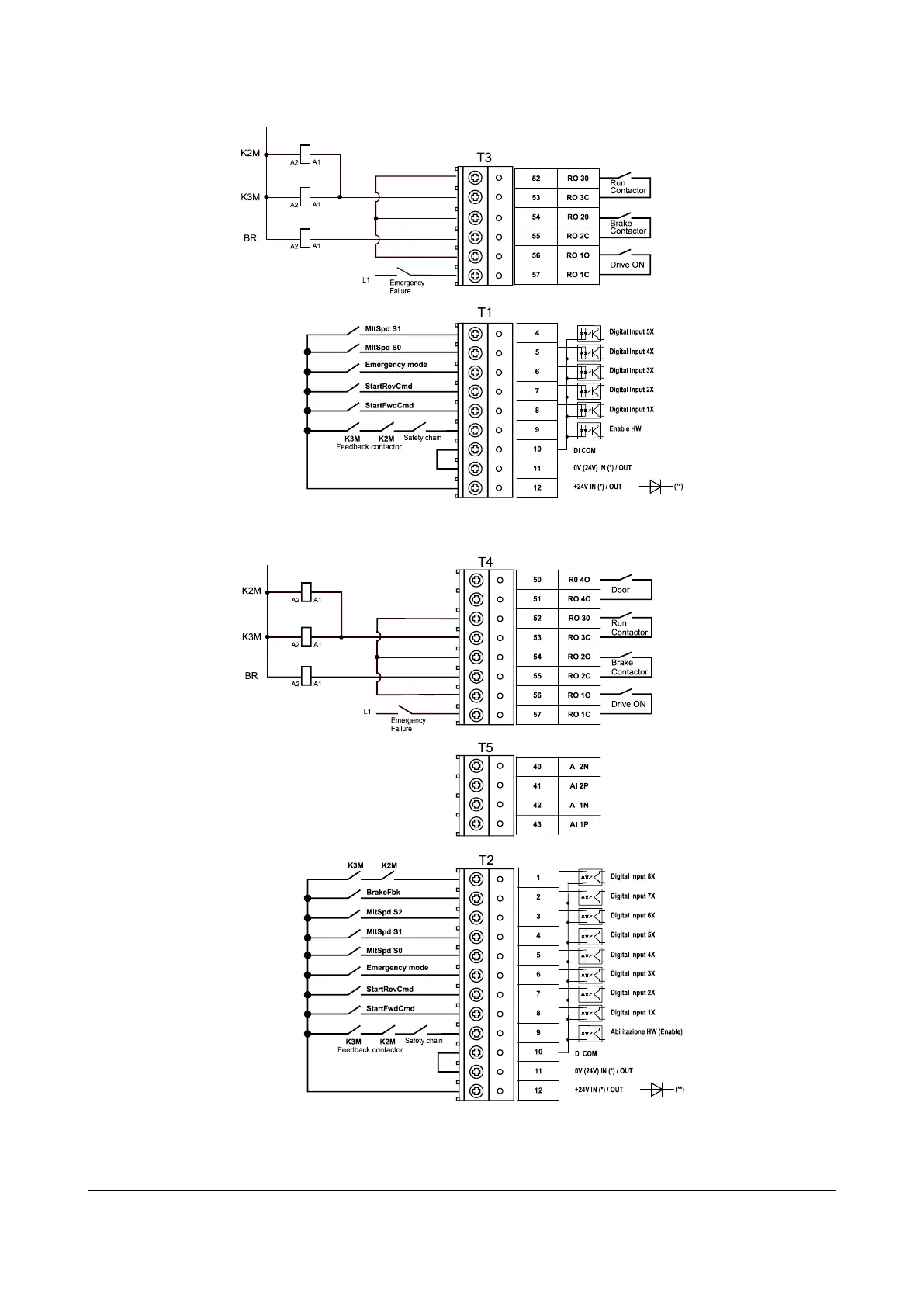

Figure 4.3.2-B: terminal strip and connection ADL300B-2M
Figure 4.3.2-C: terminal strip and connection ADL300B-...-AD1
(*) Standard = +24V OUT; +24V IN/OUT versions on request;
(**) Cards with +24V external power supply (+24V IN/OUT versions) must be separated from the external power supply with an external diode. Check
if the diode is already present on the external power supply.
