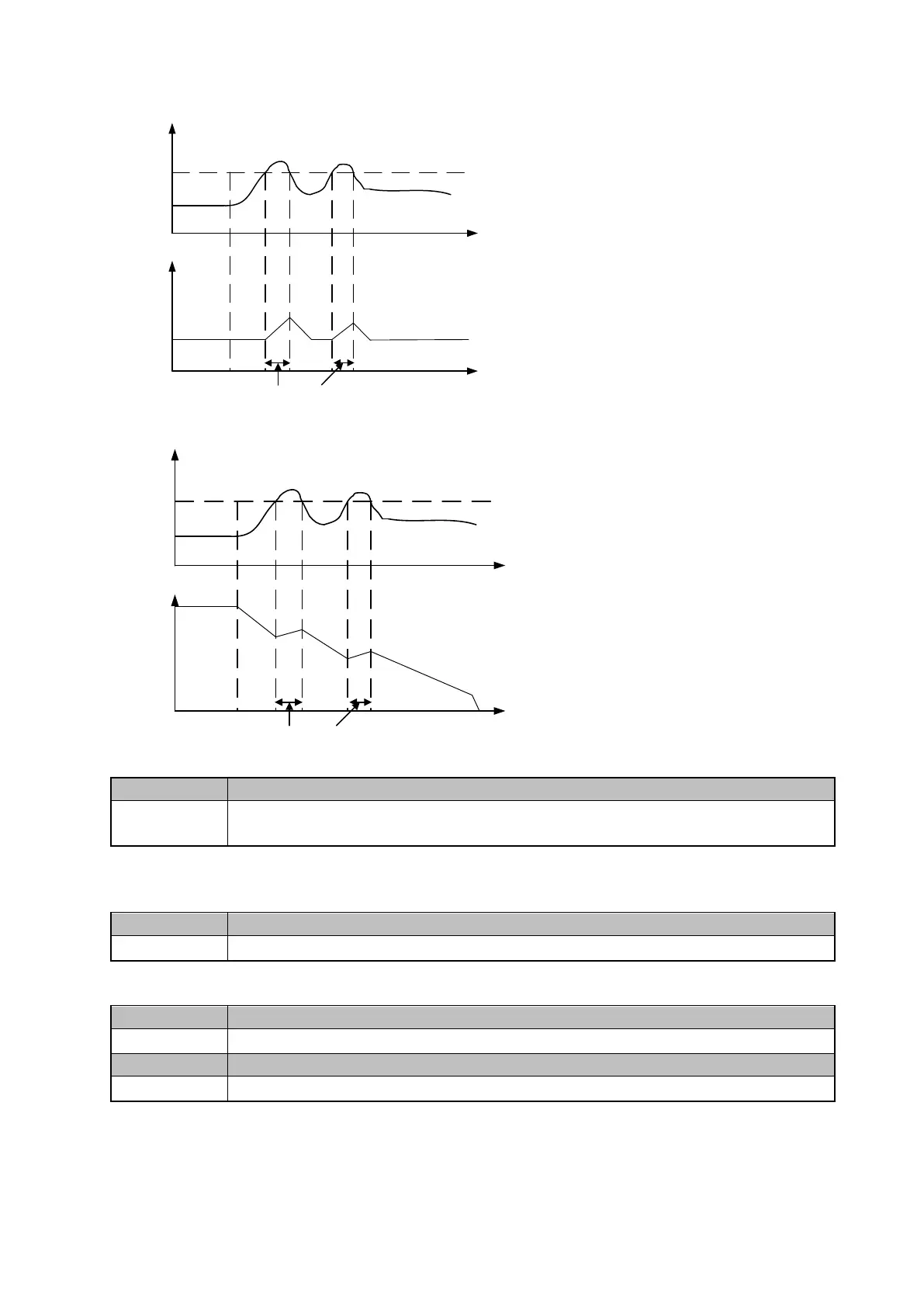

Example: Regeneration prevention during constant speed.
Set value of 11-14
t
t
Regeneration prevention at work
Vpn(DCV)
Output
frequency
（Hz）
Example: Regeneration prevention during deceleration.
t
t
Vpn(DCV)
Output
frequency
（Hz）
Set value of 11-14
Regeneration prevention at work
11-14
Regeneration Prevention Voltage Level
Range
200V: 300.0~400.0 V
400V: 600.0~800.0 V
 Regeneration prevention voltage level: if the DC bus voltage level is set too low, then
over-voltage protection will not be reached, but the actual deceleration time will be
extended.
11-15
Regeneration Prevention Frequency Limit
Range
【0.00~15.00】Hz
 Sets the regeneration prevention frequency limit.
11-16
Regeneration Prevention Voltage Gain
Range
【0~200】%
11-17
Regeneration Prevention Frequency Gain
Range
【0~200】%
 Parameters 11-16 & 11-17 can be used to enhance the response of the regeneration
prevention control, Excessive adjustment could lead to output frequency instability.
 If decreasing the setting of parameter 11-16 is not correcting the output frequency instability
then try decreasing the parameter 11-17.
