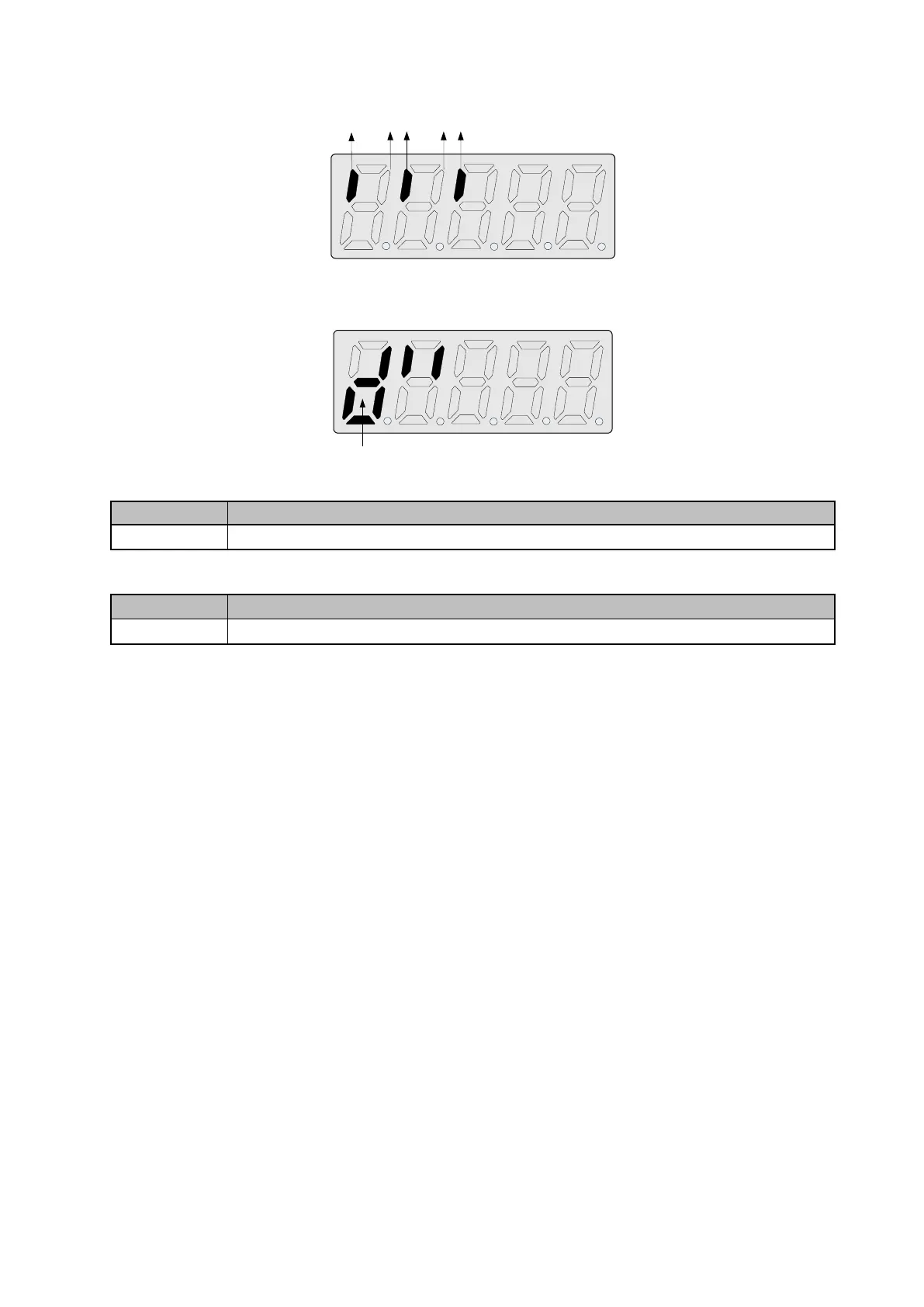

Example 1: The following figure shows 12 - 05 display status,
when S1, S3, S5 Inputs are ON and S2, S4 and RY1 are OFF.
S
1
S
2
S
3
S
4
S
5
Example 2: The following figure shows 12 - 05 display status
when S2, S3, S4 inputs are ON and S1, S5 are OFF but RY1 is ON.
RY1
12- 06
Output Power
Range
----
 It needs to set motor rated power correctly (parameter 02-05)
12- 07
Motor Current Percentage
Range
----
 The ratio of drive output current and motor rated current, it needs to set motor rated
current correctly (parameter 02-01)
