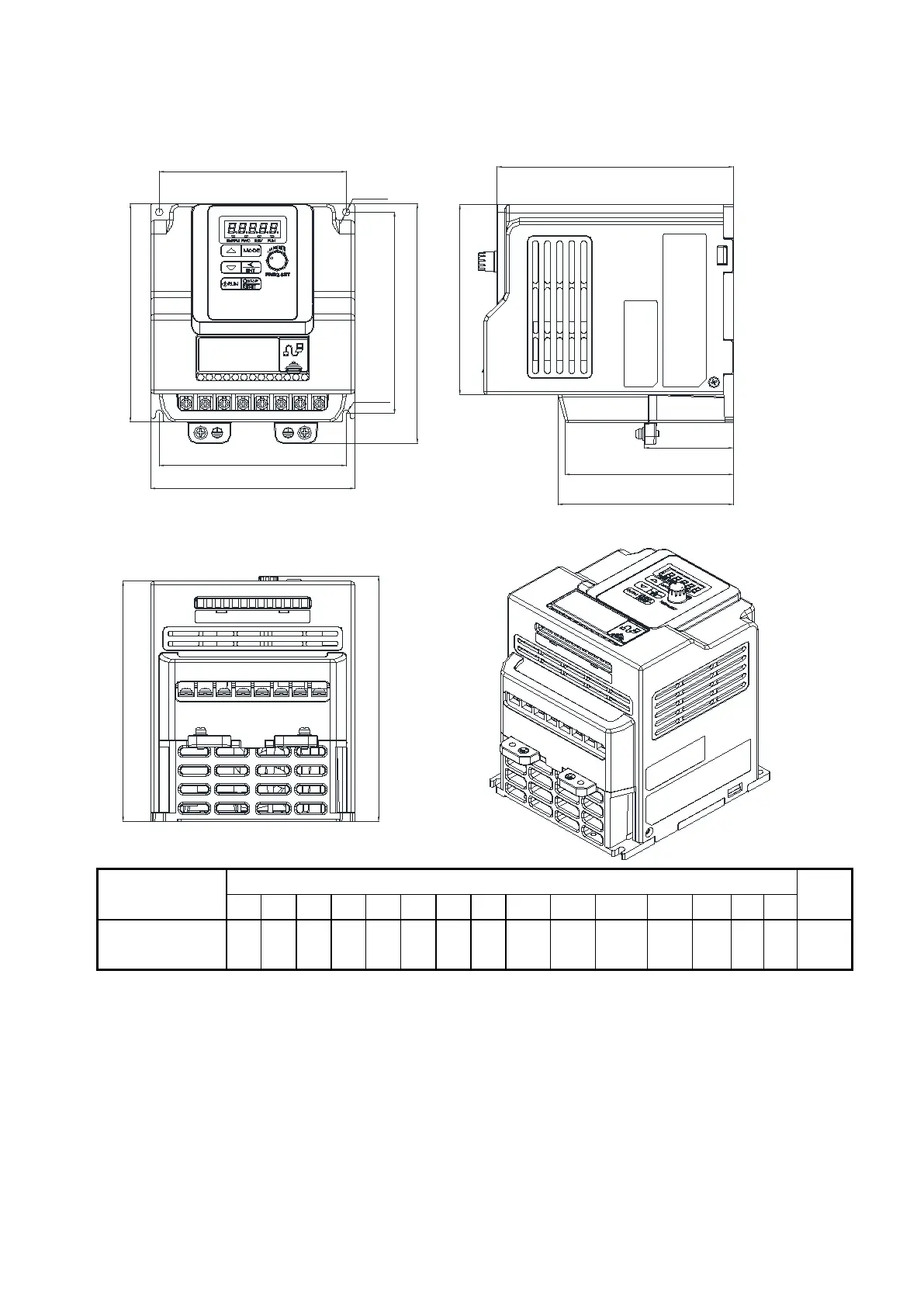

gefran BDI50 Series

3-34
Size 2 400V
D1
D
W1
H
H1
H2
H3
W
W2
D2
E
E1
E2
2-Q1
2-Q2
Model
Dimension (mm)
Weight
(kg)
W W1 W2 H H1 H2 H3 D D1 D2 E E1 E2 Q1 Q2
BDI50-2007-…-4
BDI50-2015-…-4
BDI50-2022-…-4
118 108 108 144 131 121 114 150 144.2 136.4 101.32 96.73 51.5 4.3 2.2
1.4
(1.5*)
* : With Built-in EMC filter
