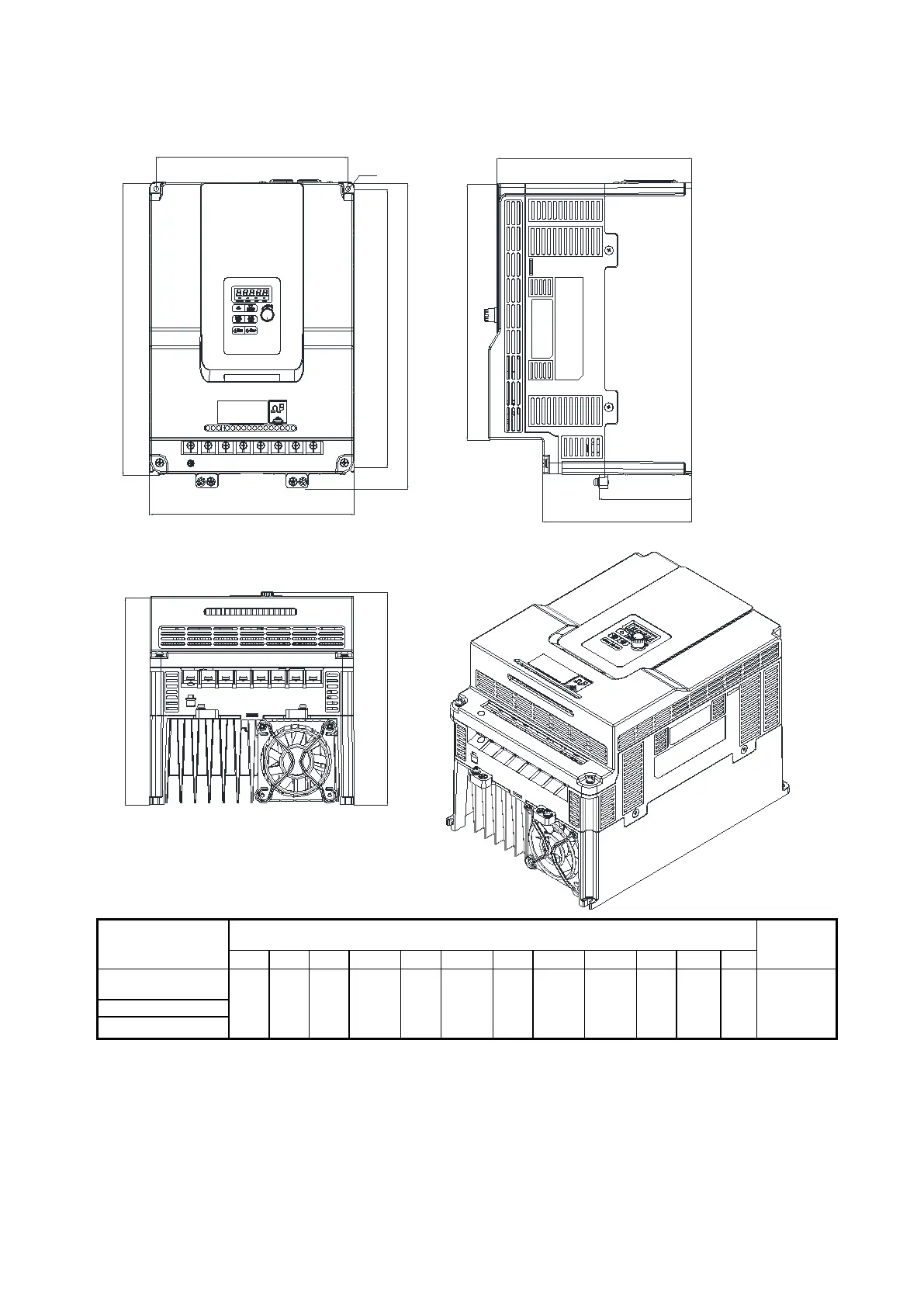

Size 4
W1
H1
D
W
D2
E
E1
D1
H2
H
H3
2-Q
Model
Dimension (mm)
Weight
(kg)
W
W1
H
H1
H2
H3
D
D1
D2
E
E1
Q
BDI50-4055-…-2T
187 176 273 249.8 261 228.6 190 185.6 177.9 136 84.7 4.5 6.3* (6.3*)
BDI50-4075-…
BDI50-4110-…
* : With Built-in EMC filter
